DNS-6040M/DNS-6040 User’s Manual
82
has been resolved and the server has been restarted. However, in
the event that the system temperature rises too high and later
returns to normal, the excessive temperature warning indicator
will not automatically be turned off. The system administrator
must manually click the Event Reset button on this page to clear
the LED indicator when he/she receives an email notice stating,
“temperature restored to normal”.

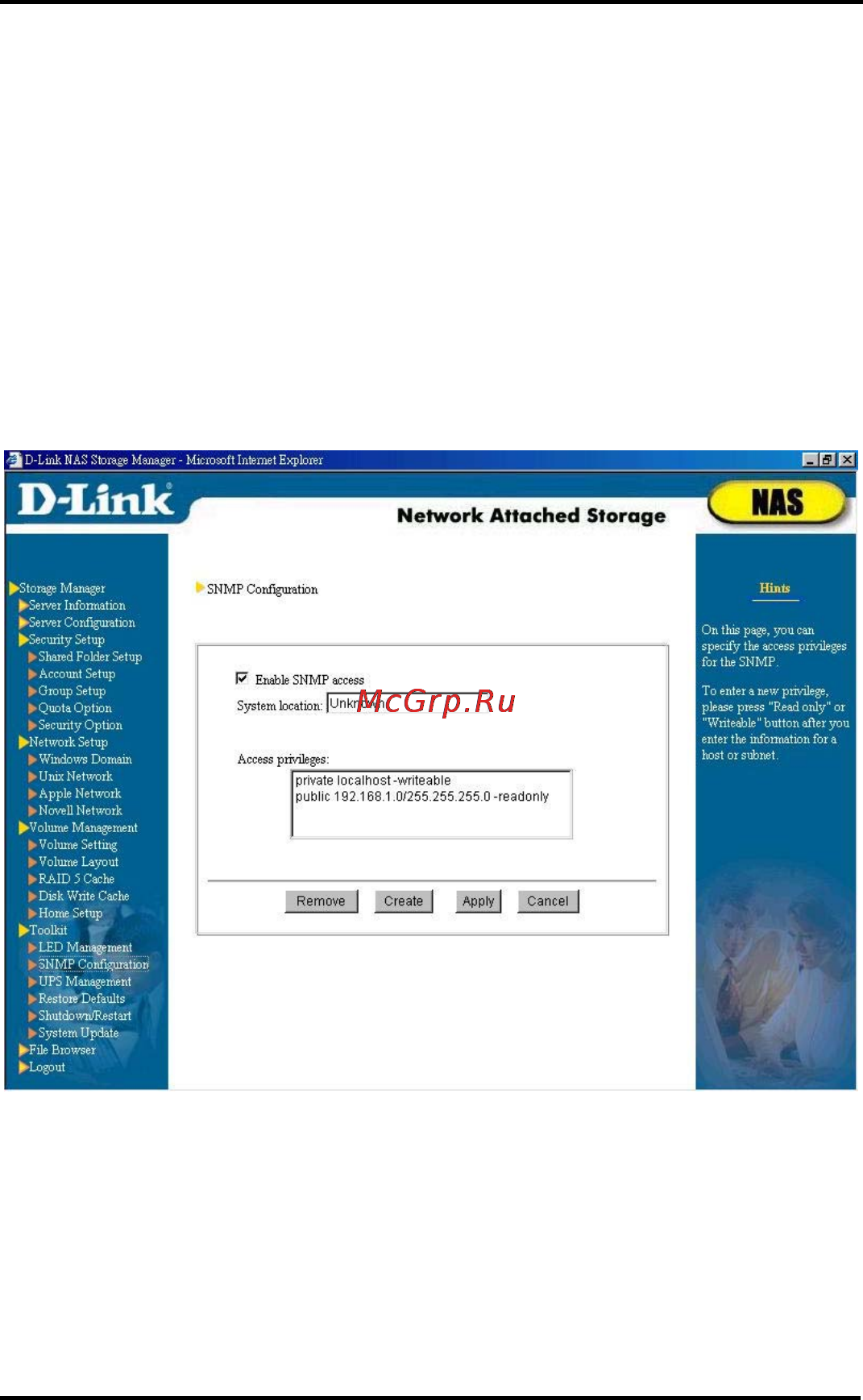

SNMP Configuration
Use this option to enable SNMP access. To do this, select
Enable SNMP access and in the column System location, enter
the geographical location of the NAS server; then click Apply.
Each entry in Access privileges
consists of three elements:
The first component is the community the NAS server belongs to, to
be chosen by the system administrator.
The second component is the host or subnet of this community
