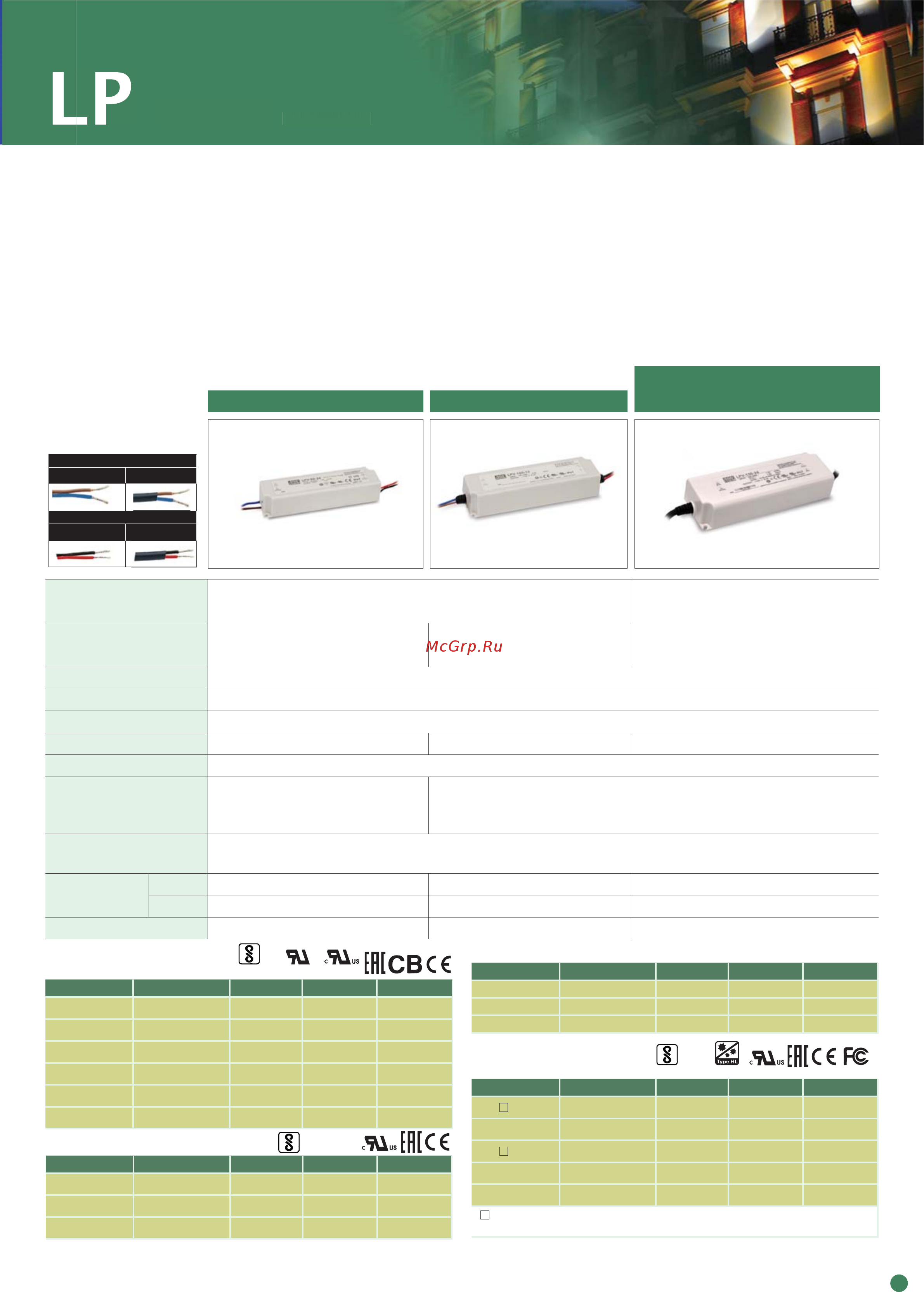

LPV-60 LPV-100
LPV-150
LPVL-150
INPUT
LPV-60/100 LPV/LPVL-150
OUTPUT
LPV-60/100 LPV/LPVL-150
10
Features
• Constant voltage mode
• LPV-60/100: 90~264VAC input
LPV-150: 180~305VAC input only
LPVL-150: 90~132VAC input only
• Withstand 300VAC surge input for 5 seconds (LPV-60/100)
• Fully encapsulated with IP67 level
• Isolation class II, no F.G.
• Class 2 power unit / Pass LPS (LPV-60-12/15/24/36/48 only)
AC input voltage range 90~264VAC; 127~370VDC
LPV-150: 180~305VAC; 254~431VDC
LPVL-150: 90~132VAC
AC inrush current (max.) Cold start, 60A at 230VAC Cold start, 75A at 230VAC
LPV-150: Cold start, 60A at 230VAC
LPVL-150: Cold start, 75A at 115VAC
Overload protection 110%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70
O
C -25~+70
O
C -25~+65
O
C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards
UL879 (except for LPV-60-5),
UL1310 (except for LPV-60-5),
EAC TP TC 004 approved
UL8750, UL879, EAC TP TC 004 approved;
Design refer to EN62368-1
EMC standards
EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020;
FCC part 15 for LPVL-150 only
Connection
Input UL rated, 18AWGx2C (60cm) UL rated, 18AWGx2C (30cm) UL rated, SJTW 18AWGx2C (30cm)
Output UL rated, 16AWGx2C (60cm) UL rated, 14AWGx2C (30cm) UL rated, SJTW 14AWGx2C (30cm)
Dimension (LxWxH)(mm) 162.5x 42.5x 32 190x 52x 37 191x 63x 37.5
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires (LPVL-150 only)
• Economic, high reliability
• Suitable for LED-based decorative/architectural lighting,
LED stage, theater lighting, and LED electronic displays
• Protections: Short circuit / Overload / Over voltage /
Over temperature (LPV-150, LPVL-150 only)
• 2 years warranty
LPV-60 Series
LPV-100 Series
LPV/LPVL-150 Series
Model No. Output Tol. R&N Effi.
LPV-60-5 5V, 0~8A ±8% 80mV 76%
LPV-60-12 12V, 0~5A ±5% 120mV 83%
LPV-60-15 15V, 0~4A ±5% 120mV 83%
LPV-60-24 24V, 0~2.5A ±5% 150mV 86%
LPV-60-36 36V, 0~1.67A ±5% 150mV 86%
LPV-60-48 48V, 0~1.25A ±5% 150mV 86%
Model No. Output Tol. R&N Effi.
LPV-100-5 5V, 0~12A ±8% 80mV 80%
LPV-100-12 12V, 0~8.5A ±5% 120mV 85%
LPV-100-15 15V, 0~6.7A ±5% 120mV 87%
Model No. Output Tol. R&N Effi.
LPV-100-24 24V, 0~4.2A ±5% 150mV 88%
LPV-100-36 36V, 0~2.8A ±5% 150mV 88%
LPV-100-48 48V, 0~2.1A ±5% 150mV 89%
Model No. Output Tol. R&N Effi.
LPV -150-12
12V, 0~10A ±5% 200mV 87%
LPV-150-15 15V, 0~8A ±5% 200mV 88%
LPV
-150-24
24V, 0~6.3A ±5% 200mV 89%
LPV-150-36 36V, 0~4.2A ±5% 200mV 89%
LPV-150-48 48V, 0~3.2A ±5% 200mV 90%
=Blank, L ;
Blank: AC input range 180~305VAC, L: AC input range 90~132VAC
(for 48V only) (for 12~36V)
Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.
(LPVL-150 only) (LPV-150) (LPVL-150)
s
e
r
i
e
s
60
~1
50
W
(for 12V, 12V Only)
(for 12V, 12V Only)
(for LPV-150-12, 24 Only)
