MEAN WELL CLG-150-20A [60/100] Series

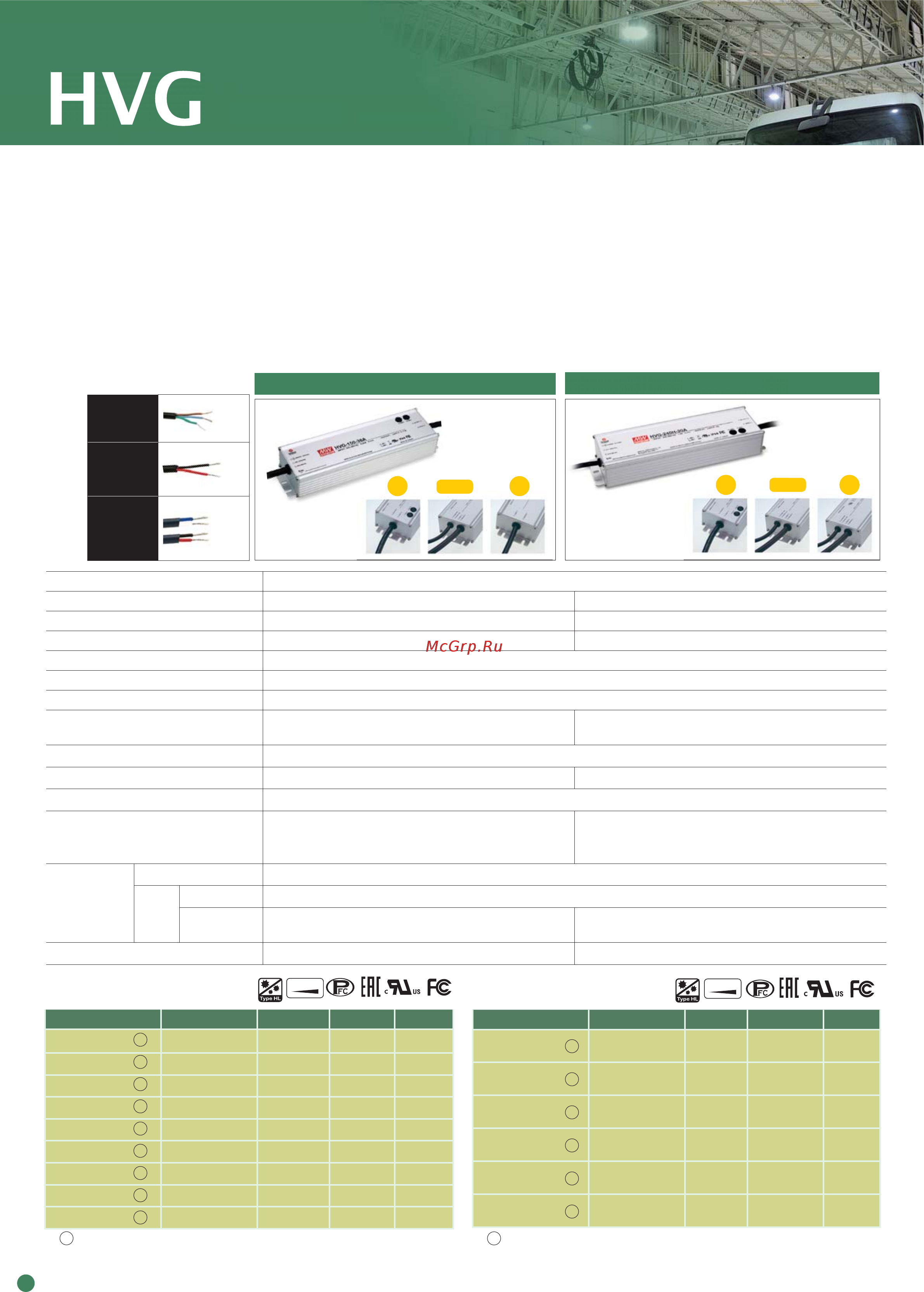

![MEAN WELL HBG-160P-36A [60/100] Series](/views2/1675311/page60/bg3c.png)
se
ri
es
150~240
W
HVG-150
HVG-240
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
Vo
-
DIM
-
DIM+
Vo
-
Vo+
Vo
+
ACN
ACL
FG
B/AB
B/AB
57
H
V
G
-
2
4
0
B/
A
AC input voltage range 180~528VAC (single phase); 254~747VDC
AC inrush current (max.) Cold start, 35A at 480VAC Cold start, 50A at 480VAC
DC adjustment range ±10% rated output voltage (A-Type only) ±7% rated output voltage (A-Type only)
Current adjustment range 55%~100% via potentiometer (A-Type only) 50%~100% via potentiometer (A-Type only)
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Over temperature protection Shut down and latch off o/p voltage, re-power on to recover
Setup, rise, hold up time
500ms, 80ms, 18ms at full load and
347VAC/480VAC
500ms, 150ms, 12ms at full load and
347VAC/480VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE") -40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards UL8750, CSA C22.2 No. 250.0-08, EAC TP TC 004
EMC standards
EN55015, EN61000-3-2 class C, EAC TP TC 020,
EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,
EN61547, FCC part 15 subpart B
FCC Part 15 subpart B, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11, EN61547
Connection
Input UL rated, STW 18AWGx3C (30cm)
Output
A&D-Type SJTW 14AWGx2C (30cm)
B/AB-Type
SJTW 14AWGx2C (30cm)+
UL2517 18AWGx2C (30cm)
SJTW 14AWGx2C (30cm)+
UL2517 22AWGx2C (30cm)
Dimension (LxWxH)(mm) 245x 68x 38.8 254.2x 68x 38.8
• Constant voltage+constant current modes
• 180~528VAC wide input range
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• 5 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io and Vo adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM signal
and resistance)
AB-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer & 3 in 1 dimming function.
D-Type (option): IP67 rated. Timer dimming function, contact MEAN
WELL for details (HVG-150 only)
D2-Type (option): IP67 rated.
Smart timer dimming function* (HVG-
240 only)
HVG-150 Series
Model No. Output Tol. R&N Effi.
HVG-150-12 A 12V, 0~10A ±2.5% 150mV 87.0%
HVG-150-15 A 15V, 0~10A ±2.0% 150mV 89.0%
HVG-150-20 A 20V, 0~7.5A ±1.0% 150mV 90.5%
HVG-150-24 A 24V, 0~6.25A ±1.0% 150mV 91.0%
HVG-150-30 A 30V, 0~5A ±1.0% 200mV 91.0%
HVG-150-36 A 36V, 0~4.17A ±1.0% 200mV 91.0%
HVG-150-42 A 42V, 0~3.58A ±1.0% 200mV 91.0%
HVG-150-48 A 48V, 0~3.13A ±1.0% 200mV 91.5%
HVG-150-54 A 54V, 0~2.78A ±1.0% 200mV 91.5%
= A, B, AB or D
Features
A
D
0-10VDC
(B-Type)
HVG-240 Series
Model No. Output Tol. R&N Effi.
HVG-240-24 A 24V, 0~10A ±1% 150mV 92.5%
HVG-240-30 A 30V, 0~8A ±1% 200mV 92.5%
HVG-240-36 A 36V, 0~6.7A ±1% 250mV 93%
HVG-240-42 A 42V, 0~5.7A ±1% 250mV 93%
HVG-240-48 A 48V, 0~5A ±1% 250mV 92.5%
HVG-240-54 A 54V, 0~4.5A ±1% 350mV 93%
= A , B, AB or D2
0-10VDC
(AB/B-Type)
AB
B/A
A
D2
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
