40~80
W
76
AC input voltage range
90~305VAC ; 127~431VDC
AC inrush current (max.)
Cold start, 50A at 230VAC Cold start, 55A at 230VAC Cold start, 70A at 230VAC
DC adjustment range
±10% rated output voltage
Current adjustment range
60%~100% 80%~100%
Over current protection
95%~108% constant current limiting, auto-recovery
Over voltage protection
109%~145% rated output voltage
Setup, rise, hold up time
500ms, 80ms, 16ms at full load and 230VAC 500ms, 200ms, 16ms at full load and 230VAC
Withstand voltage
I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature
-40~+70
O
C (refer to output derating curve)
Safety standards
UL8750, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved;
Design refer to EN60335-1(HLP-40H/60H), UL62368-1, EN62368-1
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1, EAC TP TC 020
Connection
Input
6+6P/3.96mm pitch, JST P/N: B6P-VH
Output
Dimension (LxWxH) (mm)
147x 53x 27 167x 53x 29.5
Features
• Constant current mode
• Universal AC input (up to 305VAC) / Full range
•
Built-in 3 in 1 dimming function
(1~10VDC, PWM signal, or resistance)
• Class 2 power unit / Pass LPS
• Suitable for built-in LED lighting system
• Protections:
Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• 3 years warranty

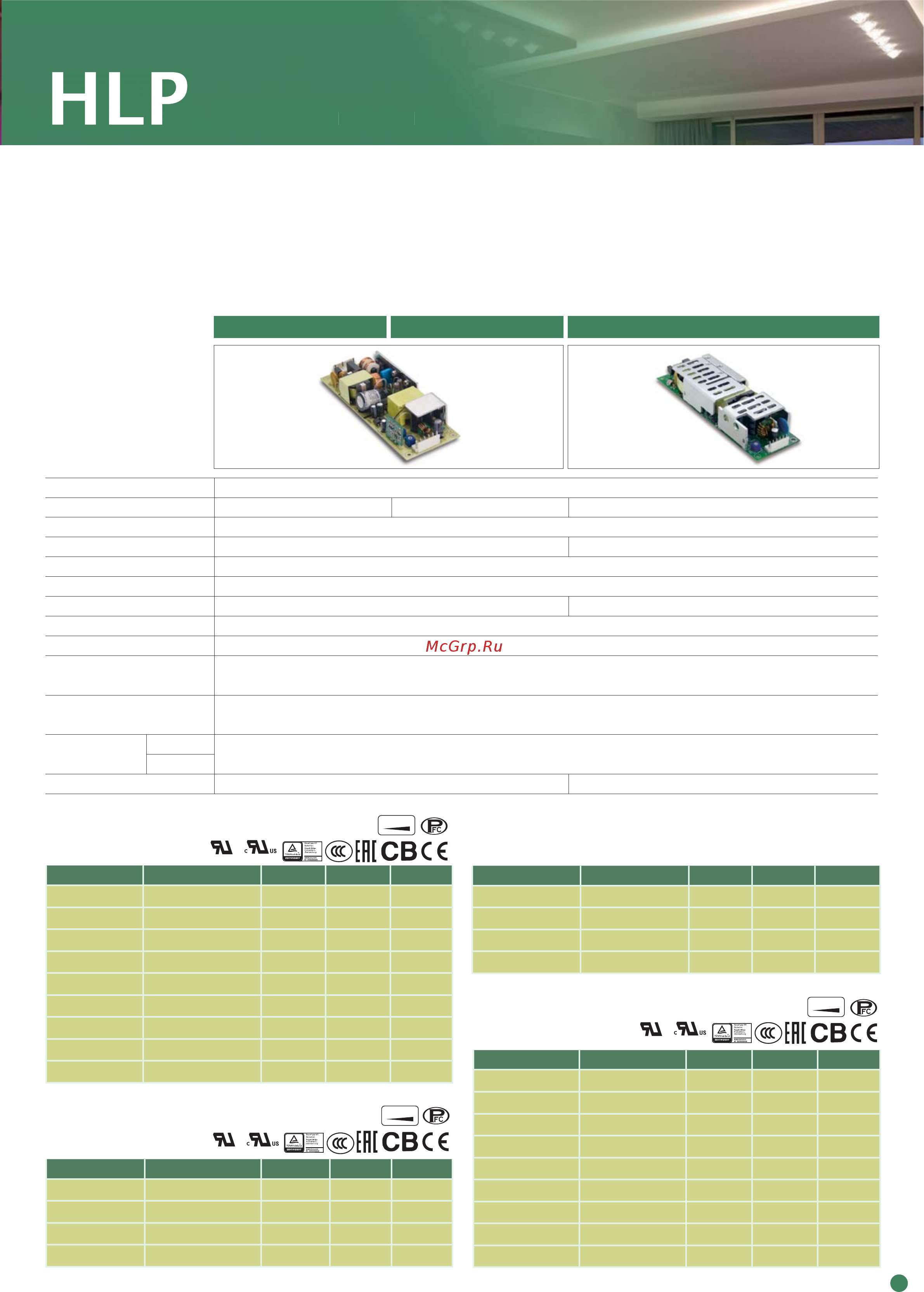

HLP-80HHLP-40H HLP-60H
HLP-40H Series
HLP-60H Series
HLP-80H Series
Model No. Output Tol. R&N Effi.
HLP-40H-12 12V, 0~3.33A ±2.5% 150mV 87.0%
HLP-40H-15 15V, 0~2.67A ±2.0% 150mV 87.0%
HLP-40H-20 20V, 0~2.00A ±1.0% 150mV 88.0%
HLP-40H-24 24V, 0~1.67A ±1.0% 150mV 88.0%
HLP-40H-30 30V, 0~1.34A ±1.0% 200mV 88.5%
HLP-40H-36 36V, 0~1.12A ±1.0% 200mV 89.0%
HLP-40H-42 42V, 0~0.96A ±1.0% 300mV 89.0%
HLP-40H-48 48V, 0~0.84A ±1.0% 300mV 89.5%
HLP-40H-54 54V, 0~0.75A ±1.0% 300mV 89.5%
Model No. Output Tol. R&N Effi.
HLP-80H-12 12V, 0~5.0A ±2.5% 150mV 87.5%
HLP-80H-15 15V, 0~5.0A ±2.0% 150mV 88.5%
HLP-80H-20 20V, 0~4.0A ±1.0% 150mV 89.5%
HLP-80H-24 24V, 0~3.4A ±1.0% 150mV 90.0%
HLP-80H-30 30V, 0~2.7A ±1.0% 200mV 90.0%
HLP-80H-36 36V, 0~2.3A ±1.0% 200mV 90.0%
HLP-80H-42 42V, 0~1.95A ±1.0% 200mV 90.0%
HLP-80H-48 48V, 0~1.7A ±1.0% 200mV 90.0%
HLP-80H-54 54V, 0~1.5A ±1.0% 200mV 90.0%
Model No. Output Tol. R&N Effi.
HLP-60H-15 15V, 0~4.0A ±2.0% 150mV 88.0%
HLP-60H-20 20V, 0~3.0A ±1.0% 150mV 89.0%
HLP-60H-24 24V, 0~2.5A ±1.0% 150mV 89.5%
HLP-60H-30 30V, 0~2.0A ±1.0% 200mV 90.0%
Model No. Output Tol. R&N Effi.
HLP-60H-36 36V, 0~1.70A ±1.0% 200mV 90.0%
HLP-60H-42 42V, 0~1.45A ±1.0% 300mV 90.0%
HLP-60H-48 48V, 0~1.30A ±1.0% 300mV 90.5%
HLP-60H-54 54V, 0~1.15A ±1.0% 300mV 90.5%
(for 48V/54V)
(for 48V/54V)
(for 48V/54V)
(for 12~42V)
(for 12~42V)
(for 12~42V)
1-10VDC
1-10VDC
1-10VDC
