![MEAN WELL CLG-150-20A [84/100] Series](/img/pdf.png)
MEAN WELL CLG-150-20A [84/100] Series
![MEAN WELL ELG-75-C1400DA [84/100] Series](/views2/1675311/page84/bg54.png)
se
ri
es
30~60
W
81
Model No.
Input
(VDC)
Output
Io Tol. Effi. Dimming
Voltage
(VDC)
Current
(mA)
LDD-350H- DA
6~50 3~45
350
±5% 95% PWM+Analog
LDD-700H-
DA
6~50 3~45
700
LDD-1050H-
DA
6~50 3~45
1050
LDD-1400H-
DA
6~40 3~36
1400
= Blank, W; Blank: pin style, W: Wire style
Features
LDD-350~1400H-DA LDD-350~1400H-WDA
Output current accuracy (Typ.) ±5% at 48VDC input (350~1050mA), 24VDC input (1400mA)
PWM dimming &
ON/OFF control
Remote ON/OFF
Leave open if not used
• Power ON with dimming : PWM DIM~-Vin >1.2 ~5VDC or open circuit
• Power OFF: PWM DIM~-Vin <0.1 VDC or short
• Max operation voltage 5.5 VDC
PWM frequency 200~1KHz
Analog dimming
& ON/OFF control
Remote ON/OFF
Leave open if not used
• Power ON with dimming : Analog DIM~-Vin >0.1~2.5VDC or open circuit
• Power OFF: Analog DIM~-Vin <0.1VDC or short
• Max operation voltage 5. 5 VDC
Short circuit protection Constant current with auto-recovery
Input under
voltage lockout
Power up (Typ.) 4.2VDC
Power down (Typ.) 3.8VDC
Working temperature
-40~+85
o
C (refer to output derating curve)
Safety standards EAC TP TC 004 approved
EMC standards EN55015, EN61547, EN61000-4-2,3,4,6,8, EAC TP TC 020
Operating case temp. (max.) 100
o
C
Dimension (LxWxH)(mm) 40.6x 23.5x 10.1

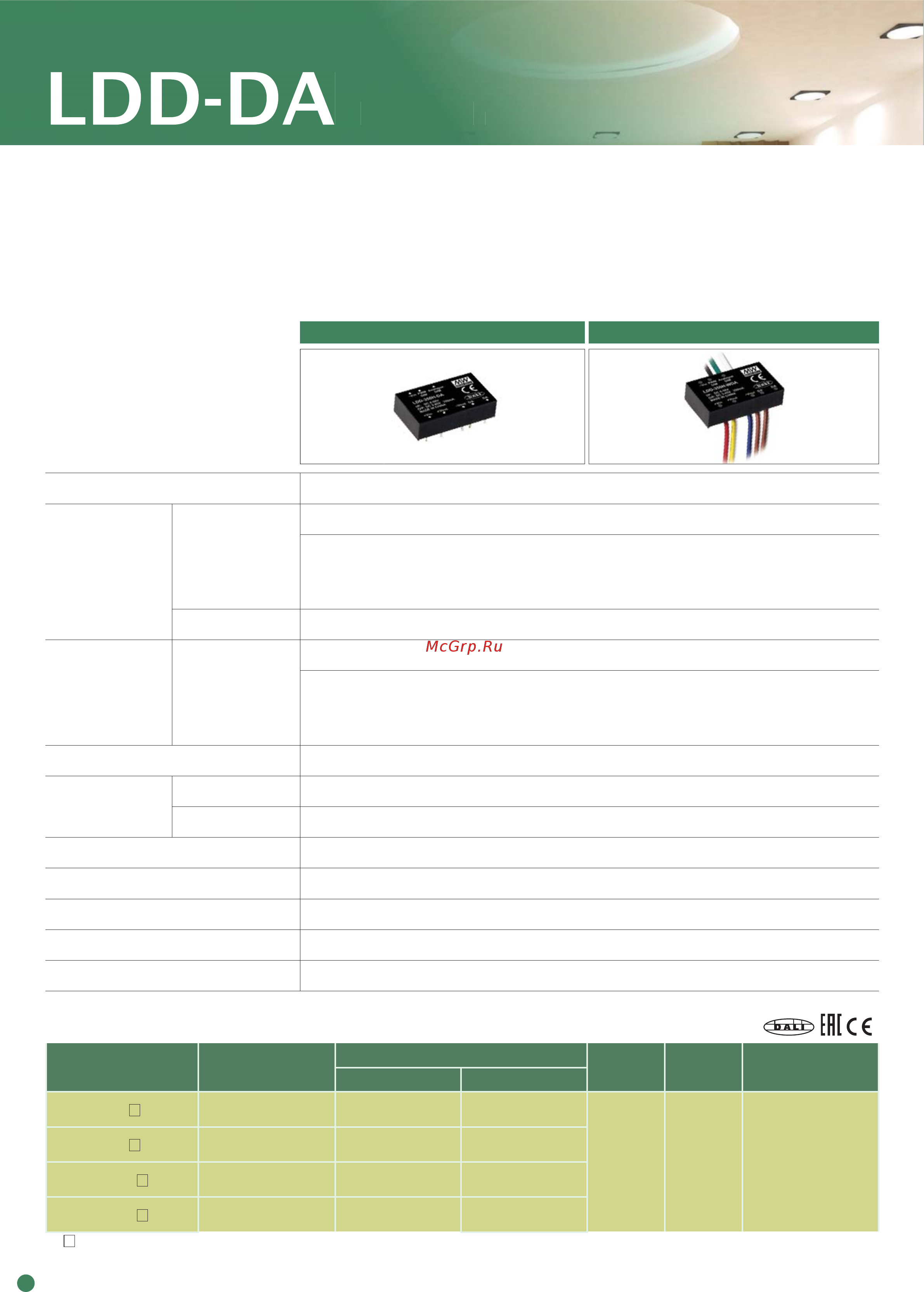

LDD-DA Series
• Constant current step-down mode
• Wide input and output voltage range
• High efficiency up to 95%
• Comply with EN55015 without additional input filter and capacitors
• DALI dimming function
• Protections: Short circuit / Input under voltage lockout
• Fully enclosed plastic case
• 3 years warranty
