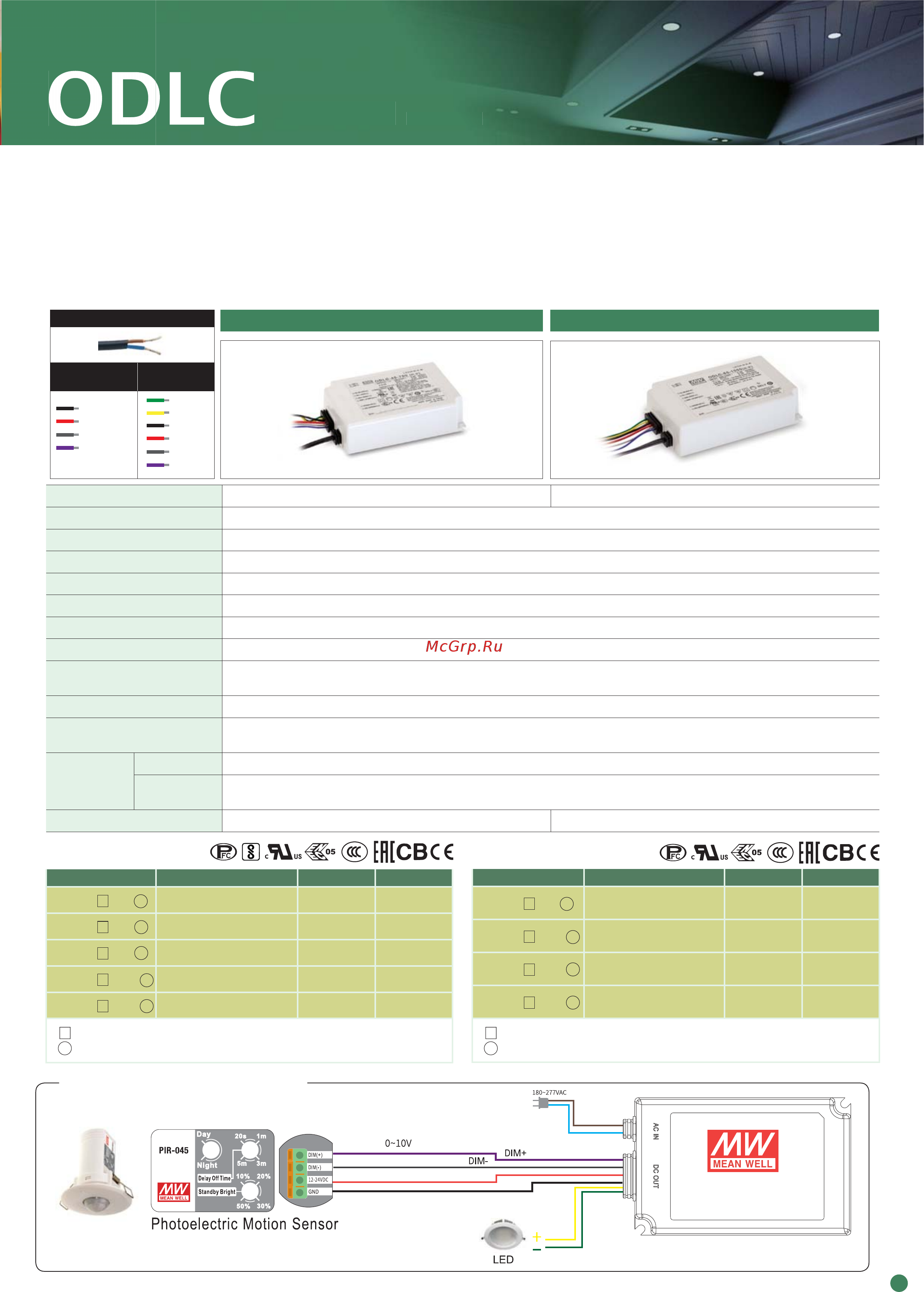

![MEAN WELL ODLV-45A-12 [23/100] Series](/views2/1675311/page23/bg17.png)
ODLC-65(A)&ODLC-65DAODLC-45(A)&ODLC-45DA
INPUT
OUTPUT
(Blank/DA-Type)
OUTPUT
(A-Type)
ACN
ACL
Vo-
Vo+
DIM-/DA-
DIM+/DA+
AUX-
AUX+
Vo-
Vo+
DIM-
DIM+
20
Features
• Constant Current mode
• Flicker free design
• ODLC-45: 90~295VAC input,
ODLC-65: 180~295VAC input
• No load power consumption <0.5W (Blank/DA-Type)
• Fully encapsulated with IP67 level
• Isolation class II, no FG
AC input voltage range 90 ~ 295VAC ; 127 ~ 417VDC 180 ~ 295VAC ; 254~417VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Setup time 500ms / 230VAC
PWM dimming signal 10V PWM signal, frequency range 300Hz~3kHz
Total harmonic distortion THD<20%
Short circuit protection Hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 3.75KVAC
Working temperature Tcase= -20~+85
o
C
Safety standards
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004,
BIS 15885 (refer to spec for models) approved
DALI standards IEC 62386-101, 102 (DA-Type only)
EMC standards
EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020
Connection
Input SVT 18AWGx2C (20cm)
Output
Blank/DA-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm)
A-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm) + UL1007 22AWGx2C(15cm)
Dimension (LxWxH) mm 111x 77x 28.5 121 x 77 x 28.5
Model No. Output Tol. Effi.
ODLC-45 -350
57 ~ 95V, 350mA ±7% 86%
ODLC-45
-500
54 ~ 90V, 500mA ±7% 85%
ODLC-45
-700
38 ~ 64V, 700mA ±7% 85%
ODLC-45
-1050
26 ~ 43V, 1050mA ±7% 84%
ODLC-45
-1400
19 ~ 32V, 1400mA ±7% 83%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
= Blank or DA (without Auxiliary power)
Model No. Output Tol. Effi.
ODLC-65 -700
69 ~ 93V, 700mA ±7% 88%
ODLC-65
-1050
46 ~ 62V, 1050mA ±7% 86%
ODLC-65
-1400
34 ~ 46V, 1400mA ±7% 85%
ODLC-65
-1750
27 ~ 36V, 1750mA ±7% 85%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
= Blank or DA (without Auxiliary power)
• Built-in DALI interface (ODLC-45/65-DA)
• Built-in 2 in 1 dimming (0~10VDC or PWM signal)
• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for LED lighting applications
• Protection: Short circuit / Over current
• 3 years warranty
se
ri
es
45~6
5W
W
W
W
W
W
ODLC-45 Series ODLC-65 Series
Intelligent dimming control
źź
Vo-
Vo+
AUX.
AUX.
ODLC-45A/65A
(Or please refer to page 30 for Wireless Dimming control)
