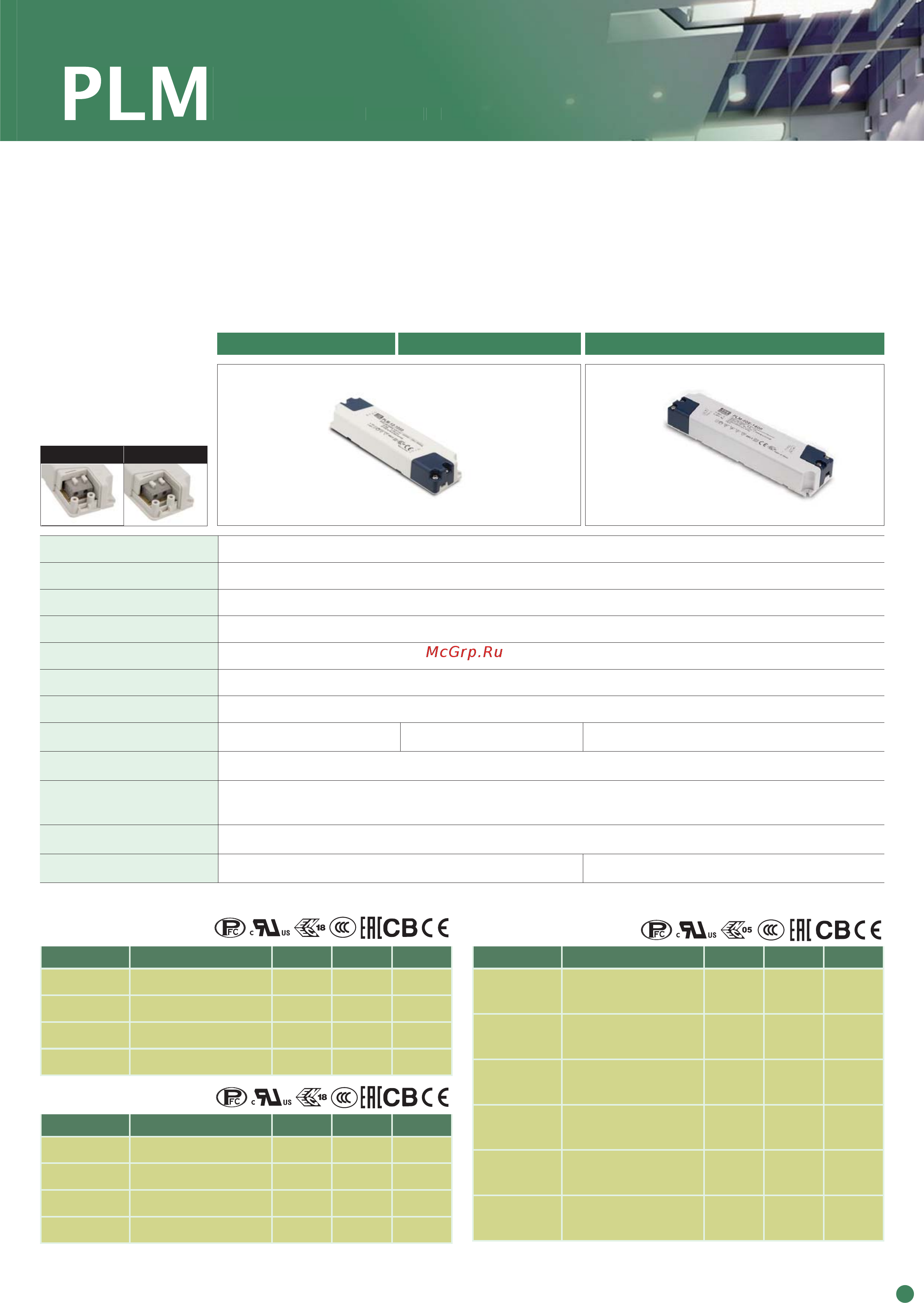

PLM-12 PLM-40PLM-25
INPUT OUTPUT
series
12~40
W
34
Features
• Constant current mode
• 110~295VAC input
• No load power consumption <0.5W
• Fully isolated plastic case with push terminal style I/O
• Three-step analog dimming function (PLM-40)
• IP30 design
AC input voltage range 110~295VAC; 156~417VDC
AC inrush current (max.) Cold start, 15A at 230VAC
Setup time 500ms at full load and 230VAC
Total harmonic distortion THD<20%
Short circuit protection Hiccup mode, auto-recovery
Over temp. protection Hiccup mode, auto-recovery (PLM-40 only)
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+50ºC -30~+45ºC -30~+40ºC
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020
Connection (Input / Output) 2+2P push terminal block
Dimension (LxWxH)(mm) 145x 38x 22 175x 42x 24
• Isolation class II, no F.G.
• Class 2 power unit (except for PLM-25-350 & PLM-40)
• Economic, high reliability
• Suitable for indoor LED lighting applications
• Protections: Short circu
it / Over temperature (PLM-40)
• 2 years warranty
PLM-25 Series
PLM-40 SeriesPLM-12 Series
Model No. Output Io Tol. R&N Ef.
PLM-40-350 53~105V, 350mA ±5% 10V 88%
PLM-40-500 40~80V, 500mA ±5% 8.0V 88%
PLM-40-700 29~57V, 700mA ±5% 6.0V 87%
PLM-40-1050 19~38V, 1050mA ±5% 4.0V 87%
PLM-40-1400 15~29V, 1400mA ±5% 3.0V 86%
PLM-40-1750 12~23V, 1750mA ±5% 2.5V 86%
Model No. Output Io Tol. R&N Ef.
PLM-25-350 42~72V, 350mA ±5% 7.2V 87%
PLM-25-500 30~50V, 500mA ±5% 5.0V 86%
PLM-25-700 21~36V, 700mA ±5% 3.6V 86%
PLM-25-1050 14~24V, 1050mA ±5% 2.4V 85%
Model No. Output Io Tol. R&N Ef.
PLM-12-350 22~36V, 350mA ±5% 3.6V 85%
PLM-12-500 15~24V, 500mA ±5% 2.4V 84%
PLM-12-700 11~18V, 700mA ±5% 2.4V 83%
PLM-12-1050 7~12V, 1050mA ±5% 1.8V 81%
