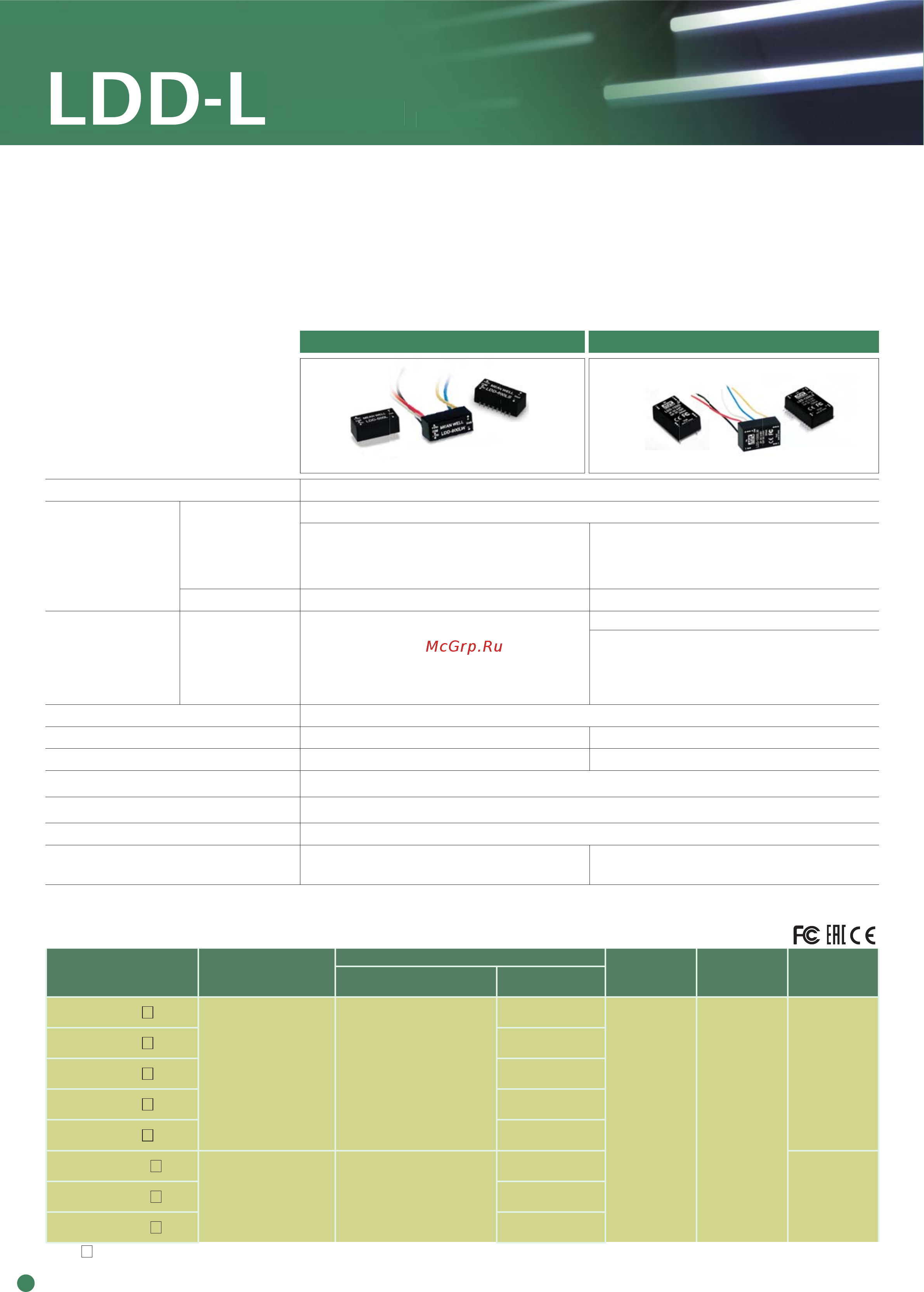

![MEAN WELL ODLV-65A-36 [82/100] Series](/views2/1675311/page82/bg52.png)
se
ri
es
DC/DC LE
D
D
D
D
D
D
Dr
r
r
r
iv
iv
i
i
e
er
e
er
r
er
79
Model No.
Input
(VDC)
Output
Io Tol. Effi. Dimming
Voltage
(VDC)
Current
(mA)
LDD-300L
9~36
(9~32 for S style)
2~32
(2~28 for S style)
300
±5% 95%
PWM
LDD-350L
350
LDD-500L
500
LDD-600L
600
LDD-700L
700
LDD-1000L
6~36 2~30
1000
PWM+Analog
LDD-1200L
1200
LDD-1500L
1500
= Blank, W, S ; Blank: pin style, W: Wire style, S: SMD style
Features
• Constant current step-down mode
• Wide input and output voltage range
• High efficiency up to 95%
• Comply with EN55015 / FCC part 15 without additional
input filter and capacitors
• Compact size
LDD-300~700L/LW/LS LDD-1000~1500L/LW/LS
• Protections: Short circuit / Over temperature (LDD-300~700)
• Fully enclosed plastic case (UL 94V-0)
• Economic, high reliability
• 3 years warranty
Output current accuracy (Typ.) ±5% at 24VDC input
PWM dimming &
ON/OFF control
Remote ON/OFF
Leave open if not used
• Power ON with dimming:
DIM ~ -Vin >3.5~8VDC or open circuit
• Power OFF:
DIM ~ -Vin <0.5VDC or short
• Power ON with dimming:
DIM ~ -Vin >2.6~5.5VDC or open circuit
• Power OFF:
DIM ~ -Vin <0.4VDC or short
PWM frequency 100~1000Hz 100~500Hz
Analog dimming &
ON/OFF control
Remote ON/OFF None
Leave open if not used
• Power ON with dimming:
DIM ~ -Vin >0.5~2.5VDC or open circuit
• Power OFF:
DIM ~ -Vin <0.4VDC or short
Short circuit protection Regulated at rated output current; can be continued, auto-recovery
Over temp. protection Shut down, auto-recovery None
Working temperature
-40~+85
o
C -40~+71
o
C
Safety standards EAC TP TC 004 approved
EMC standards EN55015, EN61547, EN61000-4-2,3,4,6,8, FCC part 15 class B, EAC TP TC 020
Operating case temp. (max.) 100
o
C
Dimension (LxWxH)(mm)
L/LW: 22.6x 9.9x 8.9
LS: 25.4x 10.5x 9.3
L/LW: 31.8x 20.3x 12.2
LS: 31.8x 20.3x 10.9
LDD-L Series
