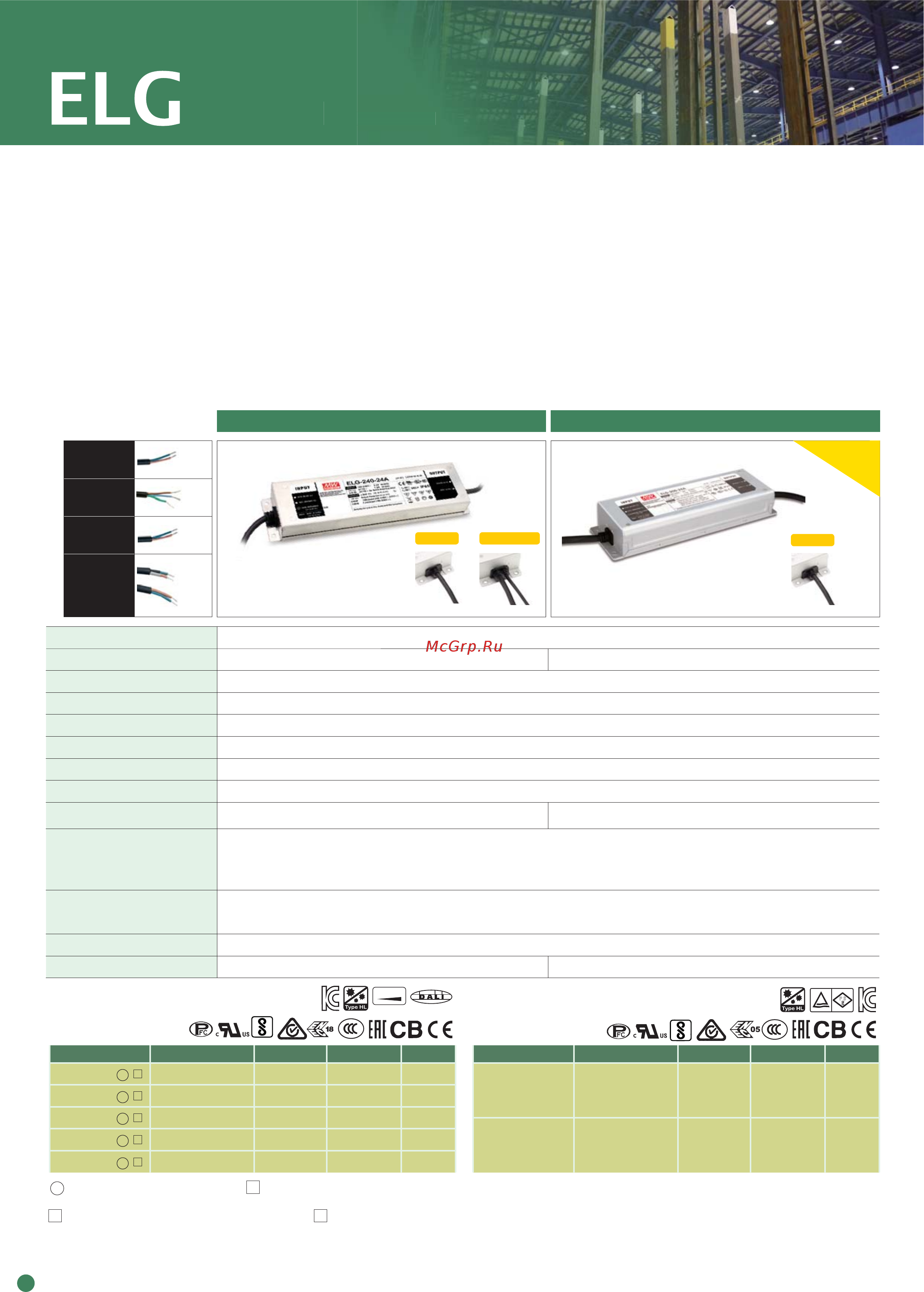

ELG-300
Blank/A
Blank/A
= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.
Note 1:for 24/24B/36/36A/42/42A/54/54A only
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
INPUT
INPUT
(3Y Models)
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACN
Vo
-
DIM
-
DIM+
Vo+
Vo
-
ACL
Vo
+
ACN
ACL
FG
ELG-240
B/AB/D2/DA
NEWNEW
43
AC input voltage range 100~305VAC ; 142~431VDC
AC inrush current (max.) Cold start, 60A at 230VAC Cold start, 45A at 230VAC
DC adjustment range ±8% rated output voltage (A/AB-Type only)
Current adjustment range 50%~100% via potentiometer (A/AB-Type only)
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms, 100ms, at 230VAC
Withstand voltage I/P-O/P: 3.75kVAC I/P-FG: 2.0kVAC O/P-FG: 1.5kVAC
Working temperature -40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE") -40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750(type”HL”), CSA C22.2 No. 250.13-12, EN61347-1,-2-13, IEC/AS/NZS 61347-1, IEC/AS/NZS 61347-2-13 inde-
pendent, EN62384, EAC TP TC 004, BIS IS15885(
Note 1),GB19510.14, GB19510.1, IP65 or IP67 approved, KC61347-
1(for ELG-240 only), KC61347-2-13(for ELG-240 only)
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020, KC KN15(only for ELG-240), KN61547(only for ELG-240)
Connection Please refer to page 47
Dimension (LxWxH) (mm) 244x 71x 37.5 246x 77x 39.5
Features
• Constant voltage+constant current modes
• Wide input range 100~305VAC
• High efficiency up to 94%
•
No load / Standby power consumption <0.5W(for ELG-240 only)
•
Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry / damp / wet locations
• Suitable for outdoor LED lighting applications
• Protections:
Short circuit / Over current / Over voltage / Over temp.
• Multiple models for choice:(ELG-240)
Blank-Type: IP67 rated. Io and Vo fixed
(For harsh environment)
A-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer
B-Type: IP67 rated.3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer & 3 in 1 dimming function.
D2-Type: IP67 rated.
Smart timer dimming function*, contact
MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
• 5 years warranty
ELG-240 Series ELG-300 Series
Model No. Output Tol. R&N Effi.
ELG-240-24 A -
24V, 0~10A ±2% 200mV 92.0%
ELG-240-36 A -
36V, 0~6.66A ±2% 250mV 92.0%
ELG-240-42 A -
42V, 0~5.71A ±2% 250mV 92.5%
ELG-240-48 A -
48V, 0~5.0A ±2% 250mV 93.0%
ELG-240-54 A -
54V, 0~4.45A ±2% 350mV 93.0%
= Blank, A, B, AB, D2 or DA ; = Blank, 3Y
Model No. Output Tol. R&N Effi.
ELG-300-12A 12V, 11~22A ±3% 150mV 91.0%
ELG-300-24A 24V, 6.25~12.5A ±2% 240mV 94.0%
0-10VDC
(DA-Type)(B-Type)
(Note 1)
se
ri
es
240~30
0W
P S
E
