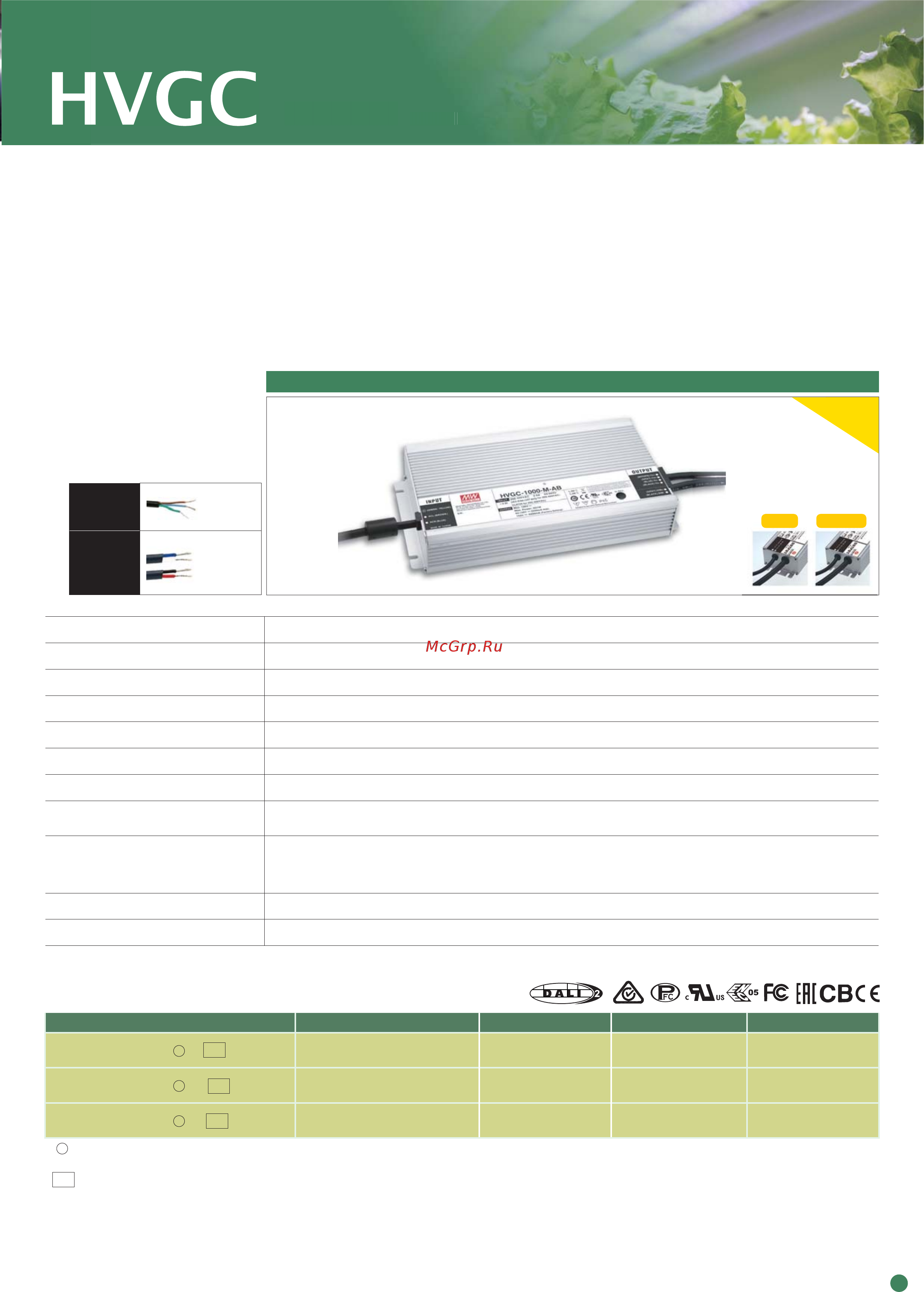

HVGC-1000
INPUT
OUTPUT
DIM
-
/DA
-
DIM+/DA+
Vo
-
Vo+
ACN
ACL
FG
NEWNEW
62
Model No. Output Io Tol. Io Ripple Ef.
HVGC-1000 -L- AB 150~380V,1315~3280mA ±5% 3% max. 95%
HVGC-1000 -M- AB 95~240V,2100~5250mA ±5% 3% max. 96%
HVGC-1000 -H- AB 70~180V,2800~7000mA ±5% 3% max. 95%
= Blank, A
Blank: without auxiliary function, A: with auxiliary DC output power
= AB, D2 or DA2
AC input voltage range 180~528VAC； 254~747VDC
AC inrush current (max.) Cold start 40A at 480VAC
Current adjustment range 50%~100% via potentiometer (AB-Type only)
Over voltage protection 105%~110% shut down o/p voltage, re-power on to recover
Setup time 500ms/230VAC, 347VAC, 480VAC
Withstand voltage I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC
Working temperature (Tcase)
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750 (type”HL”), CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13
independent, EN62384, EAC TP TC 004 ,IP67, approved
EMC standards
FCC Part 15 class B,EN55015, EN61000-3-2 Class C (@ load͘50%); EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020, EN61547
Connection Please refer to page 64
Dimension (LxWxH)(mm) 310x 144x 48.5
• Constant power mode output
• Wide input range 180
~528VAC with active PFC
• Metal housing with Class˺design
• Surge protection with 8KV/4KV
• Suitable for outdoor LED lighting applications
• Auxiliary DC output available
• 5 years warranty
• Multiple models for choice:
AB-Type: IP67 rated. Standard constant power output with 3 in 1
dimming function (0~10Vdc,10V PWM signal and
resistance) and built-in potentiometer
D2-Type (option): IP67 rated. Built-in Smart timer dimming and
programmable function
DA-Type (option): IP67 rated.DALI 2.0 control technology
• Protections: Short circuit / Over voltage / Over temperature
HVGC-1000 Series
Features
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
D2/DA2AB
Type HL
se
ri
es
100
0
W
