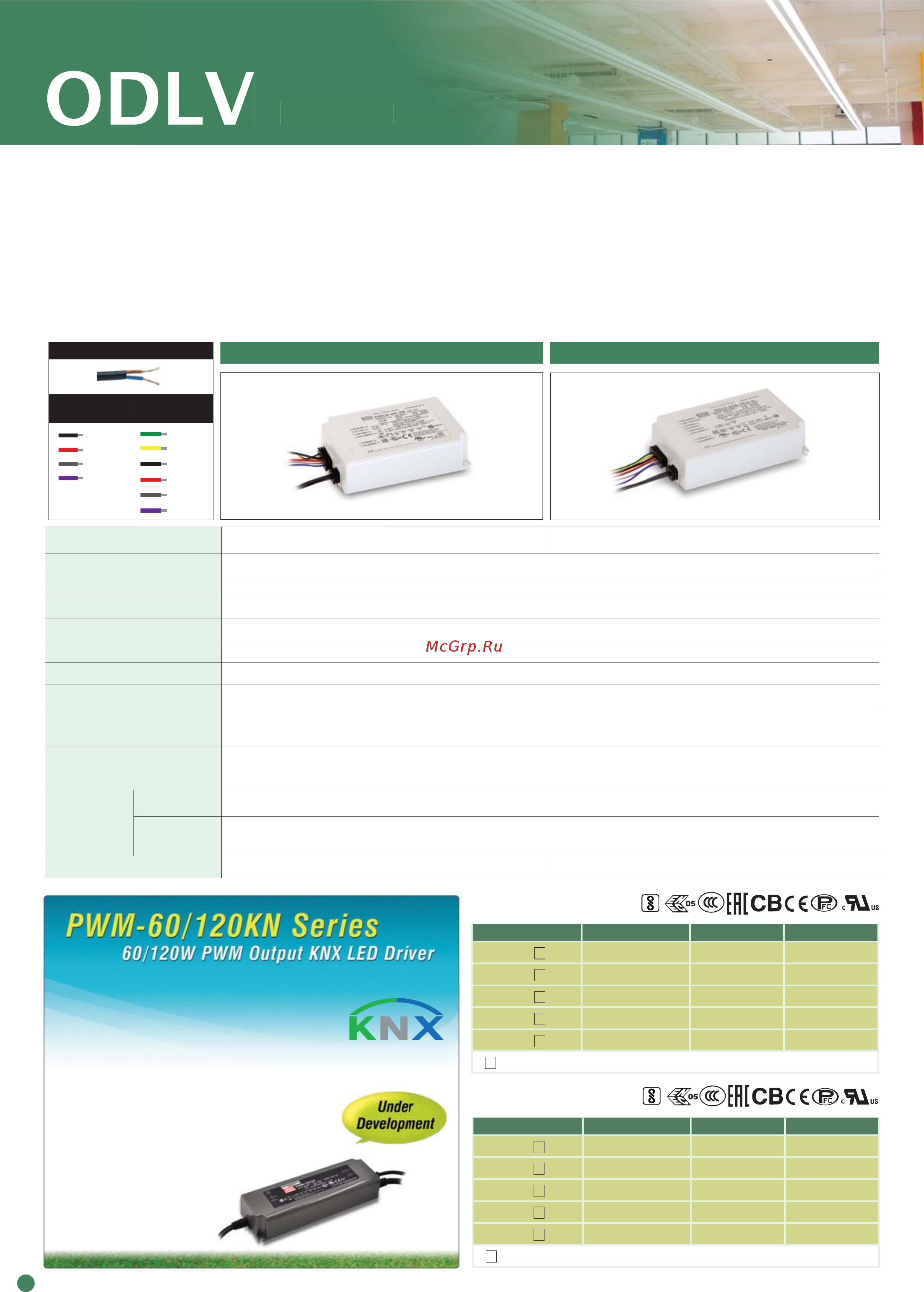

ODLV-65(A)ODLV-45(A)
INPUT
OUTPUT
(Blank-Type)
OUTPUT
(A-Type)
ACN
ACL
Vo-
Vo+
DIM-
DIM+
AUX-
AUX+
Vo-
Vo+
DIM-
DIM+
19
Features
• Constant voltage PWM style output mode
• ODLV-45: 90~295VAC input
ODLV-65: 180~295VAC input only
• No load power consumption<0.5W (Blank-Type)
• High efficiency up to 90%
• Fully encapsulated with IP67 level
AC input voltage range 90 ~ 295VAC ; 127 ~ 417VDC 180 ~ 295VAC; 254~417VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Setup time 500ms / 230VAC
Short circuit protection Shut down O/P voltage, re-power on to recovery
PWM dimming signal 10V PWM signal, frequency range 300Hz~3kHz
Total harmonic distortion THD<20%
Withstand voltage I/P-O/P: 3.75KVAC
Working temperature Tcase= -20~+85
o
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1,
BIS IS15885(for 12V, 24V, 48V only), EAC TP TC 004 approved
EMC standards
EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1, EAC TP TC 020
Connection
Input SVT 18AWGx2C (20cm)
Output
Blank-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm)
A-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm) + UL1007 22AWGx2C(15cm)
Dimension (LxWxH) mm 111 x 77 x 28.5 121 x 77 x 28.5
ODLV-45/45A Series
ODLV-65/65A Series
Model No. Output Tol. Effi.
ODLV-45 -12
12V, 0~3A ±10% 84%
ODLV-45
-24
24V, 0~1.88A ±10% 86%
ODLV-45
-36
36V, 0~1.25A ±10% 88%
ODLV-45
-48
48V, 0~0.94A ±10% 88%
ODLV-45
-60
60V, 0~0.75A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
Model No. Output Tol. Effi.
ODLV-65 -12
12V, 0~4.2A ±10% 85%
ODLV-65
-24
24V, 0~2.4A ±10% 87%
ODLV-65
-36
36V, 0~1.8A ±10% 88%
ODLV-65
-48
48V, 0~1.35A ±10% 89%
ODLV-65
-60
60V, 0~1.08A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
• Isolation class II, no FG
• Built-in 2 in 1 dimming (0~10VDC or PWM signal)
• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for LED strip lighting
• Protection: Short circuit / Over current
• 3 years warranty
(for 12V,24V,48V only)
(for 12V,24V,48V only)
s
e
r
i
e
s
45
~6
5W
5W
W
W
• Constant voltage PWM style output
with user changeable frequency
• Plastic housing with class II design
• Built-in active PFC function
• No load power consumption <0.5W / standby
power consumption <0.5W
• Integrated KNX control portocol
• No need KNX-DALI gateway
• Typical lifetime >50000 hours
• 5 years warranty
