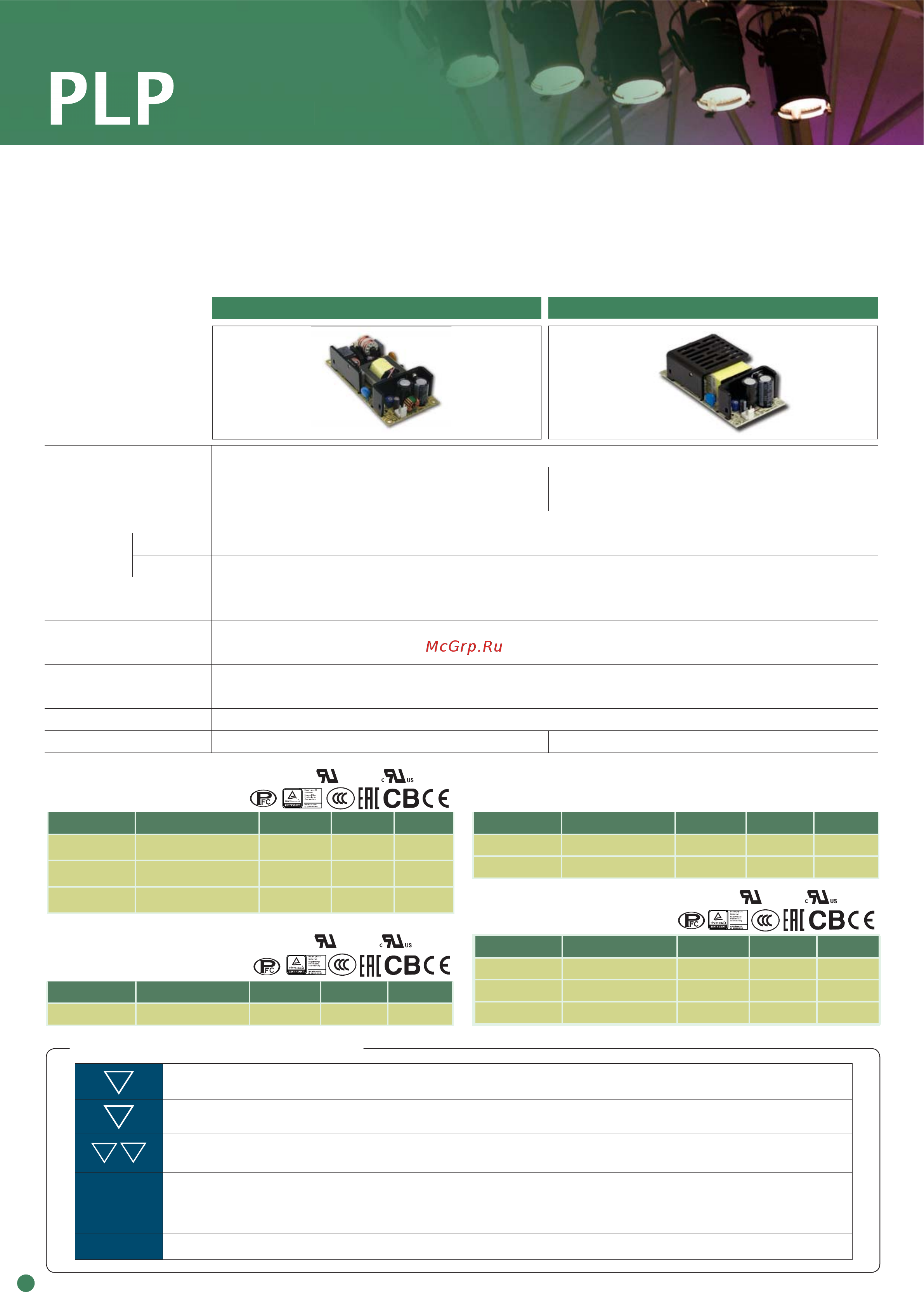

PLP-30
PLP-45/60
se
ri
es
30~6
0W
75
Features
AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 25A at 230VAC
PLP-45: Cold start, 30A at 230VAC
PLP-60: Cold start, 35A at 230VAC
Current adjustment range 75%~100%
Over current
protection
Range 100%~110%
Type Constant current limiting, auto-recovery
Setup time 500ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature
-30~+70
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards UL8750, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020
Connection 3+2P / 3.96mm pitch, JST P/N: B3P / B2P-VH
Dimension (LxWxH)(mm) 101.6x 50.8x 26.6 101.6x 50.8x 29.6
• Constant current mode
• Universal AC input / Full range
• Class 2 power unit / Pass LPS
• Suitable for built-in LED lighting systems
Model No. Output Tol. R&N Effi.
PLP-30-12 12V, 0~2.5A ±10% 2.0V 83.0%
PLP-30-24 24V, 0~1.3A ±10% 2.4V 85.5%
PLP-30-48 48V, 0~0.63A ±10% 4.8V 86.5%
Model No. Output Tol. R&N Effi.
PLP-60-12 12V, 0~5.0A ±10% 4.5V 84%
PLP-60-24 24V, 0~2.5A ±10% 4.5V 88%
PLP-60-48 48V, 0~1.3A ±10% 4.8V 89%
PLP-45 Series
PLP-30 Series
PLP-60 Series
• Protections: Short circuit / Over current / Over voltage
• Cooling by free air convection
• 2 years warranty
Model No. Output Tol. R&N Effi.
PLP-45-12 12V, 0~3.8A ±10% 4.2V 86%
Model No. Output Tol. R&N Effi.
PLP-45-24 24V, 0~1.9A ±10% 3.8V 89%
PLP-45-48 48V, 0~0.95A ±10% 4.8V 89%
(for 48V only)
(for 48V only)
(for 48V only)
(for 12/24V)
(for 12/24V)
(for 12/24V)
Special Symbols for EN61347-2-13
Protection against overheating to prevent the lamp controlgear case temperature under any conditions of use from
exceeding the indicated value (110
O
C)
Suitable for direct mounting on normally flammable surfaces, such as wood (>2mm)
Based on VDE0710-14, can be installed inside a wooden material like wooden cabinet.
The minimum distance between the product enclosure to wooden material in each side is defined.
Limited power source
Full load operation up to 40
O
C with surface temperature of case < 80
O
C
Vo< 120VDC can have this mark on the unit
110
F
M
M
LPS
tc: 80
o
C
t
a: 40
o
C
SELV
źź
