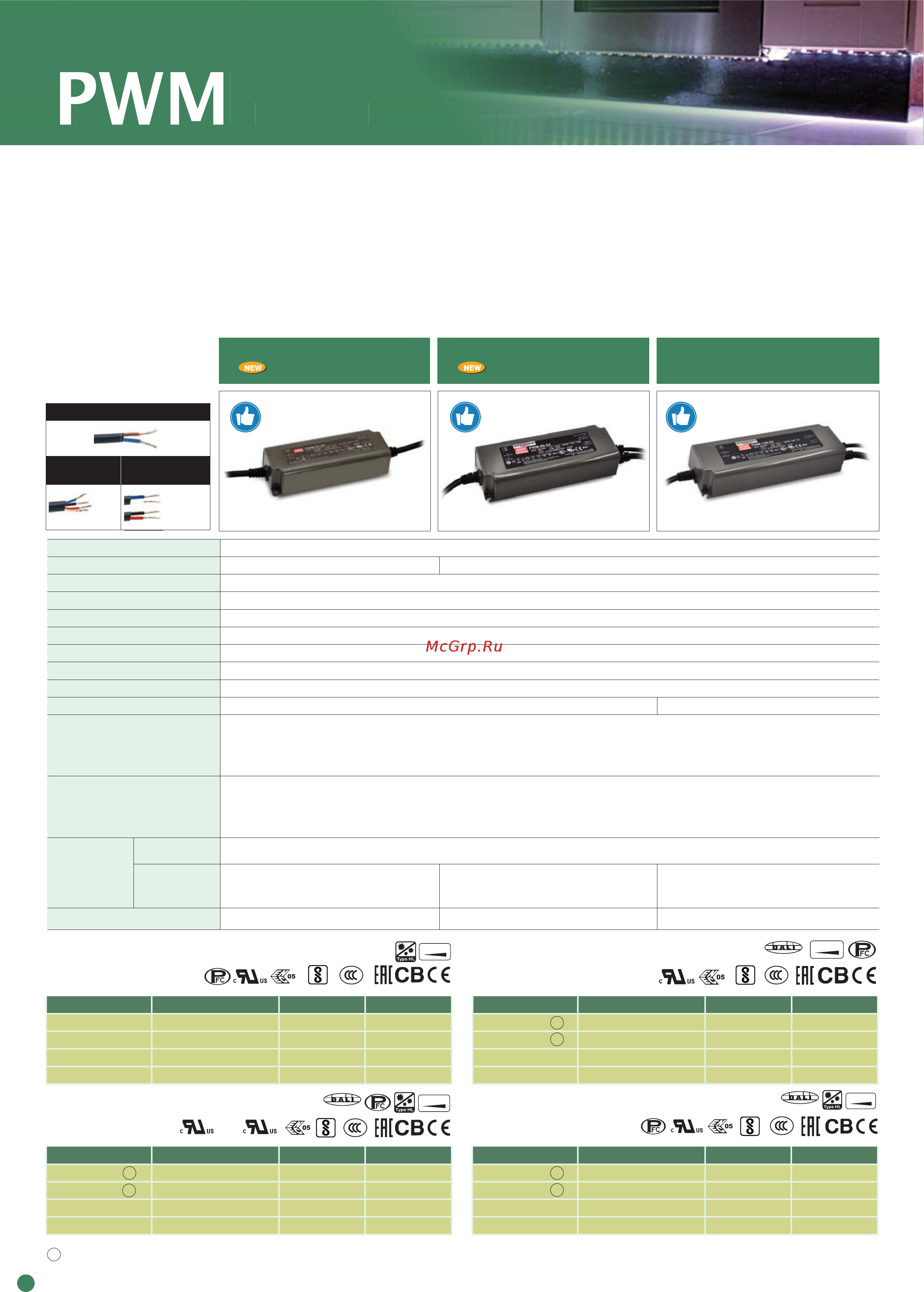

INPUT
OUTPUT
(PWM-40/60)
OUTPUT
(PWM-90/120)
(PWM-9
ACN
DIM+
DIM+/DA+
Vo+
Vo+
DIM
-
DIM
-
/DA
-
Vo
-
Vo
-
ACL
17
Features
• Constant voltage PWM style output mode
• Universal AC input (90 to 305VAC) / Full range
• High efficiency up to 90.5%
• No load power consumption <0.5W
• Fully isolated plastic case with IP67 level
• Isolation class II, no F.G.
• Class 2 power unit (except for PWM-90-12 & PWM-120)
• Type HL LED Driver for use in Class I, Division 2
hazardous location luminaires (except for PWM-90)
• Built-in 3 in 1 dimming function
(0~10VDC, PWM signal or resistance)
• Built-in DALI interface (except for PWM-40)
• Suitable for dry, damp, and wet location
• Suitable for LED strip lighting
• Protections:
Short circuit / Overload / Over voltage / Over temp.
• 5 years warranty
PWM-40/60
PWM-60-DA
PWM-120
PWM-120-DA
PWM-40 Series
PWM-60 Series
PWM-120 Series
Model No. Output Tol. Effi.
PWM-40-12 12V, 0~3.34A ±4% 86.0%
PWM-40-24 24V, 0~1.67A ±3% 89.0%
PWM-40-36 36V, 0~1.12A ±2% 90.0%
PWM-40-48 48V, 0~0.84A ±1% 90.0%
Model No. Output Tol. Effi.
PWM-60-12 12V, 0~5A ±4% 86.0%
PWM-60-24 24V, 0~2.5A ±3% 89.0%
PWM-60-36 36V, 0~1.67A ±2% 90.0%
PWM-60-48 48V, 0~1.25A ±1% 90.0%
Model No. Output Tol. Effi.
PWM-90-12 12V, 0~7.5A ±4% 88.0%
PWM-90-24 24V, 0~3.75A ±3% 90.5%
PWM-90-36 36V, 0~2.5A ±2% 90.5%
PWM-90-48 48V, 0~1.88A ±1% 90.5%
Model No. Output Tol. Effi.
PWM-120-12 12V, 0~10A ±4% 88.0%
PWM-120-24 24V, 0~5A ±4% 90.0%
PWM-120-36 36V, 0~3.4A ±2% 90.0%
PWM-120-48 48V, 0~2.5A ±1% 90.5%
PWM-90 Series
PWM-90
PWM-90-DA
AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
Cold start, 60A at 230VAC
Overload protection 108%~120% hiccup mode, auto-recovery
Over voltage protection 113%~142% rated output voltage
Over temp. protection Shut down o/p voltage, re-power on to recover
Setup time 500ms / 115VAC or 230VAC
Total harmonic distortion THD<20%
PWM output frequency 1.47kHz
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature Tcase= -40~+85
o
C (refer to "OUTPUT LOAD vs TEMPERATURE") Tcase= -40~+90
o
C
Safety standards
UL8750( except for DA-Type), UL879( PWM-40/60-12/24 only), CSA C22.2 No. 250.13-12;
ENEC EN61347-1,EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48, Blank
Type only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to EN60335-1
EMC standards
Compliance to EN55015, EN61000-3-2 Class C (@load͘60%) ; EN61000-3-3,GB17743 and
GB17625.1,EAC TP TC 020, EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge
immunity Line-Line 2KV)
Connection
Input UL rated, SJTW 18AWGx2C (30cm)
Output
UL2464 18AWG x2C (30cm)+
22AWG x2C (30cm)
SJTW 16AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)
SJTW 14AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 150x 53x 35 171x 63x 37.5 191x 63x 37.5
0-10VDC
0-10VDC
0-10VDC
0-10VDC
(DA-Type)
(DA-Type)
(DA-Type)
= Blank, DA ;
Blank: with 3 in 1 dimming function , DA: with DALI function (12V/24V only)
(for 12V,24V)
(for 12V,24V)
(12,24,48 Blank-Type)
(except for DA-Type)(for 12/24/48 Blank-Type)
(except for 36V)
se
ri
es
40~120
W
Type HL
E320521
Type HL
(except for 12DA-Type)
