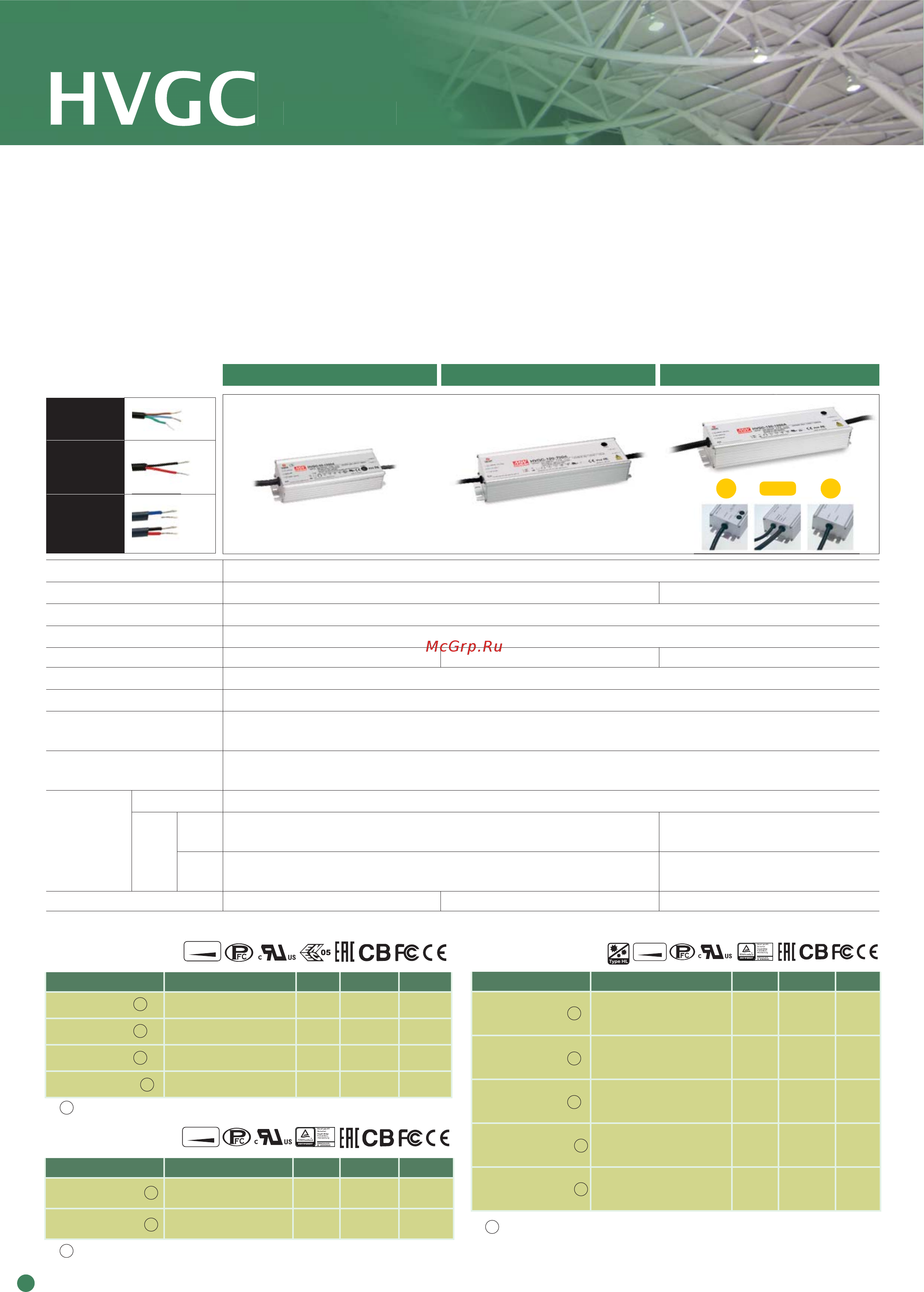

HVGC-65
HVGC-100
HVGC-150
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming Models)
Vo
-
DIM
-
DIM+
Vo
-
Vo+
Vo
+
ACN
ACL
FG
59
Model No. Output Io Tol. Io Ripple Effi.
HVGC-150-350 A 42~428V, 350mA ±5% 5% max. 91%
HVGC-150-500 A 30~300V, 500mA ±5% 5% max. 91%
HVGC-150-700 A 21~215V, 700mA ±5% 5% max. 91%
HVGC-150-1050 A 15~143V, 1050mA ±5% 5% max. 90%
HVGC-150-1400 A 12~107V, 1400mA ±5% 5% max. 90%
= A, B, AB or D
AC input voltage range 180~528VAC (single phase); 254~747VDC
AC inrush current (max.) Cold start, 25A at 480VAC Cold start, 35A at 480VAC
Current adjustment range 60%~100% via potentiometer (A-Type only)
Over voltage protection 105%~115% rated output voltage
Setup time 400ms at 347VAC/480VAC 500ms at 347VAC/480VAC 400ms at 347VAC/480VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+80
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
HVGC-65: UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, EAC TP TC 004 approved
HVGC-100/150: UL8750, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
FCC part 15 subpart B, EAC TP TC 020
Connection
Input UL rated, STW 18AWGx3C (30cm)
Output
A&D-
Type
SJTW 18AWGx2C (30cm) STW 18AWGx2C (30cm)
B/AB
Type
SJTW 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)
STW 18AWGx2C (30cm)+
UL2517 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 189x 61.5x 36.8 236x 68x 38.8 245x 68x 38.8
• Constant current mode
• 180~528VAC wide input range
• High efficiency up to 91%
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires (HVGC-150)
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• 5 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in
potentiometer & 3 in 1 dimming function.
D-Type (option): IP67 rated. Timer dimming function,
contact MEAN WELL for details
HVGC-100 Series
HVGC-150 Series
HVGC-65 Series
Model No. Output Io Tol. Io Ripple Effi.
HVGC-100-350 A 29~285V, 350mA ±5% 5% max. 91%
HVGC-100-700 A 15~142V, 700mA ±5% 5% max. 91%
= A, B, AB or D
Model No. Output Io Tol. Io Ripple Effi.
HVGC-65-350 A 18~186V, 350mA ±5% 5% max. 90.0%
HVGC-65-500 A 13~130V, 500mA ±5% 5% max. 90.5%
HVGC-65-700 A 9~93V, 700mA ±5% 5% max. 90.5%
HVGC-65-1050 A 6~62V, 1050mA ±5% 5% max. 90.0%
= A, B, AB or D
Features
A
D
0-10VDC
0-10VDC
0-10VDC
(AB/B-Type)
(AB/B-Type)
(AB/B-Type)
B/AB
