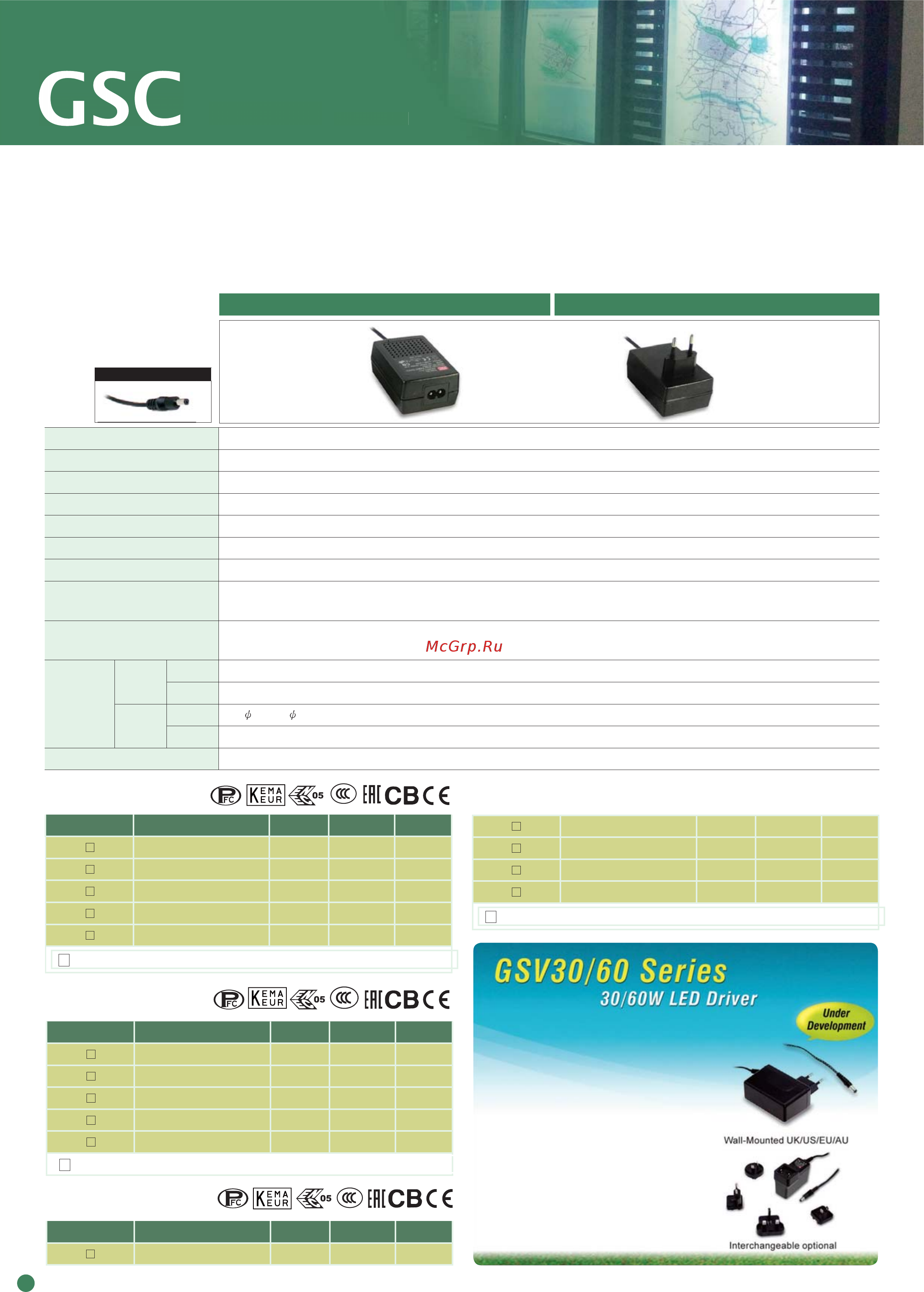

GSC18B/25B/40B GSC18E/25E/40E
OUTPUT
OUTPUT
25
GSC18 Series
GSC25 Series
GSC40 Series
Features
• Constant current mode
• No load power consumption <0.15W
• Universal AC input (90 to 277VAC) / Full range
• Isolation class II, no F.G.
• Fully isolated plastic case with IP40 level
Model No. Output Io Tol. R&N Effi.
GSC25 -350
36~72V, 350mA ±8% 7.2V 89.5%
GSC25
-500
26~52V, 500mA ±8% 5.0V 89.5%
GSC25
-700
18~36V, 700mA ±8% 3.6V 88.5%
GSC25
-1050
12~24V, 1050mA ±8% 2.4V 87.5%
GSC25
-1400
9~18V, 1400mA ±8% 1.8V 86.0%
= B / E ; B: IEC320-C8, E: European 2P
Model No. Output Io Tol. R&N Effi.
GSC18 -350
26~52V, 350mA ±8% 4.6V 89.0%
GSC18
-500
18~36V, 500mA ±8% 3.0V 88.5%
GSC18
-700
13~26V, 700mA ±8% 2.5V 88.5%
GSC18
-1050
8~17V, 1050mA ±8% 1.6V 87.0%
GSC18
-1400
6~13V, 1400mA ±8% 1.6V 85.5%
= B / E ; B: IEC320-C8, E: European 2P
GSC40 -500
40~80V, 500mA ±8% 8.0V 89.5%
GSC40
-700
29~58V, 700mA ±8% 5.8V 88.5%
GSC40
-1050
19~38V, 1050mA ±8% 3.8V 87.5%
GSC40
-1400
14~28V, 1400mA ±8% 2.9V 87.0%
= B / E ; B: IEC320-C8, E: European 2P
Model No. Output Io Tol. R&N Effi.
GSC40 -350
50~100V, 350mA ±8% 11.6V 89.5%
AC input voltage range 90~277VAC, 127~392VDC
AC inrush current (max.) Cold start, 17A at 230VAC
Setup time 500ms at full load and 230VAC
Total harmonic distortion THD<20%
Short circuit protection Hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+50
O
C ( refer to output derating curve)
Safety standards
DEKRA/ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004
approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020
Connection
Input
B-Type
IEC320-C8
E-Type
European 2P
Output
Plug
2.1 x 5.5 x11mm, C+
Cable
UL rated, UL1185 18AWG (150cm)
Dimension (LxWxH)(mm) 79x54x33
• IEC320-C8 or 2 pole EURO plug
• Economic, high reliability
• Suitable for indoor LED lighting applications
• Protection: Short circuit
• 3 years warranty
(B-Type)
(B-Type)
(B-Type)
se
ri
es
18~40
W
• Full range AC 100~264V input
• Class ˻/2 power unit, no FG
• Built-in active PFC function with
IEC61347 regulation
• Constant voltage 12V/14V design
• Protections: Short circuit / Over
load / Over voltage
• Cooling by free air convection
• No load power consumption<0.3W
• 3 years warranty
