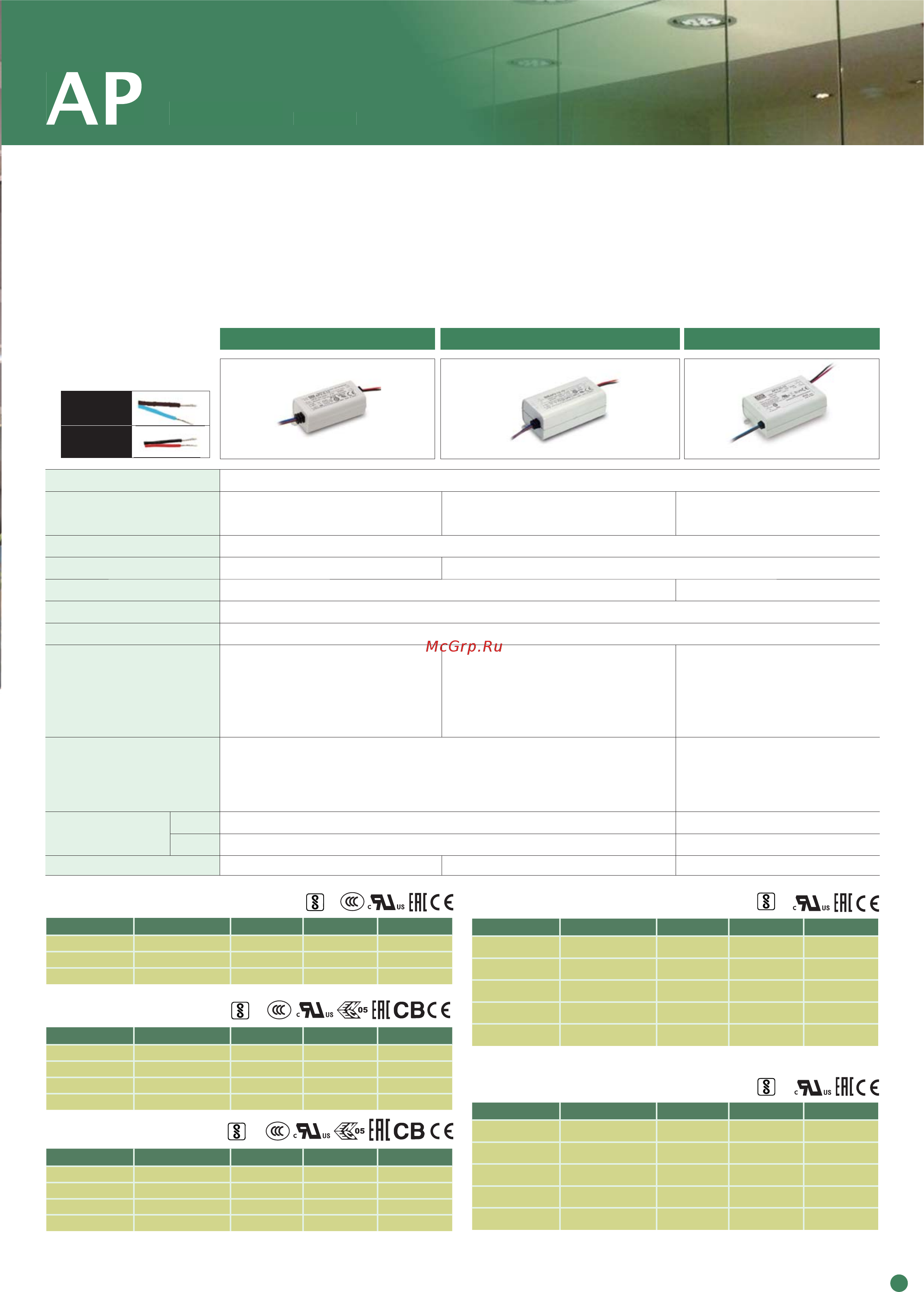

APV-8 APV-12/16 APV-25/35
INPUT
OUTPUT
s
e
r
i
e
s
8~
35
W
6
Features
• Constant voltage mode
• Universal AC input / Full range
• No load power consumption <0.5W for APV-8
• Withstand 300VAC surge input for 5 seconds (APV-25/35)
• Fully isolated plastic case with IP42 level
• Isolation class II, no F.G.
AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
APV-12: Cold start, 70A at 230VAC
APV-16: Cold start, 50A at 230VAC
Cold start, 45A at 230VAC
Overload protection >105% rated output power (110% ~160% for APV-35) hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage 110%~145% rated output voltage
Withstand voltage I/P-O/P: 3.75kVAC I/P-O/P: 3kVAC
Working temperature -30~+70
O
C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards
UL8750, EN61347-2-13 (LVD);
BIS IS15885(except for 5V);
EAC TP TC 004 approved;
Design refer to EN62368-1,
EN61347-1,-2-13; GB19510.14,
GB19510.1(optional)
UL8750, ENEC EN61347-1/2-13;
GB19510.14, GB19510.1, EAC TP
TC 004; BIS IS15885(except for 5V);
Design refer to EN62368-1
UL8750, EAC TP TC 004 approved,
BIS IS15885(except for 15V, 36V);
Design refer to EN62368-1
EMC standards
EN55032, EN61000-3-2 class A , EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11, EN61547; GB17743, GB17625.1(optional)
EN55032 class B,
EN61000-3-2 class A,
EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11
Connection
Input UL rated, 18AWGx2C (15cm) UL rated, 18AWGx2C (15cm)
Output UL rated, 20AWGx2C (15cm) UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm) 60x 30x 23.5 77x 40x 29 84x 57x 29.5
• Class 2 power unit / Pass LPS (except for APV-8)
• Economic, high reliability
• Suitable for LED strip applications
• Protections: Short circuit / Overload / Over voltage
• 2 years warranty
APV-12 Series
APV-8 Series
APV-25 Series
APV-16 Series
APV-35 Series
Model No. Output Tol. R&N Effi.
APV-12-5 5V, 0~2A ±5% 100mV 76%
APV-12-12 12V, 0~1A ±5% 120mV 82%
APV-12-15 15V, 0~0.8A ±5% 120mV 82%
APV-12-24 24V, 0~0.5A ±5% 150mV 84%
Model No. Output Tol. R&N Effi.
APV-8-5 5V, 0~1.4A ±5% 250mV 74%
APV-8-12 12V, 0~0.67A ±5% 250mV 80%
APV-8-24 24V, 0~0.34A ±5% 300mV 81%
Model No. Output Tol. R&N Effi.
APV-25-5 5V, 0~3.5A ±5% 120mV 75.5%
APV-25-12 12V, 0~2.1A ±5% 150mV 82.0%
APV-25-15 15V, 0~1.68A ±5% 150mV 83.0%
APV-25-24 24V, 0~1.05A ±5% 150mV 83.0%
APV-25-36 36V, 0~0.7A ±5% 150mV 84.0%
Model No. Output Tol. R&N Effi.
APV-16-5 5V, 0~2.6A ±5% 100mV 76%
APV-16-12 12V, 0~1.25A ±5% 120mV 80%
APV-16-15 15V, 0~1.00A ±5% 120mV 81%
APV-16-24 24V, 0~0.67A ±5% 150mV 83%
Model No. Output Tol. R&N Effi.
APV-35-5 5V, 0~5A ±5% 120mV 76.5%
APV-35-12 12V, 0~3A ±5% 150mV 83.0%
APV-35-15 15V, 0~2.4A ±5% 150mV 84.0%
APV-35-24 24V, 0~1.5A ±5% 180mV 84.0%
APV-35-36 36V, 0~1.0A ±5% 180mV 85.0%
Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.
(optional)
(except for 5 V)
(except for 15/36V)
(except for 15/36V)
(except for 15 V)
(except for 15 V)
(optional)
(optional)
