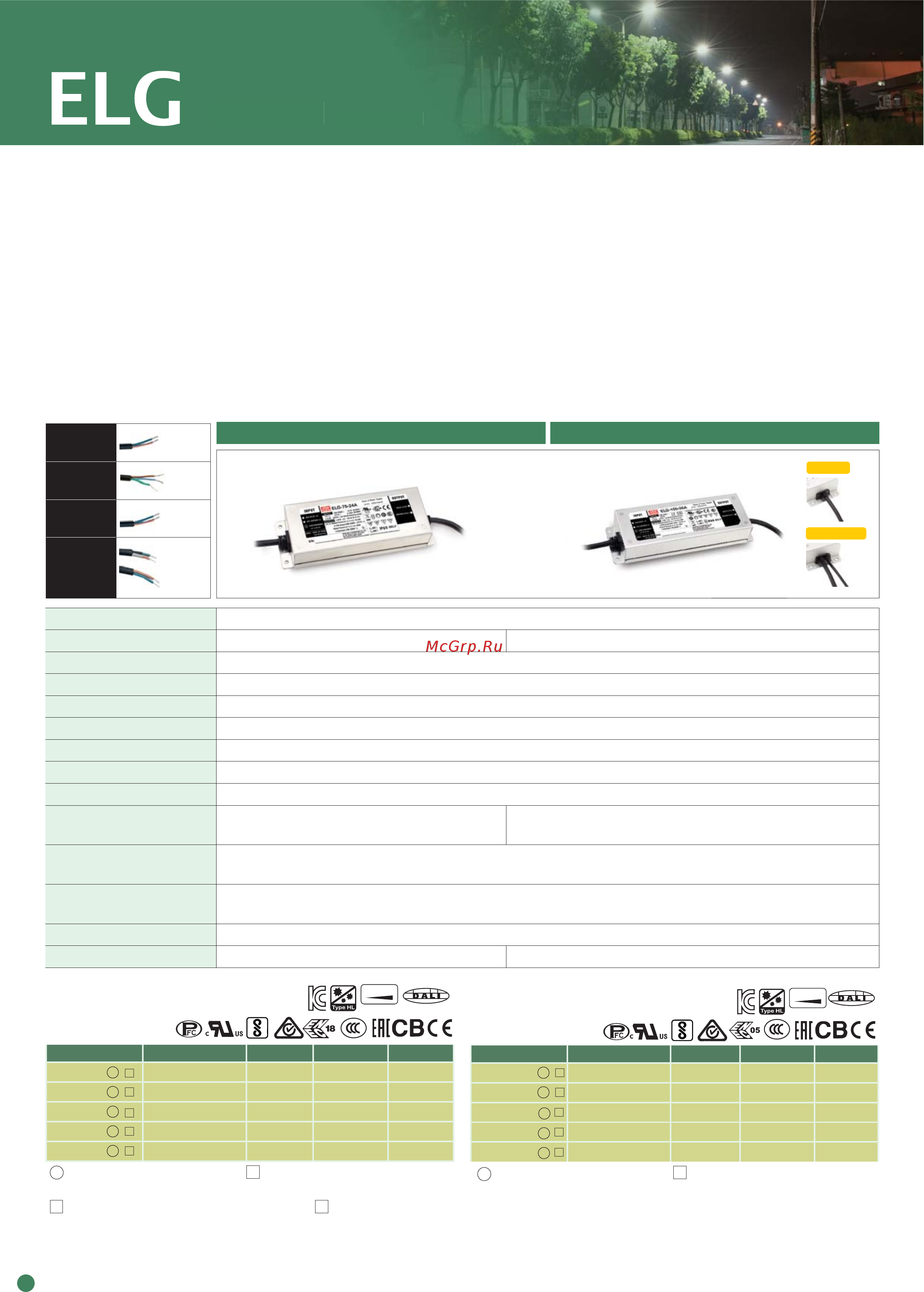

![MEAN WELL ODLC-65-1400DA [44/100] Series](/views2/1675311/page44/bg2c.png)
se
ri
es
75~100
W
ELG-75
Blank/A
B/AB/D2/DA
INPUT
INPUT
(3Y Models)
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACN
Vo
-
DIM
-
/DA
DIM+/DA
Vo+
Vo
-
ACL
ACN
ACL
FG
Vo
+
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
F
41
AC input voltage range 100~305VAC ; 142~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage (A-Type only)
Current adjustment range 50%~100% via potentiometer (A-Type only)
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Over temp. protection Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time 500ms, 100ms, 10ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC
Working temperature Tcase= -40~+85
O
C
Tcase= -40~+90
O
C (refer to "OUTPUT LOAD vs
TEMPERATURE")
Safety standards
UL8750, IEC/EN/AS/NZ61347-1,-2-13, EN62384, GB19510.1, GB19510.14, EAC TP TC 004,
BIS IS15885(refer to spec for models), KC61347-1, KC61347-2-13 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020, KC KN15, KN61547
Connection Please refer to page 47
Dimension (LxWxH) (mm) 180x 63x 35.5 199x 63x 35.5
Features
• Constant voltage+constant current modes
• Universal AC input (100 to 305VAC) / Full range
• High efficiency up to 91%
• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Class 2 power unit (ELG-75/100 only)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry / damp / wet locations with IP67
• Suitable for outdoor LED lighting applications
• Protections:
Short circuit / Over current / Over voltage / Over temp.
• Multiple models for choice:
Blank-Type: I
P67 rated. Cable for I/O connection(For harsh environment)
A-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in potentiometer
& 3 in 1 dimming function.
D2-Type: IP67 rated. Smart timer dimming function*, contact
MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
• 5 years warranty
ELG-100
ELG-75 Series
ELG-100 Series
Model No. Output Tol. R&N Effi.
ELG-75-12 A - 12V, 0~5A ±3.0% 150mV 85%
ELG-75-24 A - 24V, 0~3.15A ±3.0% 200mV 88%
ELG-75-36 A - 36V, 0~2.1A ±2.5% 250mV 89%
ELG-75-42 A - 42V, 0~1.8A ±2.5% 250mV 90%
ELG-75-48 A - 48V, 0~1.6A ±2.0% 250mV 90%
= Blank, A, B, AB, D2 or DA ; = Blank, 3Y
Model No. Output Tol. R&N Effi.
ELG-100-24 A - 24V, 0~4A ±3% 200mV 88%
ELG-100-36 A - 36V, 0~2.66A ±2.5% 250mV 89%
ELG-100-42 A -
42V, 0~2.28A ±2.5% 250mV 90%
ELG-100-48 A -
48V, 0~2A ±2% 300mV 90%
ELG-100-54 A -
54V, 0~1.78A ±2% 350mV 91%
= Blank, A, B, AB, D2 or DA ; = Blank, 3Y
0-10VDC
0-10VDC
= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
(DA-Type)(B-Type)
(DA-Type)(B-Type)
