NEWNEW
86

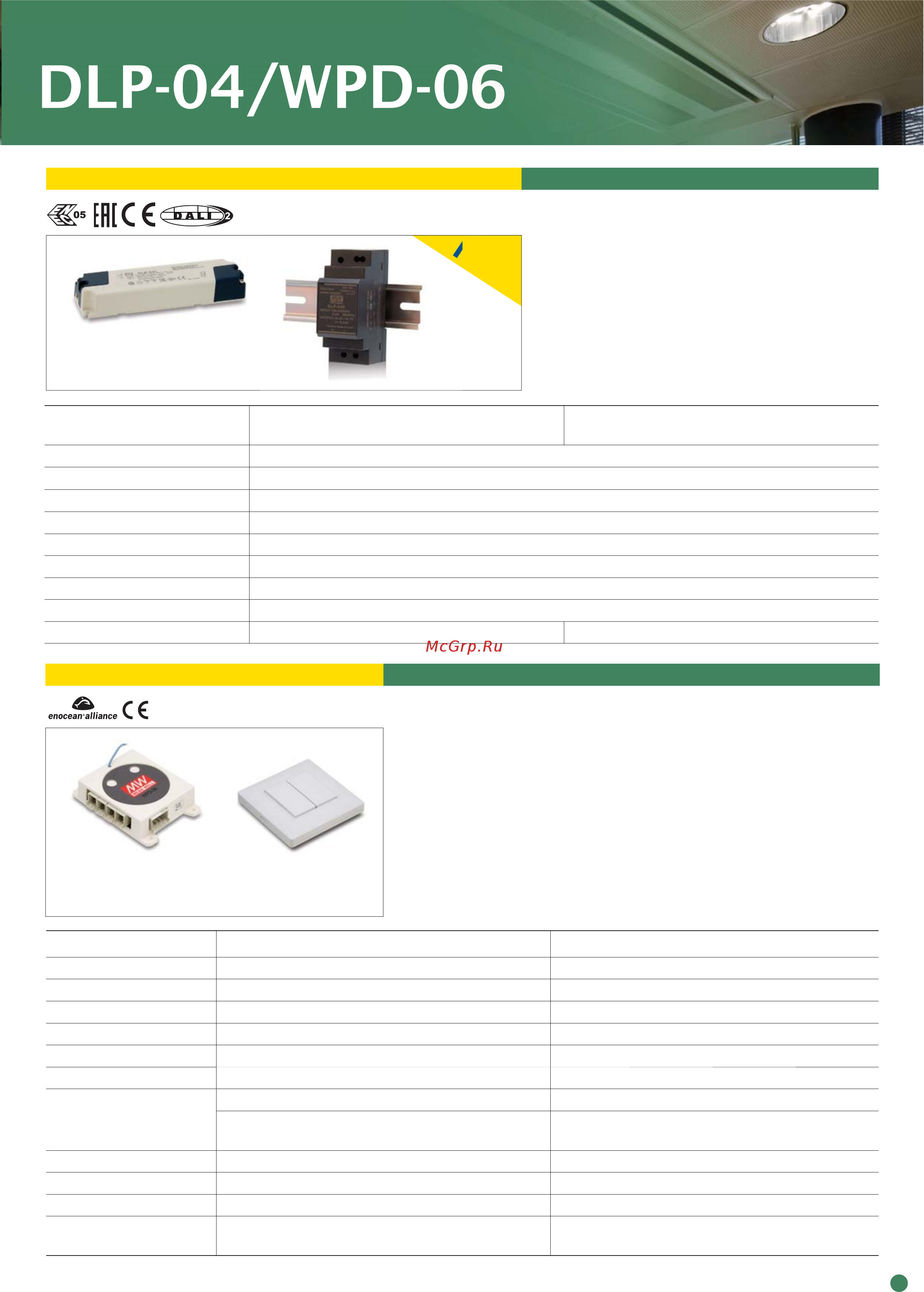

Model No. DLP-04L DLP-04R
Rated DC voltage 16V
Rated current 240mA (max.)
Input voltage range 90~264VAC ; 120~370VDC
Rated power 3.84W
Working temperature -20~+60
o
C (refer to output derating curve)
Safety standards EN61347-2-11, EAC TP TC 004 approved
DALI standards Compliance to IEC62386-101
EMC emission Compliance to En55015, EN61547, EN61000-3-2,-3, EAC TP TC 020
Dimension(mm) 145x 38x 22(LxWxH) 35x 90x 54.5 (WxHxD)
DALI Bus Power Supply
• Compact size with 2SU(35mm) width(type R)
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Isolation class II
• No load power consumption <0.5W(type L)
• Protections: Short circuit / Over voltage
• Cooling by free air convection
• 3 color LED for status indicator (type R)
• Installed on DIN rail TS-35/7.5 or 15(type R)
• 3 years warranty
DLP-04
DLP-04L
DLP-04R
N
NN
D
D
D
D
D
LP-
LP-
LP-
LP-
LP-
04
04
04
04
0
R
R
R
R
R
• EnOcean compliant products, up to 30 meters wireless distance
• Operating frequency 868MHz
(other frequency for outside EU available on request)
• WPD-06 (PWM dimmer):
- 6 protected channels, independent dimming control on each channel
- Up to 128 wireless batteryless switches connected possible
- Built-in 3 wire push dimming function ports
- Suitable for constant voltage lighting application,
Possible for constant current lighting application
- Multiple dimmer application via CANBus (optional)
- Conformal coating for highly humid environment
• WPD-06SWT (switch transmitter):
- Batteryless switch with cycles >50000 times
- Maintenance free
• 5 years warranty
Model No. WPD-06 WPD-06SWT
Input voltage range 10-32VDC SELV ---
Rated output current 4.5A each channel, 27A for the entire module ---
Rated output power 324W (input: 12V); 648W (input: 24V) ---
Output dimming range 1 to 100%; Switching frequency: 125Hz ---
DC input current 27A ---
Input standby power 1.2W (Typ.) ---
Overload protection
150% rated output power for 300ms max. ---
Electronic shut down rated at 5A. Restart
by switching on again the output of channel
---
Over voltage protection Transient protection starting at 33V ---
Transmission power --- 10mW max.
Working temperature -40~+60
O
C -25~+65
O
C
Input / Output terminal
Clamping spring disconnectable terminal for solid
or stranded copper conductors 0.25 to 2.5mm
2
---
Wireless DC Multi-channel PWM Dimmer Kit
WPD-06/WPD-06SWT
WPD-06 WPD-06SWT
110x 77x 26.4mm
(LxWxH)
80x 80x 15mm
(LxWxH)
