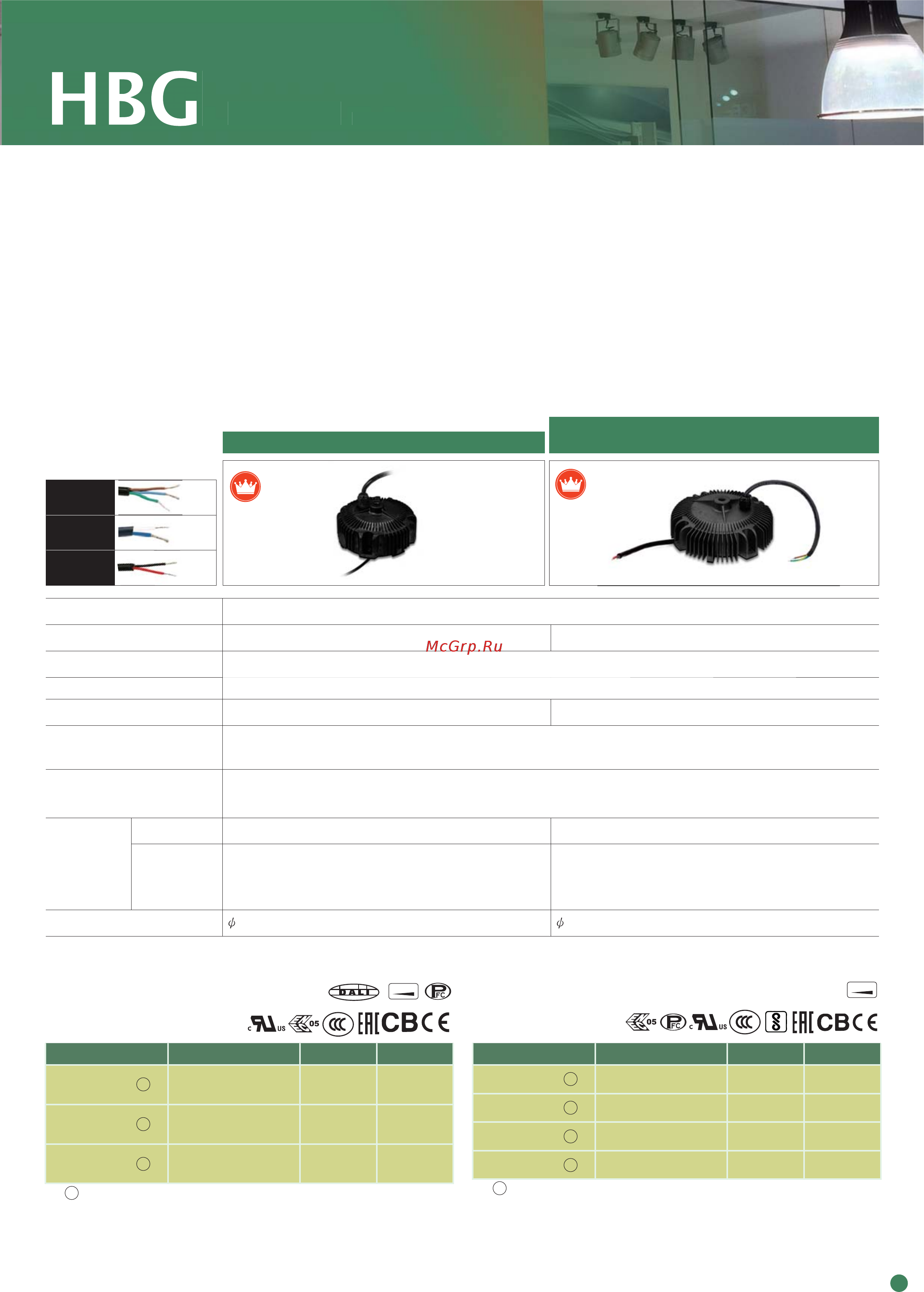

Features
• Constant voltage+constant current modes
• Universal AC input (90 to 305VAC)
• High efficiency up to 93.5%
• Patented metal housing design (Patent No.: CN201220314551)
• Suitable for dry, damp, and wet location
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• Optional RCM models available
• 5 years warranty
HBG-240
HBG-240(DA)
HBG-200(DA)
• Multiple models for choice:
Blank-Type:
IP67 rated. Cable for I/O connection(For harsh environment)
A-Type: IP65 rated. Constant current level can be adjusted
through internal potentiometer
B-Type: IP67 rated and
built-in 3 in 1 dimming function,
PWM signal, or resistance,
0~10VDC(HBG-200), 1~10VDC(HBG-240)
AB-Type: IP65 rated. Constant current level can be adjusted
through internal potentiometer,
3 in 1 dimming
function
DA-Type: IP67 rated. DALI control technology
HBG-240 Series
HBG-200 Series
Model No. Output Tol. Effi.
HBG-240-24 A 24V, 0~10A ±2% 92.5%
HBG-240-36 A 36V, 0~6.7A ±2% 92.5%
HBG-240-48 A 48V, 0~5A ±2% 93.0%
HBG-240-60 A 60V, 0~4A ±2% 93.5%
= A, B, AB, DA or Blank
Model No. Output Tol. Effi.
HBG-200-36 A 36V, 0~5.5A ±2% 92%
HBG-200-48 A 48V, 0~4.1A ±2% 93%
HBG-200-60 A 60V, 0~3.3A ±2% 93.5%
= A, B, AB, DA or Blank
1-10VDC
0-10VDC
AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 85A at 230VAC Cold start, 75A at 230VAC
Setup, rise, hold up time 500ms, 200ms/230VAC; 2500ms, 200ms/115VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature
-40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE") -40~+75
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, BIS IS15885(refer to
spec for HBG-240 models), EAC TP TC 004
EMC standards
EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1,EAC TP TC 020
Connection
Input SJTW 18AWGx3C (30cm) SJTW 18AWGx3C (30cm)
Output
A & Blank-Type: SJTW 18AWGx2C (20cm)
B & AB & DA-Type: SJTW 18AWGx2C (20cm)+
SVT 18AWGx2C (30cm)
A & Blank-Type: SJTW 18AWGx3C (30cm)
B&DA-Type : SJTW 14AWGx2C (30cm) +
SVT 18AWGx2C (30cm)
Dimension (DxH)(mm)
151.68x 66.5 191.5x 69
Type HL
(48A, 60A)
