![MEAN WELL IDLC-25A-500 [35/100] Series](/views2/1675311/page35/bg23.png)

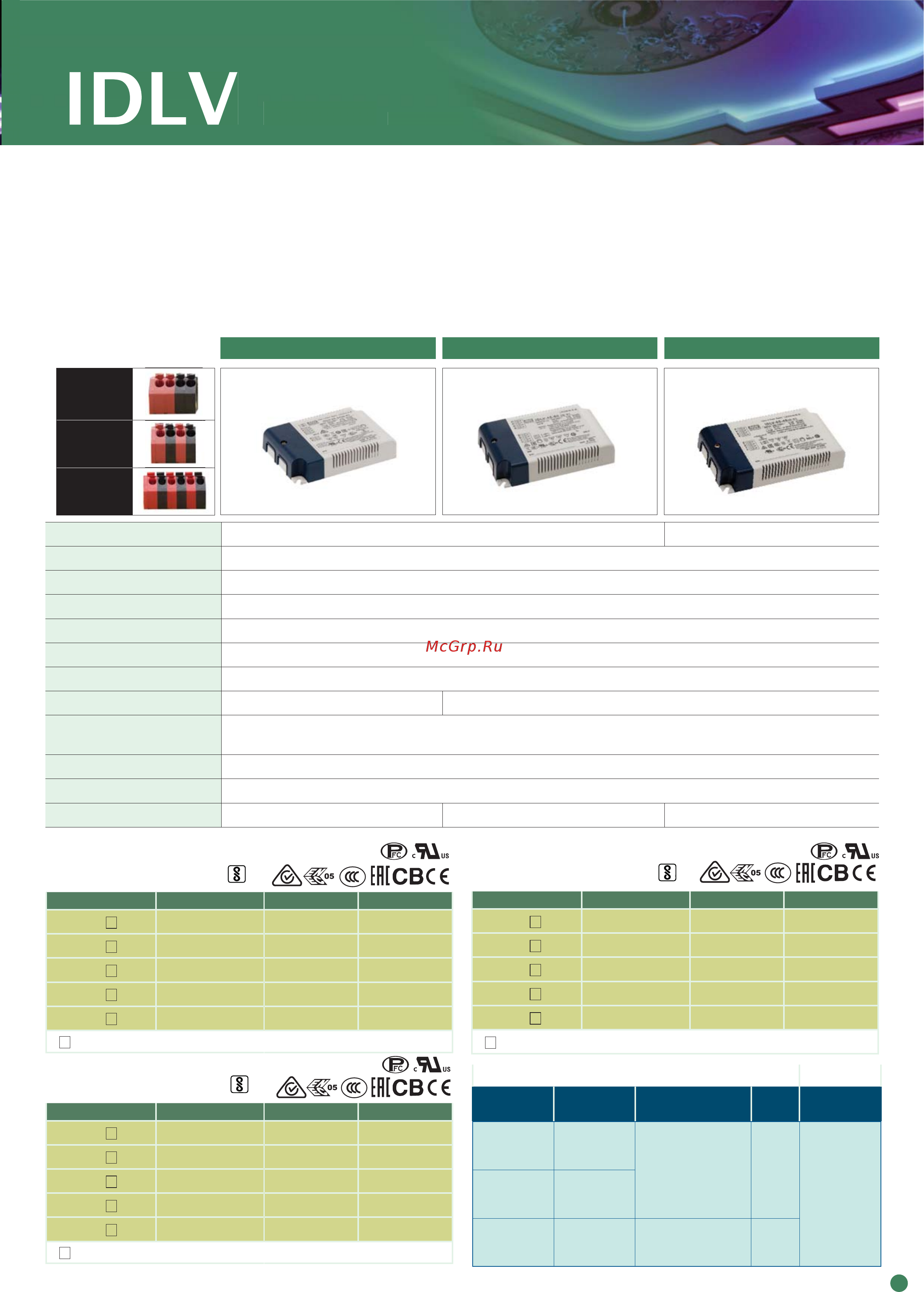

IDLV-45(A)IDLV-25(A) IDLV-65(A)
INPUT
OUTPUT
(Blank-Type)
OUTPUT
(A-Type)
32
• Constant voltage PWM style output mode
• IDLV-25/45: 90~295VAC input
IDLV-65: 180~295VAC input only
• High efficiency up to 90%
• No load power consumption <0.5W (Blank-Type)
• Fully isolated plastic case with IP20 level
AC input voltage range 90 ~ 295VAC ; 127 ~ 417VDC 180 ~ 295VAC; 254~417VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Setup time 500ms / 230AVC
PWM dimming signal 10V PWM signal, frequency range 300Hz~3kHz
Total harmonic distortion THD<20%
Short circuit protection Shut down o/p voltage, repower on to recover
Withstand voltage I/P-O/P: 3.75KVAC
Working temperature Tcase= -20~+90
o
C Tcase= -20~+85
o
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, ENEC EN/AS/NZS61347-1, EN/AS/NZS61347-2-13, EN62384, GB19510.14, GB19510.1,
EAC TP TC 004, BIS IS15885(for 12V,24V,48V only) approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020
Connection (Input/Output) 4+4P push-in terminal block for Blank-Type, 4+6P for A-Type
Dimension (LxWxH) mm 110 x 75 x 22 120 x 75 x 25 130 x 75 x 25
• Isolation class
II, no F.G.
• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)
• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for indoor LED strip lighting
• Protection: Short circuit / Over current
• 3 years warranty
IDLV-45/45A Series
IDLV-25/25A Series
IDLV-65/65A Series
Model No. Output Tol. Effi.
IDLV-45 -12
12V, 0~3A ±10% 84%
IDLV-45
-24
24V, 0~1.88A ±10% 86%
IDLV-45
-36
36V, 0~1.25A ±10% 88%
IDLV-45
-48
48V, 0~0.94A ±10% 88%
IDLV-45
-60
60V, 0~0.75A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
Model No. Output Tol. Effi.
IDLV-25 -12
12V, 0~1.8A ±10% 80%
IDLV-25
-24
24V, 0~1.05A ±10% 81%
IDLV-25
-36
36V, 0~0.7A ±10% 82%
IDLV-25
-48
48V, 0~0.52A ±10% 83%
IDLV-25
-60
60V, 0~0.42A ±10% 84%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
IDL / IDP / ODL Series Difference
Series Type AC Input Range IP Output Mode
IDLC
IDLV
Plastic case
with T.B.
90~295VAC IP20
IDLC/IDPC/
ODLC:
C.C. mode
IDLV/IDPV/
ODLV:
C.V. mode
IDPC
IDPV
PCB Type
ODLC
ODLV
Plastic case
with wire
180~295VAC IP67
Model No. Output Tol. Effi.
IDLV-65 -12
12V, 0~4.2A ±10% 85%
IDLV-65
-24
24V, 0~2.4A ±10% 87%
IDLV-65
-36
36V, 0~1.8A ±10% 88%
IDLV-65
-48
48V, 0~1.35A ±10% 89%
IDLV-65
-60
60V, 0~1.08A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
(for 12V,24V,48V only)
(for 12V,24V,48V only)
(for 12V,24V,48V only)
s
e
r
i
e
s
25
~6
5W
Features
