se
ri
es
30~100
W
36
INPUT OUTPUT
Features
• Constant current mode
(Constant voltage + constant current modes for PLC-100)
• Universal AC input / Full range
• Fully isolated plastic case with screw terminal style I/O
• Adjustable output voltage and current level
• Class 2 power unit / Pass LPS
• Isolation class II, no F.G. for PLC-30
• Suitable for LED lighting and LED sign applications
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• Cooling by free air convection
• 2 years warranty
PLC-30
PLC-100

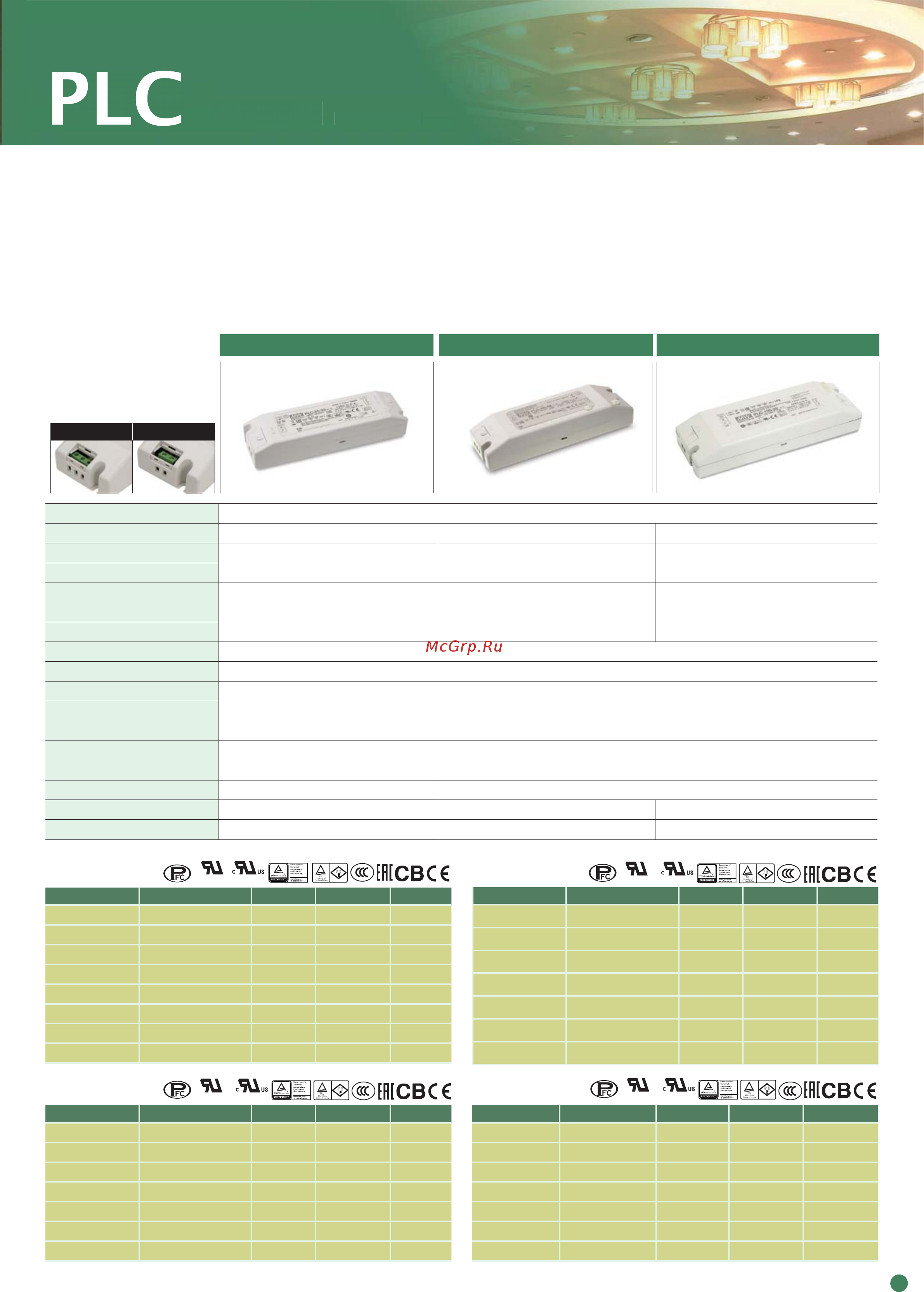

PLC-30 Series
PLC-45 Series
Model No. Output Tol. R&N Effi.
PLC-30-9 9V, 0~3.3A ±10% 2.6V 80.0%
PLC-30-12 12V, 0~2.5A ±10% 2.0V 82.5%
PLC-30-15 15V, 0~2.0A ±10% 2.6V 83.5%
PLC-30-20 20V, 0~1.5A ±10% 2.6V 84.0%
PLC-30-24 24V, 0~1.25A ±10% 2.4V 84.0%
PLC-30-27 27V, 0~1.12A ±10% 2.3V 84.5%
PLC-30-36 36V, 0~0.84A ±10% 3.6V 85.0%
PLC-30-48 48V, 0~0.63A ±10% 3.7V 85.5%
Model No. Output Tol. R&N Effi.
PLC-45-12 12V, 0~3.8A ±10% 2.0V 83.5%
PLC-45-15 15V, 0~3.0A ±10% 2.4V 85.0%
PLC-45-20 20V, 0~2.3A ±10% 1.8V 86.5%
PLC-45-24 24V, 0~1.9A ±10% 2.7V 86.5%
PLC-45-27 27V, 0~1.7A ±10% 2.7V 86.5%
PLC-45-36 36V, 0~1.25A ±10% 3.6V 87.5%
PLC-45-48 48V, 0~0.95A ±10% 4.6V 87.5%
Model No. Output Tol. R&N Effi.
PLC-60-12 12V, 0~5.0A ±10% 2.0V 85.0%
PLC-60-15 15V, 0~4.0A ±10% 2.4V 86.0%
PLC-60-20 20V, 0~3.0A ±10% 1.8V 87.5%
PLC-60-24 24V, 0~2.5A ±10% 2.4V 87.0%
PLC-60-27 27V, 0~2.3A ±10% 2.7V 88.0%
PLC-60-36 36V, 0~1.7A ±10% 3.6V 89.0%
PLC-60-48 48V, 0~1.3A ±10% 4.6V 89.0%
PLC-60 Series
PLC-100 Series
Model No. Output Tol. R&N Effi.
PLC-100-12 12V, 0~5.0A ±3% 150mV 83.0%
PLC-100-15 15V, 0~5.0A ±3% 150mV 85.0%
PLC-100-20 20V, 0~4.8A ±3% 150mV 88.5%
PLC-100-24 24V, 0~4.0A ±3% 150mV 88.5%
PLC-100-27 27V, 0~3.55A ±3% 150mV 88.0%
PLC-100-36 36V, 0~2.65A ±2% 150mV 88.0%
PLC-100-48 48V, 0~2.0A ±2% 200mV 88.5%
PLC-45/60
AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC Cold start, 40A at 230VAC
DC adjustment range 95%~110% rated output voltage 90%~110% rated output voltage 85%~100% rated output voltage
Current adjustment range 75%~103% 75%~100%
Over current protection
100%~110% constant current
limiting, auto-recovery
95%~110% constant current
limiting, auto-recovery
95%~102% constant current
limiting, auto-recovery
Over voltage protection 110%~155% rated output voltage 115%~140% rated output voltage 107%~135% rated output voltage
Setup time 500ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC
Working temperature -30~+50
O
C (refer to output derating curve)
Safety standards
UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,
EAC TP TC 004 approved; TUV EN62368-1 approved for PLC-100 only
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1
Connection (Input / Output) 2+2P screw terminal block 3+2P screw terminal block
Dimension (LxWxH)(mm) 160x 46x 30 181.5x 62x 35 200.5x 69.5x 35
Packing 0.2kg ; 70pcs / 15kg 0.41kg ; 30pcs / 13.3kg 0.52kg ; 25pcs / 14kg
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
(for 48V only)
(for 48V only)
(for 48V only)
(for 48V only)
(for 9~36V)
(for 12~36V)
(for 12~36V)
(for 12~36V)
