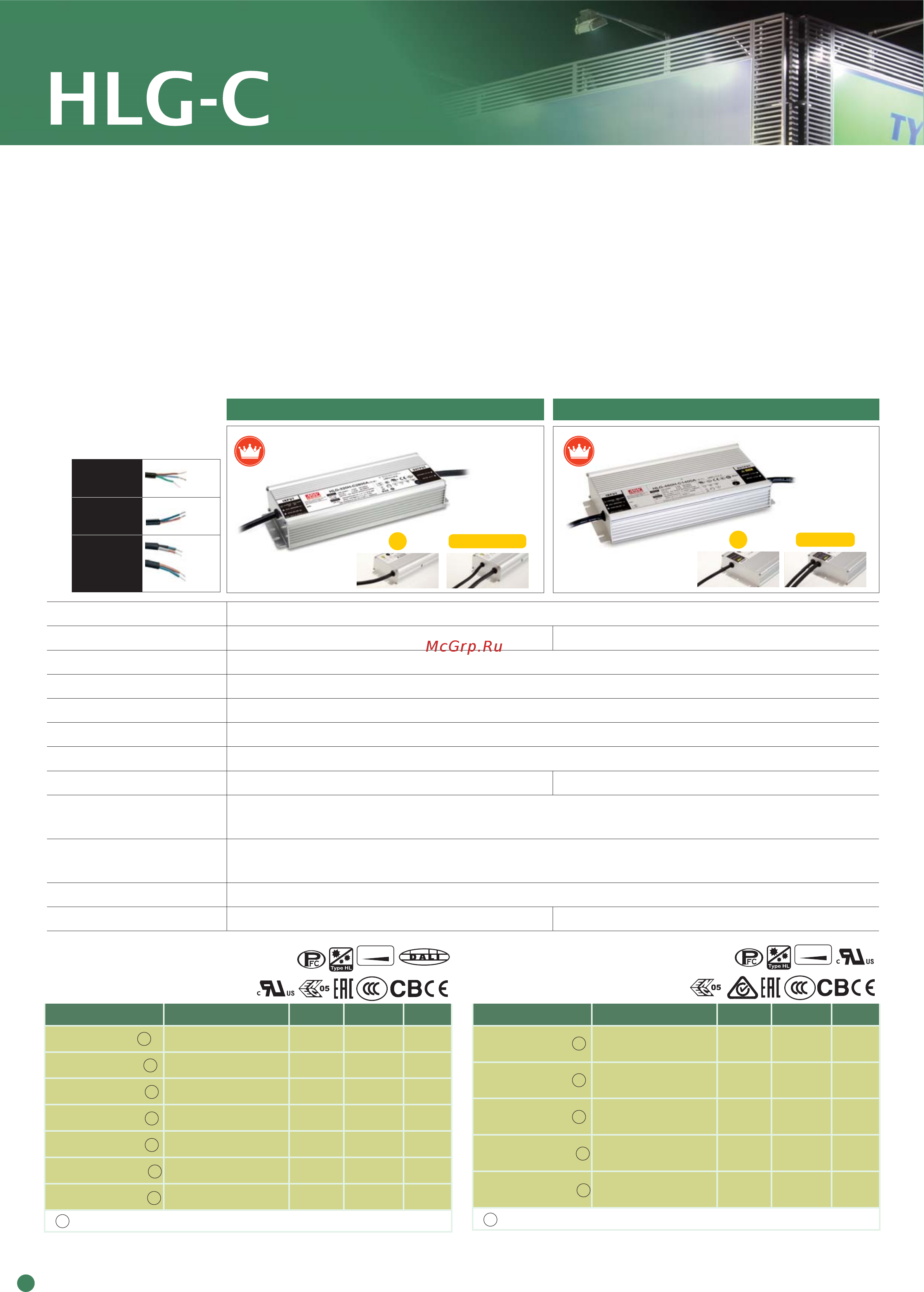

HLG-320H-C HLG-480H-C
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
Vo
-
DIM
-
DIM+
Vo+
Vo
-
Vo+
ACN
ACL
FG
55
Model No. Output Io Tol. Io Ripple Effi.
HLG-320H-C700 A 214~428V, 700mA
±5%
5% max. 94.0%
HLG-320H-C1050 A 152~305V, 1050mA
±5%
5% max. 94.0%
HLG-320H-C1400 A 114~229V, 1400mA
±5%
5% max. 94.0%
HLG-320H-C1750 A 91~183V,1750mA
±5%
5% max. 94.0%
HLG-320H-C2100 A 76 ~ 152V, 2100mA
±5%
5% max. 94.0%
HLG-320H-C2800 A 57~114V, 2800mA
±5%
5% max. 94.0%
HLG-320H-C3500 A 46~91V, 3500mA
±5%
5% max. 94.0%
= A, B, AB, D2 or DA
Model No. Output Io Tol. Io Ripple Effi.
HLG-480H-C1400 A 171~341V, 1400mA
±5%
5% max. 95.0%
HLG-480H-C1750 A 137~274V,1750mA
±5%
5% max. 95.0%
HLG-480H-C2100 A 114~229V, 2100mA
±5%
5% max. 95.0%
HLG-480H-C2800 A 85~171V, 2800mA
±5%
5% max. 95.0%
HLG-480H-C3500 A 68~137V, 3500mA
±5%
5% max. 95.0%
= A, B, AB or D2
AC input voltage range 90~305VAC; 127VDC~431VDC
AC inrush current (max.) Cold start, 70A at 230VAC Cold start, 35A at 230VAC
Current adjustment range
50%~100% via potentiometer (A-Type only)
Short circuit protection Constant current limiting, auto-recovery
Over voltage protection 105%~120%, Shut down o/p voltage, re-power on to recover
Setup time 500ms at full load and 230VAC
Withstand voltage I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC
Working temperature
-40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE") -40~+90
O
C(refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, AS/NZS60950.1(HLG-480-C), ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,
GB19510.1, EAC TP TC 004 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020
Connection Please refer to page 64
Dimension (LxWxH)(mm) 252x 90x 43.8 262x 125x 43.8
• Constant current mode
• Universal AC input (90 to 305VAC)/ Full range
• High efficiency up to 95%
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry, damp, and wet location
• Suitable for
outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• Environment-adaptive driving capability (HLG-480H-C)
• 7 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in potentiometer
& 3 in 1 dimming function.
D2-Type (option): IP67 rated.
Smart timer dimming function*,
contact MEAN WELL for details
DA-Type (option): IP67 rated.
DALI control technology
(HLG-320H-C only)
Features
HLG-320H-C Series (320W) HLG-480H-C Series (480W)
A
A
B/AB/DA/D2
B/AB/D2
0-10VDC
0-10VDC
(AB/B-Type)
(AB/B-Type)
(DA-Type)
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
