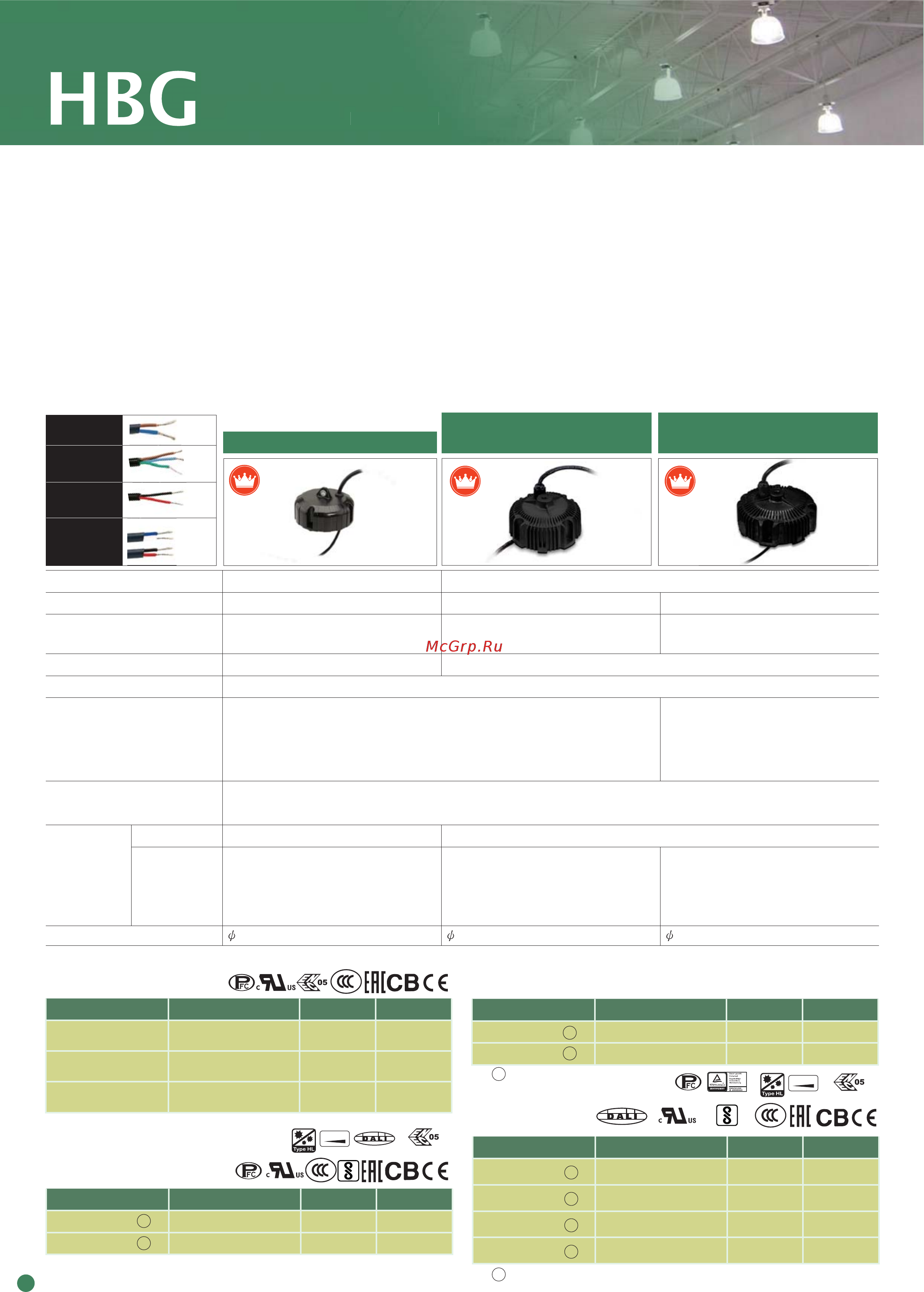

![MEAN WELL NPF-120D-30BE [70/100] Series](/views2/1675311/page70/bg46.png)
se
ri
es
6
0~160
W
INPUT
(HBG-60)
INPUT
(HBG-100/160/240)
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACL
ACL
FG
ACN
ACN
Vo+
Vo
-
DIM
-
DIM+
Vo
-
Vo+
67
Features
•Constant current mode (HBG-60/100)
Constant voltage+constant current modes (HBG-160)
•Universal AC input 90 to 305VAC
•Patented metal housing design for HBG-100/160
(Patent No.: CN201220314551)
Fully isolated plastic case (HBG-60)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires (HBG-100/160)
• Isolation class II/2, no F.G. (HBG-60)
•Suitable for dry, damp, and wet location
•Protections: Short circuit / Over current / Over voltage /
Over temp. (Short circuit / Over temp. for HBG-60)
HBG-160
HBG-160(DA)
HBG-100
HBG-100(DA)
HBG-60
•Multiple models for HBG-100/160
Blank-Type:
IP67 rated. Cable for I/O connection(For harsh environment)
A-Type: IP65 rated. Constant current level can be adjusted
through internal potentiometer
B-Type: IP67 rated and
built-in 3 in 1 dimming function
(1~10VDC, PWM signal, or resistance)
AB-Type: IP65 rated. Constant current level can be adjusted
through internal potentiometer,
3 in 1 dimming function
DA-Type: IP67 rated. DALI control technology
•5 years warranty
HBG-100 Series (C.C. mode)
HBG-60 Series (C.C. mode)
HBG-160 Series
Model No. Output Io Tol. Effi.
HBG-100-24 A 24V, 0~4A ±5% 90.5%
HBG-100-36 A 36V, 0~2.7A ±5% 91.0%
Model No. Output Io Tol. Effi.
HBG-100-48 A 48V, 0~2A ±5% 91.0%
HBG-100-60 A 60V, 0~1.6A ±5% 91.5%
= A, B, AB, DA or Blank
Model No. Output Io Tol. Effi.
HBG-60-1050 37~55V, 1050mA ±5% 90%
HBG-60-1400 28~43V, 1400mA ±5% 89%
HBG-60-2100 19~29V, 2100mA ±5% 89%
Model No. Output Tol. Effi.
HBG-160-24 A 24V, 0~6.5A ±2% 92.0%
HBG-160-36 A 36V, 0~4.4A ±2% 92.0%
HBG-160-48 A 48V, 0~3.3A ±2% 93.0%
HBG-160-60 A 60V, 0~2.6A ±2% 93.5%
= A, B, AB, DA or Blank
TYPE HL
Type HL
1-10VDC
1-10VDC
AC input voltage range 90~295VAC ; 127~417VDC 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 45A at 230VAC Cold start, 60A at 230VAC Cold start, 65A at 230VAC
Setup, rise, hold up time
500ms
at 230VAC for setup time
500ms, 80ms, 12ms
at full load and 230VAC
500ms, 200ms, 12ms
at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 ,
GB19510.14, GB19510.1, EAC TP TC 004 approved
UL8750, TUV EN61347-1,
EN61347-2-13, GB19510.14,
GB19510.1, EAC TP TC 004
approved; Design refer to
TUV EN62368
EMC standards
EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11; EN61547, GB17743,
GB17625.1, EAC TP TC 020
Connection
Input SJTW 18AWGx2C (30cm) SJTW 18AWGx3C (30cm)
Output SVT 18AWGx2C (20cm)
A & Blank Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
UL2517 22AWGx2C (30cm)
A & Blank Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
SVT 18AWGx2C (30cm)
Dimension (DxH)(mm)
110x 60.5 130x 66.5 151.68x 66.5
(B-Type)
(B-Type)
(except for DA-Type)
(for DA-Type only)
(for DA-Type only)
(for DA-Type only)
(36A,48A,48B,60A,60DA)
(for DA-Type only)
