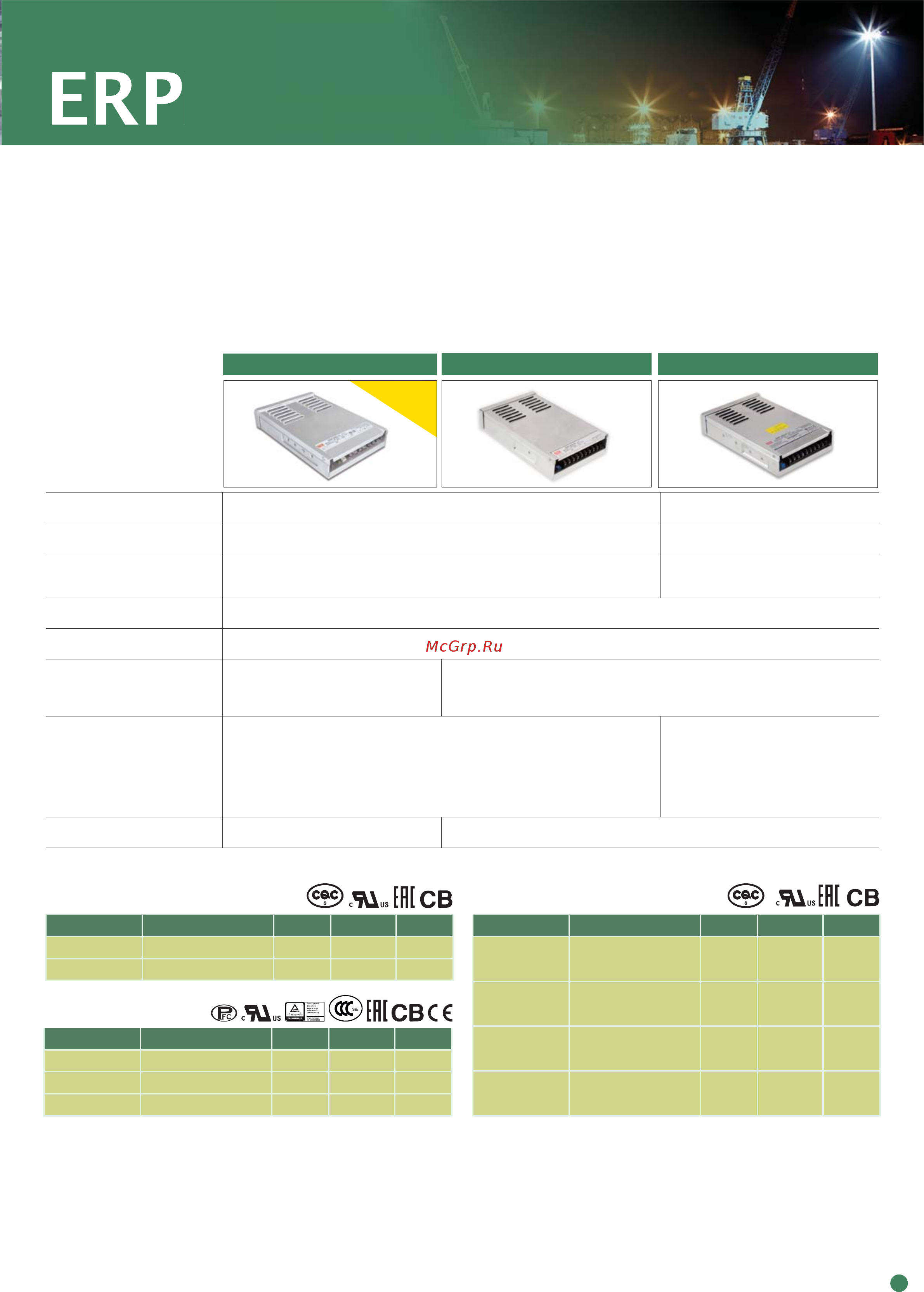

se
ri
e
es
200~400
W
NEWNEW
70
Features Applications
•Constant voltage mode output
•Built-in active PFC function (for ERPF-400 only)
•Withstand 300VAC surge input for 5 seconds
• Design against rain splash
•LED indicator for power on
•Protections: Short circuit / Over voltage / Over temp.
•3 years warranty
ERPF-400ERP-350
ERP-200
• LED strip lighting
• LED channel letters
• LED decoration lighting
• LED sinage & display
ERPF-400 Series
ERP-200 Series
ERP-350 Series
Model No. Output Tol. R&N Effi.
ERP-200-12 12V, 0~16.8A ±1.0%
150mV
87%
ERP-200-24 24V, 0~8.33A ±1.0%
150mV
89%
Model No. Output Tol. R&N Effi.
ERP-350-12 12V, 0~26.7A ±1.0%
150mV
87%
ERP-350-24 24V, 0~14.6A ±1.0%
150mV
89%
ERP-350-36 36V, 0~9.7A ±1.0% 240mV 90%
ERP-350-48 48V, 0~7.3A ±1.0% 240mV 90%
Model No. Output Tol. R&N Effi.
ERPF-400-12 12V, 0~30A ±1.0%
150mV
89%
ERPF-400-24 24V, 0~16.7A ±1.0%
150mV
90%
ERPF-400-48 48V, 0~8.3A ±1.0% 240mV 91%
AC input voltage range 180~264VAC ; 254~370VDC 90~264VAC ; 127~370VDC
AC inrush current 90A/230VAC cold start45A/115VAC,90A/230VAC
Setup, rise time 1500ms, 200ms/230VAC
2000ms,100ms/230VAC;3000ms,
100ms/115VAC at full load
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature
-30~+60˫(Refer to output load derating curve)
Safety standards
UL60950-1, IEC62368-
1,GB4943.12011,
EAC TP TC 004
IEC/EN/UL 60950-1,CCC GB4943.1-2011, EAC TP TC 004 approved
EMC standards
EN55022 (CISPR22) class A, EN61000-4-5;light industry level,criteria
A,EAC TP TC 020
EN55032 (CISPR32) class A,
GB9254 classA, GB17625.1;
EN61000-3-2;EN61000-3-3,
EAC TP TC 020;EN61000-4-
2,3,4,5,6,8,11;light industry
level,criteria A
Dimension (DxH)(mm) 200x 120x 40 220.4x 130x 48
