MEAN WELL CLG-150-20A [48/100] Series

MEAN WELL ELG-75-C350D2-3Y [48/100] Series
ELG-200-CELG-150-C/ELGT-150-C
Blank/A
INPUT
INPUT
(3Y Models)
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACN
Vo
-
DIM
-
DIM+
Vo+
Vo
-
ACL
Vo
+
ACN
ACL
FG
B/AB/D2/DA
= Blank, 2-wire input for standard mode ;
= 3Y, 3-wire input for standard mode.
*MEAN WELL Smart timer dimming primarily provides the adaptive
proportion dimming profile for the output constant current level.
45

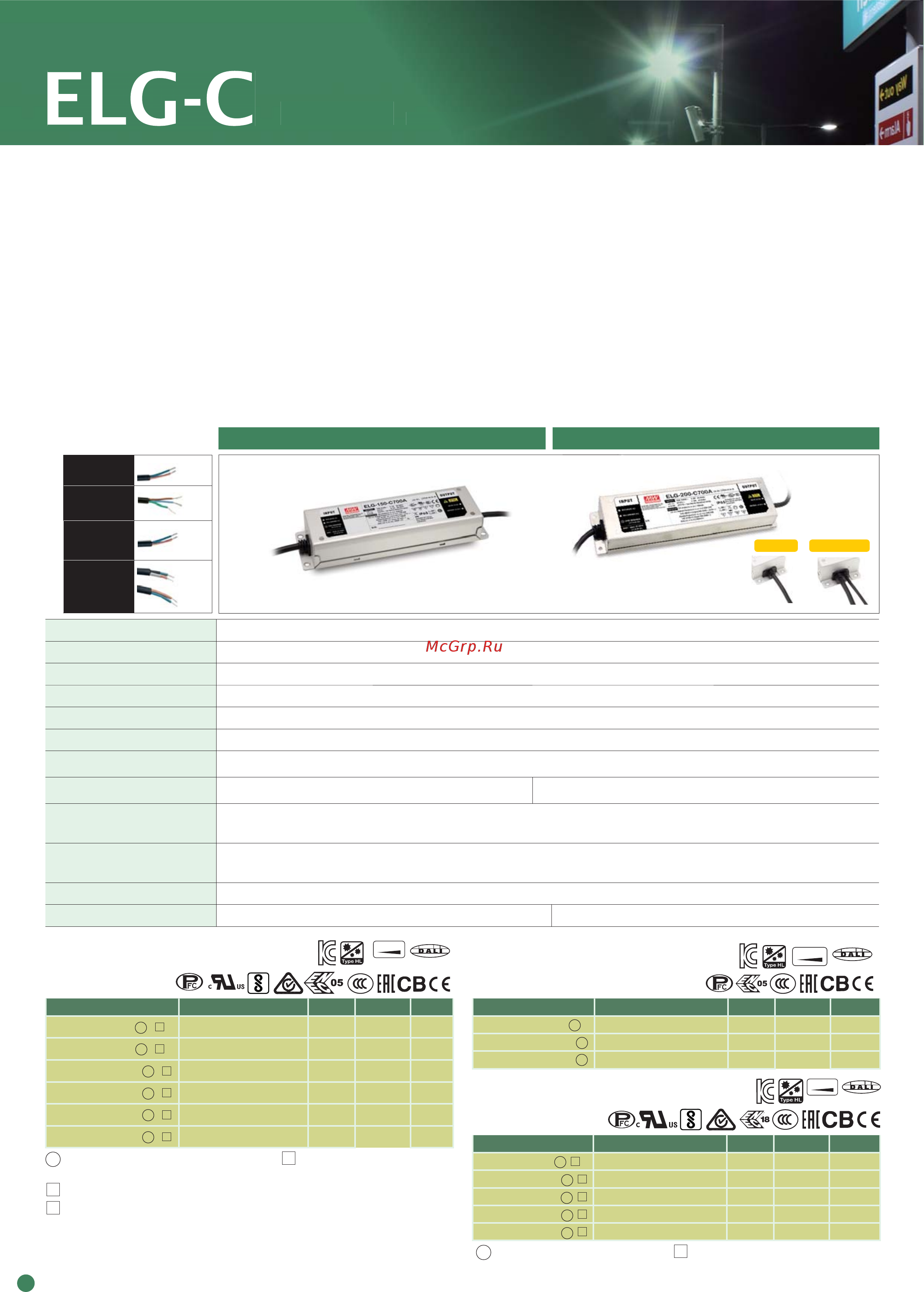

ELG-150-C Series ELGT-150-C Series
Model No. Output Tol. Io Ripple Effi.
ELG-150-C500 A -
150~300V, 500mA ±5% 5% 92%
ELG-150-C700 A -
107~214V, 700mA ±5% 5% 92%
ELG-150-C1050 A -
72~143V, 1050mA ±5% 5% 92%
ELG-150-C1400 A -
54~107V, 1400mA ±5% 5% 91%
ELG-150-C1750 A -
43~86V, 1750mA ±5% 5% 91%
ELG-150-C2100 A -
36~72V, 2100mA ±5%
5%
91%
= Blank, A, B, AB, D2, DA or BE ; = Blank, 3Y
Model No. Output Tol. Io Ripple Effi.
ELGT-150-C700 A 107~214V, 700mA ±5% 5% 92%
ELGT-150-C1050 A 72~143V, 1050mA ±5% 5% 92%
ELGT-150-C1400 A 54~107V, 1400mA ±5%
5%
91%
0-10VDC
(DA-Type)
(B & BE-Type)
AC input voltage range 100~305VAC; 142~431VDC
AC inrush current (max.) Cold start, 65A at 230VAC
Current adjustment range 50%~100% via potentiometer (A-Type only)
Over voltage protection 105%~145% rated output voltage
Over temperature protection Shut down o/p voltage, re-power on to recover
Setup time 500ms at 230VAC
Withstand voltage I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC for ELG-150/200-C; I/P-CASE: 3.75kVAC for ELGT-150-C
Working temperature(Tcase)
-40~+90
O
C (
refer to "OUTPUT LOAD vs TEMPERATURE"
) -40~+85
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved,
BIS IS15885(ELG-150-C700A/1050A, 700DA only),KC61347-1, KC61347-2-13
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020,
KC KN15, KN61547
Connection Please refer to page 47
Dimension (LxWxH) (mm) 219x 63x 35.5 244x 71x 37.5
Features
• Constant current mode
• Compliant with class II design (ELGT-150-C only)
• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 93%
• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry / damp / wet locations with IP67
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• 5 years warranty
• Multiple models for choice:
Blank-Type:
IP67 rated. Cable for I/O connection(For harsh environment)
A-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in potentiometer
& 3 in 1 dimming function.
D2-Type: IP67 rated. Smart timer dimming function*,
contact MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA
auxiliary output(ELG-150-C only)
se
ri
es
150~
2
20
20
0
2
2
0W
W
W
W
0W
0
W
0
W
ELG-200-C Series
Model No. Output Tol. Io Ripple Effi.
ELG-200-C700 A -
142~286V, 700mA ±5% 5% 93%
ELG-200-C1050 A -
95~190V, 1050mA ±5% 5% 93%
ELG-200-C1400 A -
71~142V, 1400mA ±5% 5% 92%
ELG-200-C1750 A -
57~114V, 1750mA ±5% 5% 92%
ELG-200-C2100 A -
48~96V, 2100mA ±5% 5% 92%
= Blank, A, B, AB, D2 or DA ; = Blank, 3Y
0-10VDC
(DA-Type)(B-Type)
0-10VDC
(DA-Type)
