MEAN WELL CLG-150-20A [57/100] Series
![MEAN WELL ELG-200-C1750 [57/100] Series](/views2/1675311/page57/bg39.png)

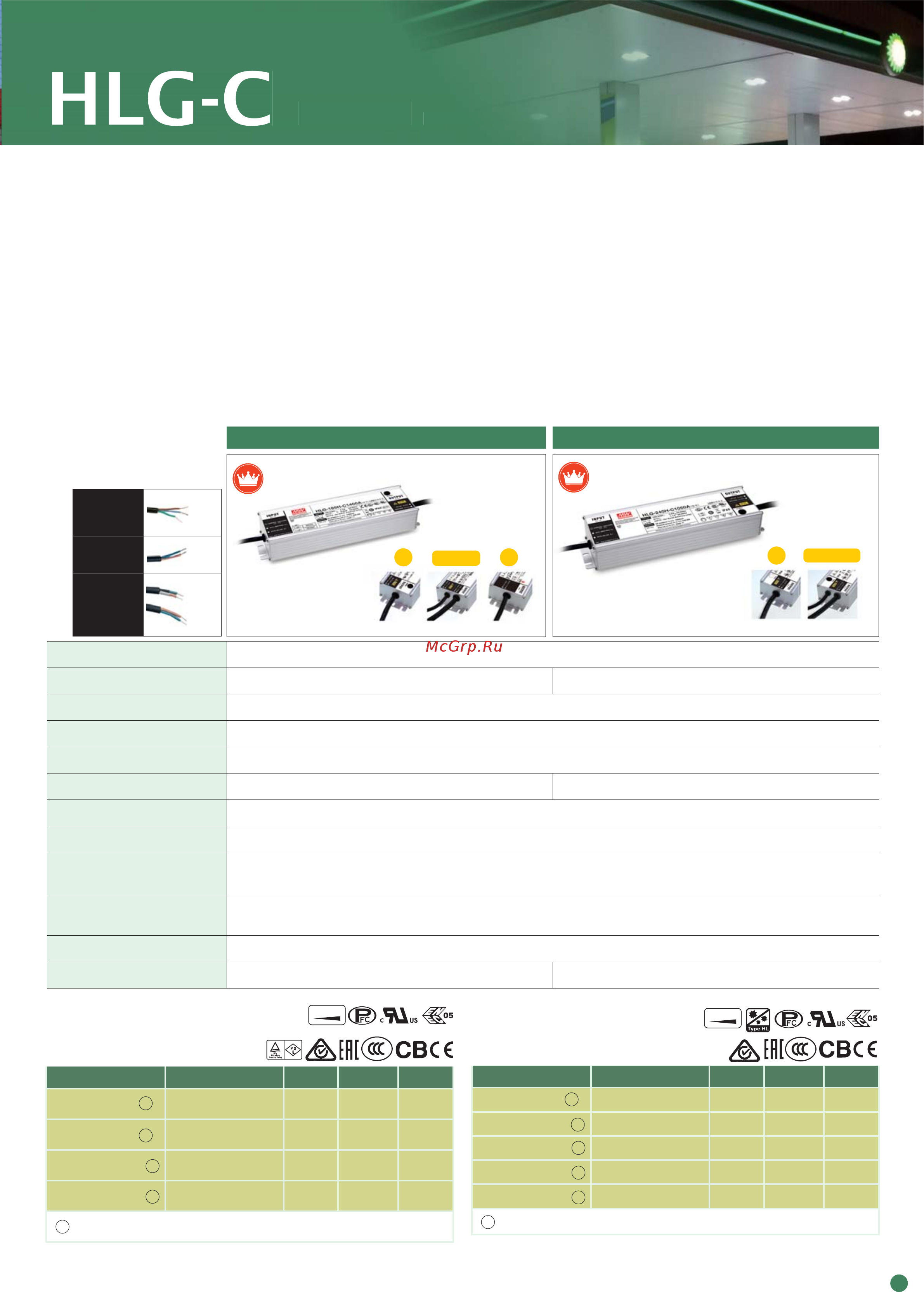

HLG-185H-C HLG-240H-C
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
ACN
Vo
-
DIM
-
DIM+
Vo+
Vo
-
ACL
FG
Vo
+
B / AB
54
Model No. Output Io Tol. Io Ripple Effi.
HLG-185H-C500 A 200~400V, 500mA ±5%
5% max.
94%
HLG-185H-C700 A 143~286V, 700mA ±5%
5% max.
94%
HLG-185H-C1050 A 95~190V, 1050mA ±5%
5% max.
94%
HLG-185H-C1400 A 71~143V, 1400mA ±5%
5% max.
94%
= A, B, AB or D
Model No. Output Io Tol. Io Ripple Effi.
HLG-240H-C700 A 178~357V, 700mA ±5% 5% max. 93.5%
HLG-240H-C1050 A 119~238V, 1050mA ±5% 5% max. 93.5%
HLG-240H-C1400 A 89~179V, 1400mA ±5% 5% max. 94%
HLG-240H-C1750 A 71~143V, 1750mA ±5% 5% max. 94%
HLG-240H-C2100 A 59~119V, 2100mA ±5% 5% max. 93.5%
= A, B, AB or D2
AC input voltage range 90~305VAC; 127VDC~431VDC
AC inrush current (max.) Cold start, 55A at 230VAC Cold start, 75A at 230VAC
Current adjustment range
50%~100% via potentiometer (A-Type only)
Short circuit protection Constant current limiting, auto-recovery
Over voltage protection 105%~120%, Shut down o/p voltage, re-power on to recover
Setup time 500ms at full load and 230VAC 500ms at full load and 230VAC
Withstand voltage I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC
Working temperature
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL8750, EN/AS/NZS61347-1,-2-13, EN62384, GB19510.1, GB19510.14, EAC TP TC 004;
PSE J61347-1, J61347-2-13(HLG-185H-C only) approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1, EAC TP TC 020
Connection Please refer to page 64
Dimension (LxWxH)(mm) 228x 68x 38.8 244.2x 68x 38.8
• Constant current mode
• Universal AC input (90 to 305VAC)/ Full range
• High efficiency up to 94%
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires (HLG-240H-C)
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• 7 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (1~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in potentiometer
& 3 in 1 dimming function.
D-Type (option): IP67 rated. Timer dimming function,
contact MEAN WELL for details(HLG-185H-C only)
D2-Type (option): IP67 rated.
Smart timer dimming function*,
contact MEAN WELL for details (HLG-240H-C)
Features
HLG-185H-C Series (200W)
HLG-240H-C Series (250W)
A
A
B/AB/D2
D
1-10VDC
1-10VDC
(AB/B-Type)
(AB/B-Type)
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
se
ri
es
185~
24
4
0
0W
W
0
Type HL
