![MEAN WELL NPF-40-54 [59/100] Series](/views2/1675311/page59/bg3b.png)
se
ri
es
65~100
W

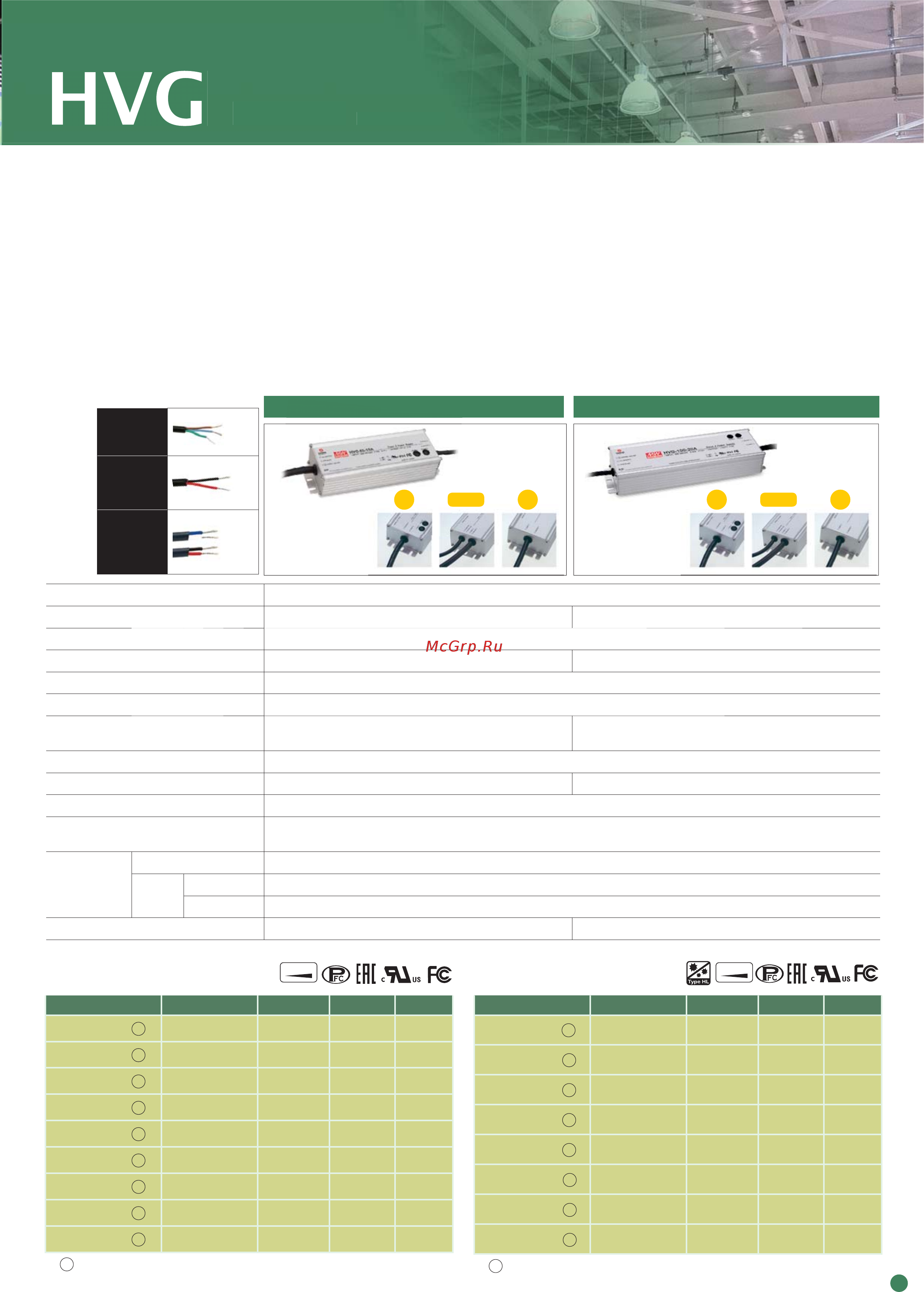

HVG-65 HVG-100
HV
G
6
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
Vo
-
DIM
-
DIM+
Vo
-
Vo+
Vo
+
ACN
ACL
FG
B/AB B/AB
56
AC input voltage range 180~528VAC (single phase); 254~747VDC
AC inrush current (max.) Cold start, 25A at 480VAC Cold start, 25A at 480VAC
DC adjustment range ±10% rated output voltage (A-Type only)
Current adjustment range 60%~100% via potentiometer (A-Type only) 55%~100% via potentiometer (A-Type only)
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time
400ms, 80ms, 16ms at full load and
347VAC/480VAC
500ms, 80ms, 30ms at full load and
347VAC/480VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+80
O
C (refer to "OUTPUT LOAD vs TEMPERATURE") -40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards UL8750, CSA C22.2 No. 250.0-13, EAC TP TC 004 IP65 or IP67 approved
EMC standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
EAC TP TC 020, FCC part 15 subpart B
Connection
Input UL rated, STW 18AWGx3C (30cm)
Output
A&D-Type SVT 18AWGx2C (30cm)
B/AB-Type SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 189x 61.5x 36.8 236x 68x 38.8
• Constant voltage+constant current modes
• 180~528VAC wide input range
• Class 2 power unit / Pass LPS
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires (HVG-100)
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• 5 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io and Vo(for HVG-100 only) adjustable through
built-in potentiometer & 3 in 1 dimming function.
D-Type (option): IP67 rated. Timer dimming function,
contact MEAN WELL for details
HVG-100 Series
HVG-65 Series
Model No. Output Tol. R&N Effi.
HVG-100-15 A 15V, 0~5A ±2.0% 150mV 89.0%
HVG-100-20 A 20V, 0~4.8A ±1.0% 150mV 90.0%
HVG-100-24 A 24V, 0~4A ±1.0% 150mV 91.0%
HVG-100-30 A 30V, 0~3.2A ±1.0% 200mV 91.0%
HVG-100-36 A 36V, 0~2.65A ±1.0% 200mV 90.5%
HVG-100-42 A 42V, 0~2.28A ±1.0% 200mV 90.5%
HVG-100-48 A 48V, 0~2A ±1.0% 200mV 91.0%
HVG-100-54 A 54V, 0~1.77A ±1.0% 200mV 91.0%
= A, B, AB or D
Model No. Output Tol. R&N Effi.
HVG-65-12 A 12V, 0~5A ±2.0% 120mV 86.5%
HVG-65-15 A 15V, 0~4.3A ±2.0% 150mV 87.5%
HVG-65-20 A 20V, 0~3.25A ±1.0% 150mV 88.5%
HVG-65-24 A 24V, 0~2.71A ±1.0% 150mV 89.0%
HVG-65-30 A 30V, 0~2.17A ±1.0% 200mV 89.0%
HVG-65-36 A 36V, 0~1.81A ±1.0% 200mV 89.5%
HVG-65-42 A 42V, 0~1.55A ±1.0% 300mV 89.5%
HVG-65-48 A 48V, 0~1.36A ±1.0% 300mV 90.0%
HVG-65-54 A 54V, 0~1.21A ±1.0% 300mV 90.0%
= A, B, AB or D
Features
AA
DD
0-10VDC 0-10VDC
(AB/B-Type) (AB/B-Type)
