MEAN WELL CLG-150-20A [64/100] Series

MEAN WELL IDPV-65-24 [64/100] Series
se
ri
es
480~
6
65
65
5
5
6
0W
W
W
W
W
0
W
W
0

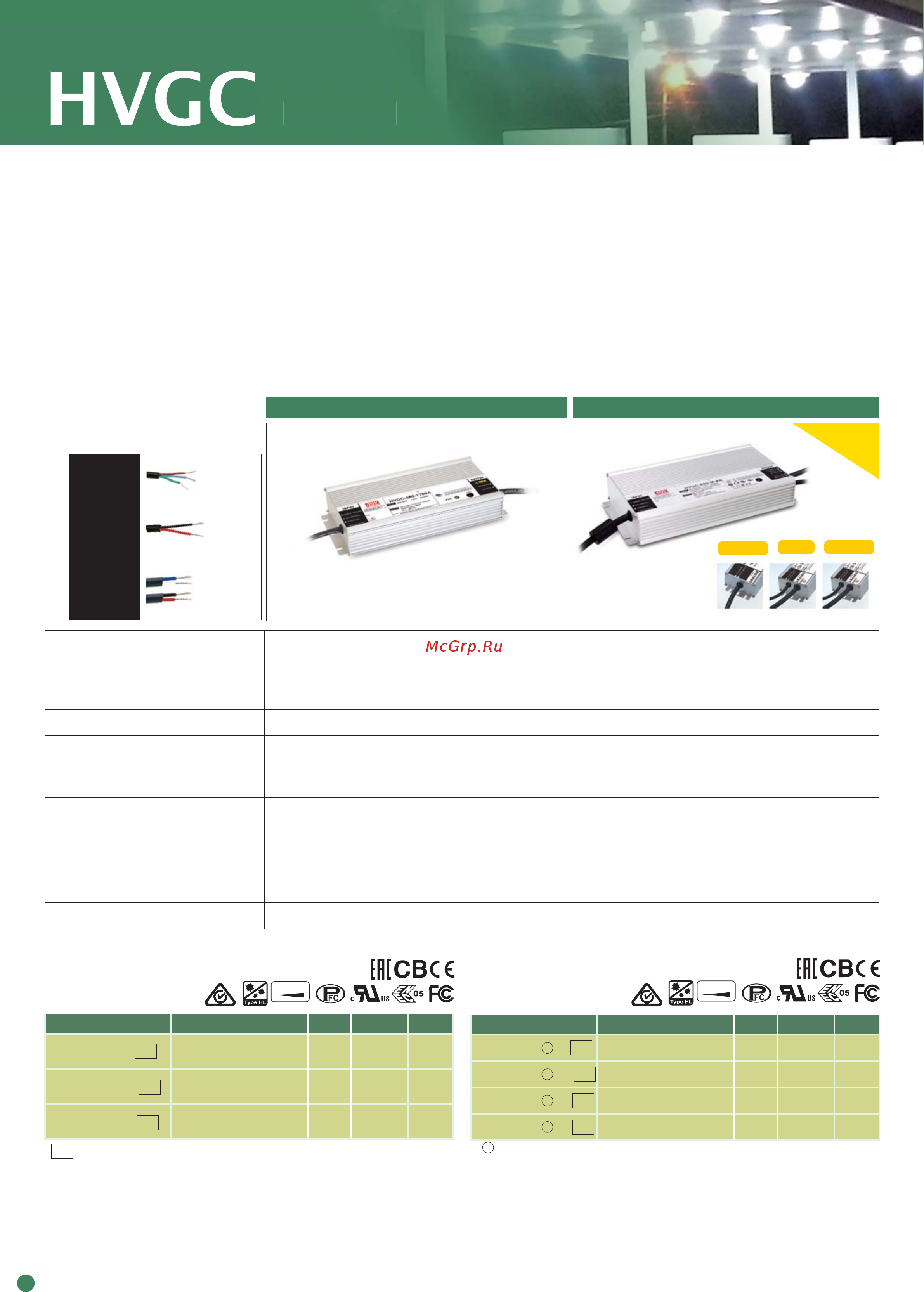

HVGC-480 HVGC-650
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
Vo
-
DIM
-
/DA
-
DIM+/DA+
Vo
-
Vo+
Vo
+
ACN
ACL
FG
NEWNEW
61
Model No. Output Io Tol. Io Ripple Effi.
HVGC-480-L- AB 137~343V,1750mA ±5% 5% max. 94.5%
HVGC-480-M- AB 92~228.5V,2625mA ±5% 5% max. 94.5%
HVGC-480-H- AB 68~171.5V,3500mA ±5% 5% max. 94.5%
= AB, blank, D2 or DA
Model No. Output Io Tol. Io Ripple Effi.
HVGC-650 -L- AB
93~232V, 2800mA ±5% 5% max. 95%
HVGC-650
-M- AB
62~155V, 4200mA ±5% 5% max. 95%
HVGC-650
-H- AB
47~116V, 5600mA ±5% 5% max. 95%
HVGC-650
-U- AB
24~58V, 11200mA ±5% 5% max. 95.5%
= Blank, A ;
Blank: without auxiliary function, A: with auxiliary DC output power
= AB, D2 or DA
AC input voltage range 180~528VAC ; 254~747VDC
AC inrush current (max.) Cold start, 40A at 480VAC
Current adjustment range 50%~100% via potentiometer (A-Type only)
Over voltage protection 105%~110% shut down o/p voltage, re-power on to recover
Setup time 500ms at 347VAC/480VAC
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC
O/P-FG:1.5KVAC
I/P-O/P:4.2KVAC I/P-FG:2.1KVAC
O/P-FG:1.5KVAC
Working temperature (Tcase)
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards UL8750, CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved
EMC standards FCC Part 15 subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020
Connection Please refer to page 64
Dimension (LxWxH)(mm) 262x 125x 43.8 280x 144x 48.5
• Constant power mode
• 180~528VAC wide input range
• High efficiency up to 95.5%
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• With auxiliary DC output power (optional for HVGC-650)
• 5 years warranty
• Multiple models for choice:
Blank-Type(option): IP67 rated. Io and Vo fixed.
(For harsh
environment)
(HVGC-480 only)
AB-Type: IP67 rated. Standard constant power output with 3 in 1
dimming function (0~10Vdc,10V PWM signal and
resistance) and built-in potentiometer
D2-Type (option): IP67 rated. Built-in Smart timer dimming and
programmable function
DA-Type (option): IP67 rated. DALI control technology
HVGC-480 Series
HVGC-650 Series
Features
0-10VDC
0-10VDC
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
(AB/B-Type)
(
AB/B-Type)
Blank
D2/DAAB
