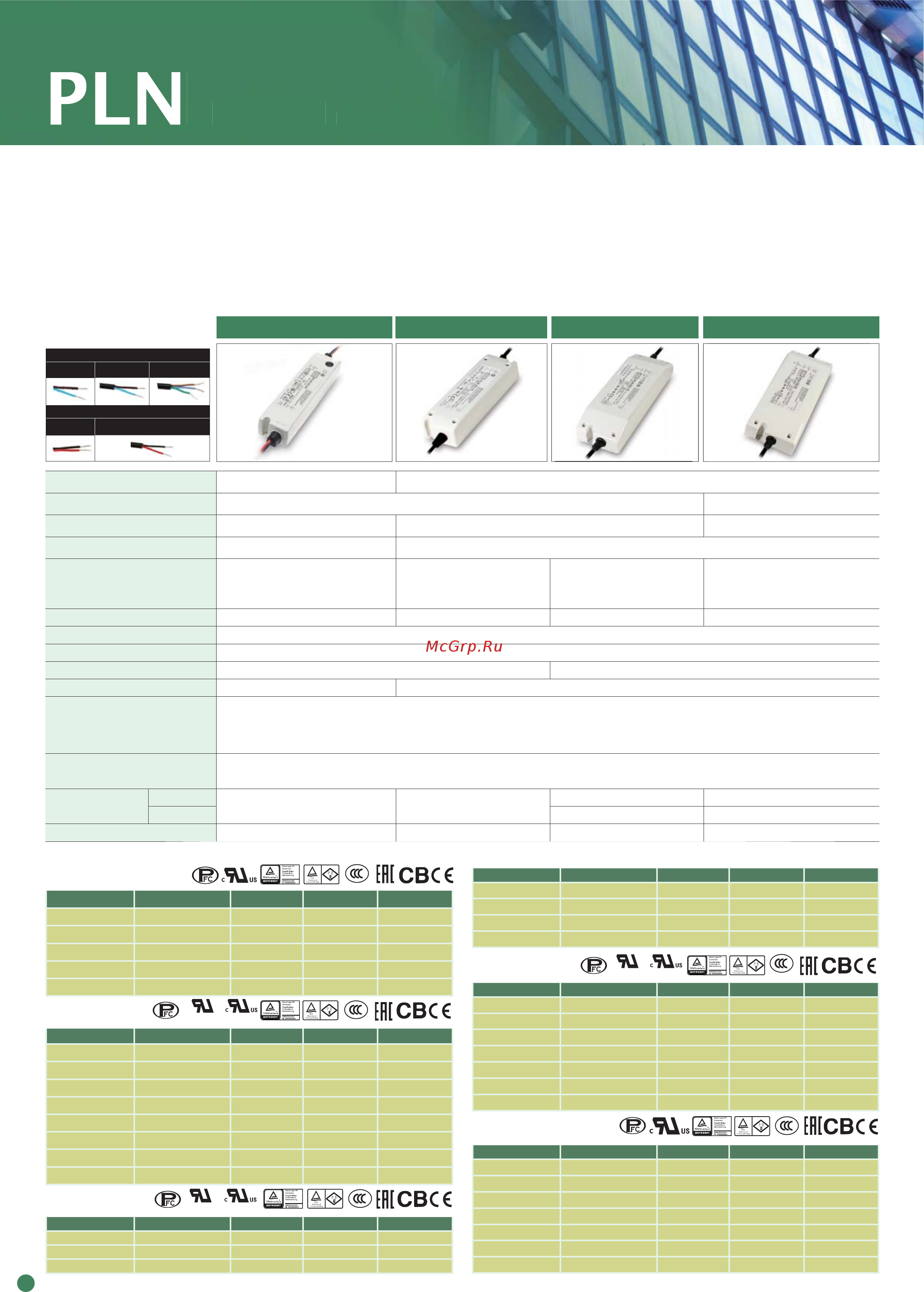

INPUT
PLN-20 PLN-30 PLN-45/60/100
OUTPUT
PLN-20 PLN-30/45/60/100
23
AC input voltage range
90~277VAC; 127~392VDC
90~295VAC ; 127~417VDC
AC inrush current (max.) Cold start, 35A at 230VAC Cold start, 40A at 230VAC
DC adjustment range None 95%~108% 85%~100%
Current adjustment range 75%~100% 75%~103%
Over current protection
95%~110% constant
current limiting,
auto-recovery
100%~110% constant
current limiting,
auto-recovery
95%~110% constant
current limiting,
auto-recovery
95%~102% constant
current limiting,
auto-recovery
Over voltage protection 105%~142% 110%~155% 115%~140% 107%~135%
Setup time 500ms at full load and 230VAC
Total harmonic distortion THD<20%
Withstand voltage I/P-O/P: 3.75kVAC I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC
Working temperature -30~+60
O
C -30~+50
O
C (refer to output derating curve)
Safety standards
TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,
EAC TP TC 004 approved for PLN series; UL8750 approved for PLN-20/45/60,
UL879, UL1310 approved for PLN-30/45/60/100
EMC standards
EN55015, EN55032 class B (PLN-100 only), EN61000-3-2 class C, EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020
Connection
Input
UL rated, UL1015
18AWGx2C (32cm)
UL rated, SVT
18AWGx2C (32cm)
UL rated, SVT 18AWGx3C (30cm) UL rated, SVT 18AWGx3C (31cm)
Output
UL rated, SVT 18AWGx2C (30cm) UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm) 148.5x 38.5x 28 145x 47x 30 181x 61.5x 35 200x 70.5x 35
Features
• Constant current mode (PLN-20/30/45/60)
• Constant current + constant voltage (PLN-100)
• Universal AC input (90 to 295VAC) / Full range
• Fully isolated plastic case with IP64 level
• Isolation class II, no F.G. for PLN-20/30
• Class 2 power unit / Pass LPS
• User adjustable output voltage (except for PLN-20)
and current protection level
• Suitable for LED lighting with independent applications
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• 2 years warranty
PLN-30PLN-20
PLN-45/60 PLN-100
PLN-20 Series
PLN-30 Series
PLN-45 Series
Model No. Output Tol. R&N Effi.
PLN-20-12 12V, 0~1.6A ±10% 2.5V 80.0%
PLN-20-18 18V, 0~1.1A ±10% 3.0V 81.0%
PLN-20-24 24V, 0~0.8A ±10% 3.0V 82.0%
PLN-20-36 36V, 0~0.55A ±10% 3.0V 83.0%
PLN-20-48 48V, 0~0.42A ±10% 3.8V 83.5%
Model No. Output Tol. R&N Effi.
PLN-30-9 9V, 0~3.3A ±10% 2.6V 80.0%
PLN-30-12 12V, 0~2.5A ±10% 2.0V 82.5%
PLN-30-15 15V, 0~2.0A ±10% 2.6V 83.5%
PLN-30-20 20V, 0~1.5A ±10% 2.6V 84.0%
PLN-30-24 24V, 0~1.25A ±10% 2.6V 84.0%
PLN-30-27 27V, 0~1.12A ±10% 2.3V 84.5%
PLN-30-36 36V, 0~0.84A ±10% 4.5V 85.0%
PLN-30-48 48V, 0~0.63A ±10% 3.7V 85.5%
Model No. Output Tol. R&N Effi.
PLN-45-12 12V, 0~3.8A ±10% 2.0V 83.5%
PLN-45-15 15V, 0~3.0A ±10% 2.4V 85.0%
PLN-45-20 20V, 0~2.3A ±10% 1.8V 86.5%
Model No. Output Tol. R&N Effi.
PLN-45-24 24V, 0~1.9A ±10% 2.7V 86.5%
PLN-45-27 27V, 0~1.7A ±10% 2.7V 86.5%
PLN-45-36 36V, 0~1.25A ±10% 3.6V 87.5%
PLN-45-48 48V, 0~0.95A ±10% 4.6V 87.5%
Model No. Output Tol. R&N Effi.
PLN-60-12 12V, 0~5.0A ±10% 2.0V 85.0%
PLN-60-15 15V, 0~4.0A ±10% 2.4V 86.0%
PLN-60-20 20V, 0~3.0A ±10% 1.8V 87.5%
PLN-60-24 24V, 0~2.5A ±10% 2.7V 87.0%
PLN-60-27 27V, 0~2.3A ±10% 2.7V 88.0%
PLN-60-36 36V, 0~1.7A ±10% 3.6V 89.0%
PLN-60-48 48V, 0~1.3A ±10% 4.6V 89.0%
PLN-60 Series
PLN-100 Series
Model No. Output Tol. R&N Effi.
PLN-100-12 12V, 0~5.0A ±3% 150mV 83.0%
PLN-100-15 15V, 0~5.0A ±3% 150mV 85.0%
PLN-100-20 20V, 0~4.8A ±3% 150mV 88.5%
PLN-100-24 24V, 0~4.0A ±3% 150mV 88.5%
PLN-100-27 27V, 0~3.55A ±3% 150mV 88.0%
PLN-100-36 36V, 0~2.65A ±2% 150mV 88.0%
PLN-100-48 48V, 0~2.0A ±2% 200mV 88.5%
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
TUV
Rheinland
Produ ct Safety
P S
E
(for 48V only)
(for 48V only)
(for 48V only)
(for 9~36V)
(for 12~36V)
(for 12~36V)
se
ri
es
20~96
W
