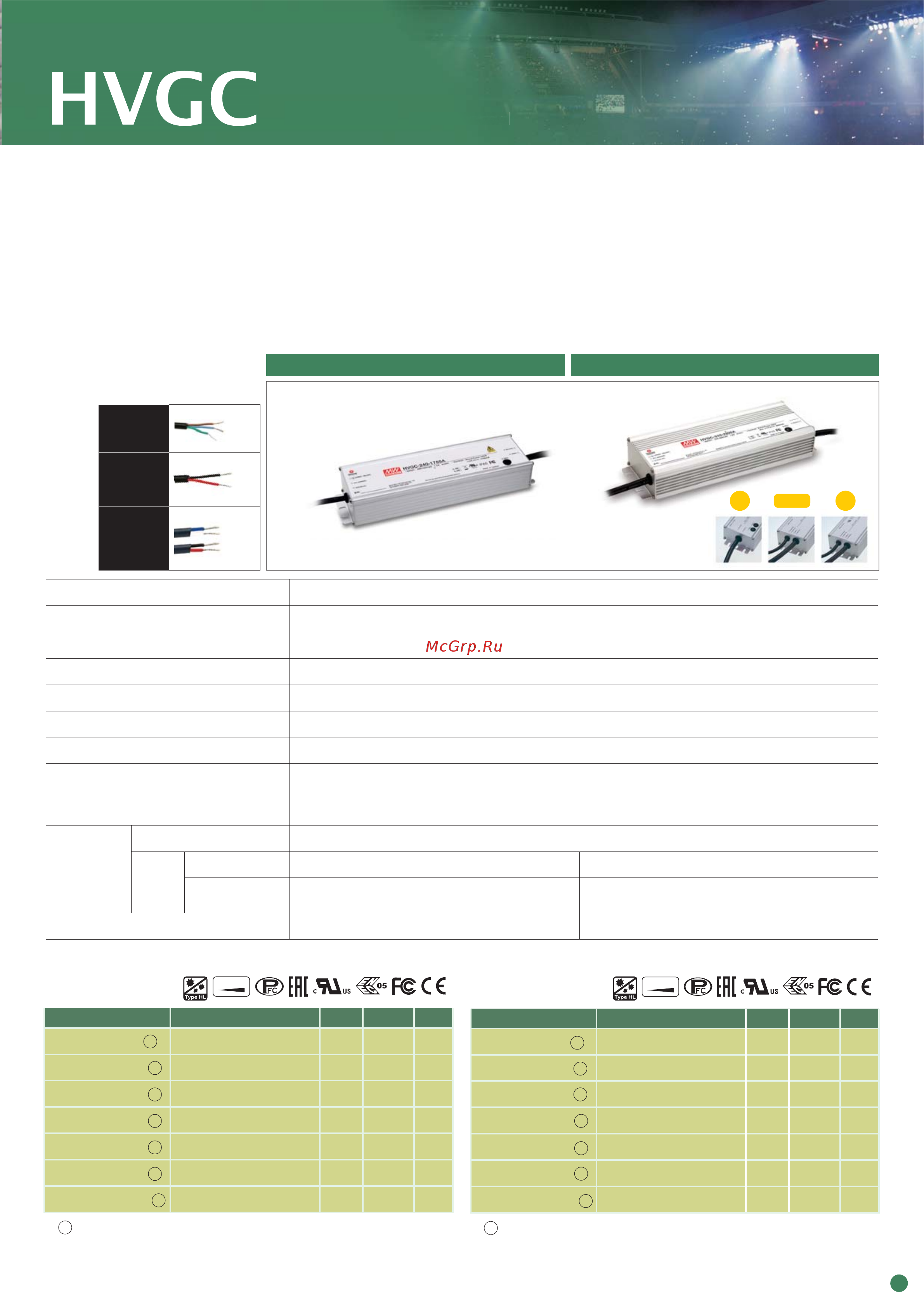

HVGC-320HVGC-240
INPUT
OUTPUT
(Non-Dimming
Models)
OUTPUT
(Dimming
Models)
Vo
-
DIM
-
DIM+
Vo
-
Vo+
Vo
+
ACN
ACL
FG
60
Model No. Output Io Tol. Io Ripple Effi.
HVGC-240-700 A 171.4~342.8V, 700mA ±5% 5% max. 93.5%
HVGC-240-1050 A 114.3~228.6V, 1050mA ±5% 5% max. 93.0%
HVGC-240-1400 A 85.7~171.4V, 1400mA ±5% 5% max. 93.0%
HVGC-240-1750 A 68.5~137.1V, 1750mA ±5% 5% max. 93.0%
HVGC-240-2100 A 57.2~114.3V, 2100mA ±5% 5% max. 92.5%
HVGC-240-2800 A 42.9~85.7V, 2800mA ±5% 5% max. 92.5%
HVGC-240-3500 A 34.3~68.6V, 3500mA ±5% 5% max. 92.5%
= A, B, AB or D2
Model No. Output Io Tol. Io Ripple Effi.
HVGC-320-700 A 214~428V,700mA ±5% 5% max. 93.5%
HVGC-320-1050 A 152.4~304.8V,1050mA ±5% 5% max. 93.5%
HVGC-320-1400 A 114.3~228.6V,1400mA ±5% 5% max. 93.5%
HVGC-320-1750 A 91.4~182.8V,1750mA ±5% 5% max. 93.5%
HVGC-320-2100 A 76.2~152.4V,2100mA ±5% 5% max. 93.5%
HVGC-320-2800 A 57~114.3V,2800mA ±5% 5% max. 93.5%
HVGC-320-3500 A 45.7~91.4V,3500mA ±5% 5% max. 93%
= A, B, AB or D2
AC input voltage range 180~528VAC ; 254~747VDC
AC inrush current (max.) Cold start, 50A at 480VAC
Current adjustment range 50%~100% via potentiometer (A-Type only)
Over voltage protection 105%~110% shut down o/p voltage, re-power on to recover
Setup time 500ms at 347VAC/480VAC
Withstand voltage I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Working temperature
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards UL8750 (type”HL”), EAC TP TC 004 approved, IEC/EN61347-1,IEC/EN61347-2-13
EMC standards
FCC Part 15 subpart B, EN55015, EN61000-3-2(@load͘50%), EN61000-3-3, EN61000-4-
2,3,4,5,6,8,11, EN61547, EAC TP TC 020
Connection
Input UL rated, STW 18AWGx3C (30cm)
Output
A-Type STW 18AWGx2C (30cm) SJTW 14AWGx2C (30cm)
B/AB/D2-Type
STW 18AWGx2C (30cm) +
UL2517 22AWGx2C (30cm)
SJTW 14AWGx2C (30cm) +
UL2517 22AWGx2C (30cm)
Dimension (LxWxH)(mm) 254.2x 68x 38.8 262x 90x 43.8
• Constant current mode
•18 0 ~ 5 2 8 V A C wide input range
• High efficiency up to 93.5%
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry, damp, and wet location
• Suitable for outdoor LED lighting applications
• Protections: Short circuit / Over voltage / Over temperature
• 5 years warranty
• Multiple models for choice:
A-Type: IP65 rated. Io adjustable through built-in potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io adjustable through built-in potentiometer
& 3 in 1 dimming function.
D2-Type (option): IP67 rated. Smart timer dimming function*,
contact MEAN WELL for details
HVGC-240 Series HVGC-320 Series
Features
A
D2
0-10VDC
0-10VDC
*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.
(AB/B-Type)
(AB/B-Type)
B/AB
Type HL
Type HL
