Outline of Control (Indoor Unit) SiE39-407
104 Function
6.1.3 When the Float Switch is Tripped During Heating Operation:
During heating operation, if the float switch is not reset even after the 5 minutes operation, 5
seconds stop, 5 minutes operation cycle ends, operation continues until the switch is reset.
6.1.4 When the Float Switch is Tripped and “AF” is Displayed on the
Remote Controller:
Note: If the float switch is tripped five times in succession, a drain malfunction is determined to have
occurred. “AF” is then displayed as operation continues.

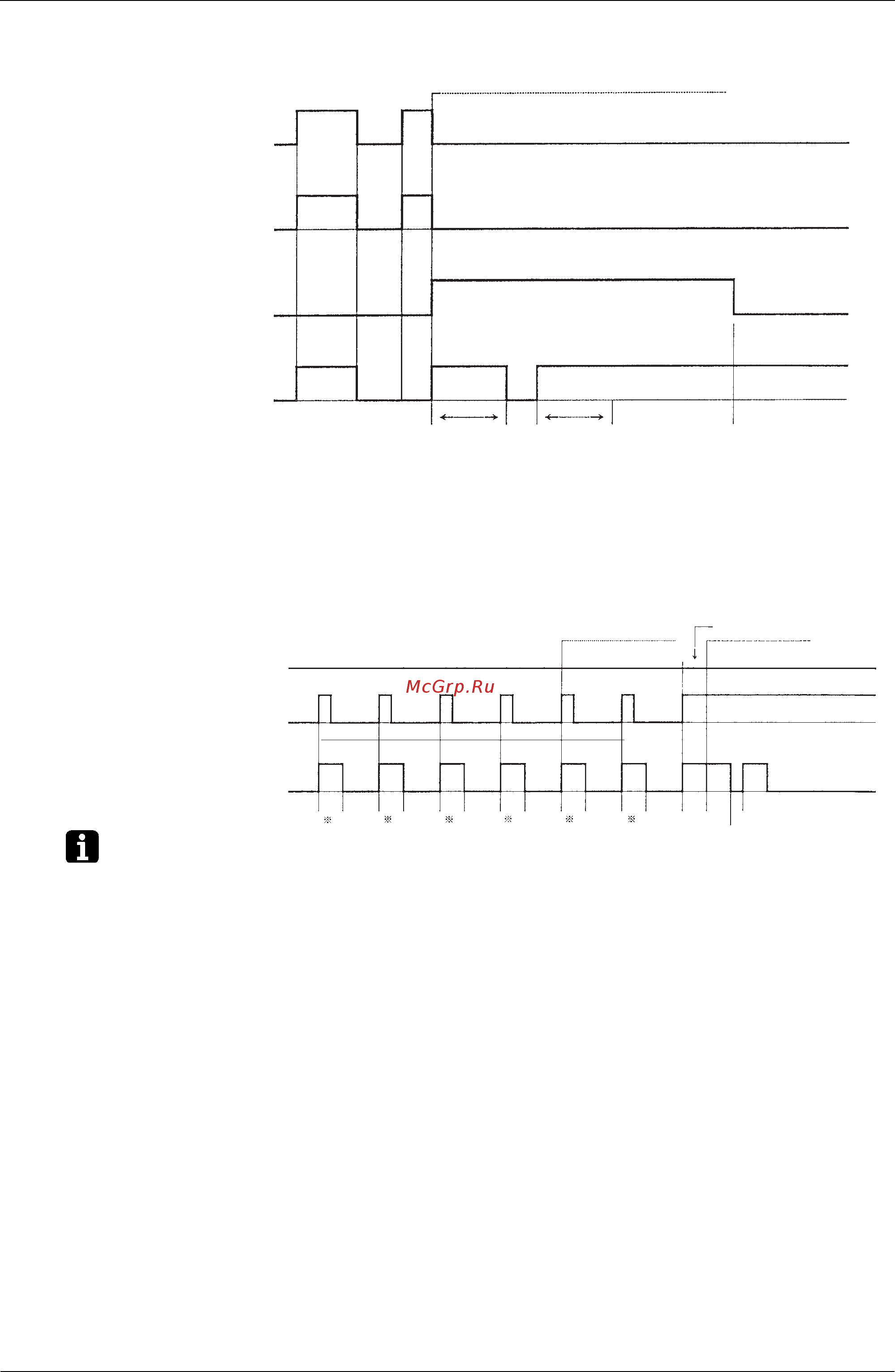

ON
ON
ON
5 min. 5 min.
Reset
5 sec.
Remote controller “A3” flashing malfunction stop
(VL010)
OFF
Thermostat
(running)
Float switch
Drain pump
OFF
ON
Humidifier
OFF
OFF
ON
ON
11111 1
1st time 2nd time 3rd time 4th time 5th time
“AF” display (running)
Remote controller “A3” flashing
malfunction stop
Enters malfunction treatment
if the float switch is not reset
within 5 minutes.
(VL011)
Remote controller
display
Float switch
Drain pump
OFF
OFF
