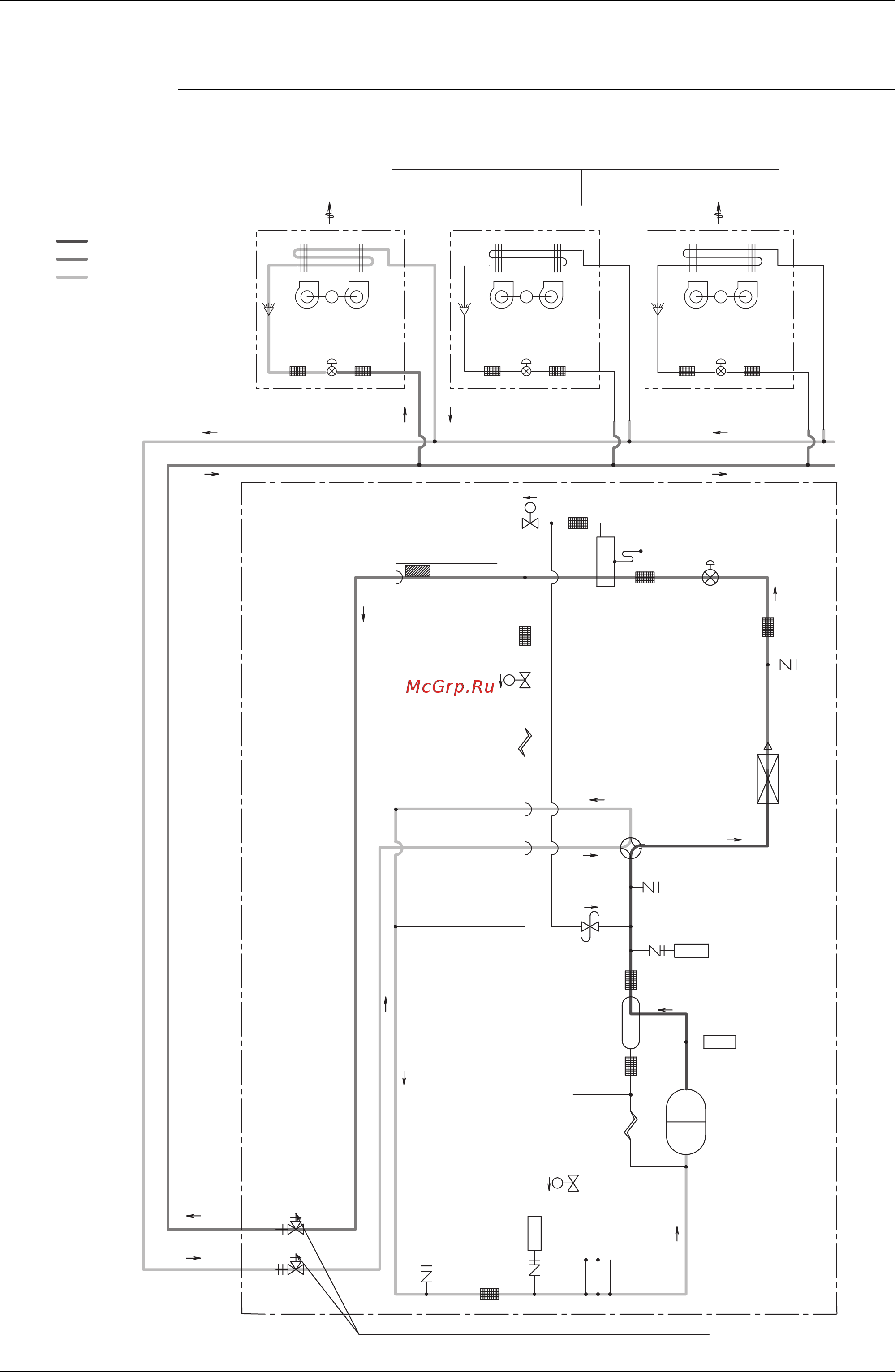

Refrigerant Flow for Each Operation Mode SiE39-407
60 Refirgerant Circuit
3. Refrigerant Flow for Each Operation Mode
RXYQ5MA
Cooling Operation
M
M
M
" ON "
FanFan
Indoor unit operation
Fan ON
Thermostat "OFF"
Indoor unit
Electronic expansion valve
EV:0pls
FilterFilter
Heat exchanger
Fan OFF
Indoor unit
" OFF "
Electronic expansion valve
EV:0pls
FilterFilter
Heat exchanger
Fan ON
Thermostat "ON"
Indoor unit
" ON "
Heat exchanger
Electronic expansion valve
FilterFilter
Fan
Receiver
Solenoid
valve
Filter
Capillary
tube
4-way valve
Gauge port
SENPH
SENPL
High pressure
sensor
High pressure
switch
Solenoid
valve
Gauge port
Stop valve(with service port on on-site piping side ø7.9 flare connection)
Low pressure
sensor
FilterFilter
Filter
Capillary tube
Compressor
Oil separator
Pressure regulating
valve
(check valve type)
Solenoid
valve
Filter
Filter
Filter
Electronic
expansion valve
Fusible plug
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
EV:Nomal
control
Heat
exchanger
pipe
HPS
INV
SV
SV
SV
