Troubleshooting by Indication on the Remote Controller SiE39-407
218 Troubleshooting
3.32 “L4” Outdoor Unit: Malfunction of Inverter Radiating Fin
Temperature Rise
Remote
Controller
Display
L4
Applicable
Models
RXYQ5MA~48MA
Method of
Malfunction
Detection
Fin temperature is detected by the thermistor of the radiation fin.
Malfunction
Decision
Conditions
When the temperature of the inverter radiation fin increases above 89°C.
Supposed
Causes
Actuation of fin thermal (Actuates above 89°C)
Defect of inverter PC board
Defect of fin thermistor

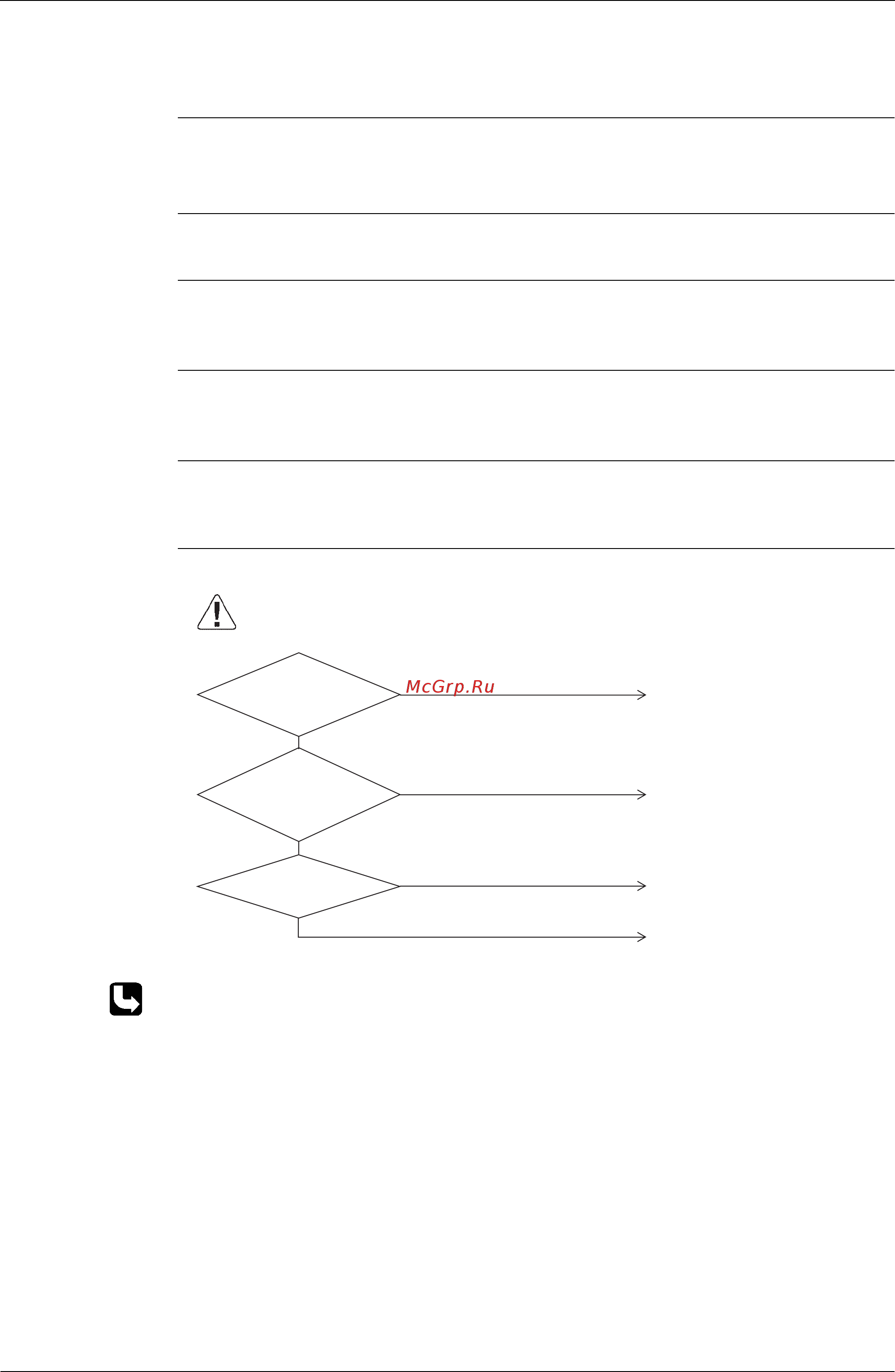

Troubleshooting
∗2: Refer to thermistor resistance / temperature characteristics table on P319.
(V2811)
Resistance
check of the radiator fin
thermistor
Defect of power unit radiation.
• Intake port is clogged
• Radiator fin is dirty
• Outdoor temperature is high
NO
Replace the thermistor.
YES
Abnormal
Is reset possible?
Reset and operate.
Normal
Replace the inverter PC board
NO
YES
Temperature
of the radiator fin rises
.
Actuates at min.
89 °C
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
