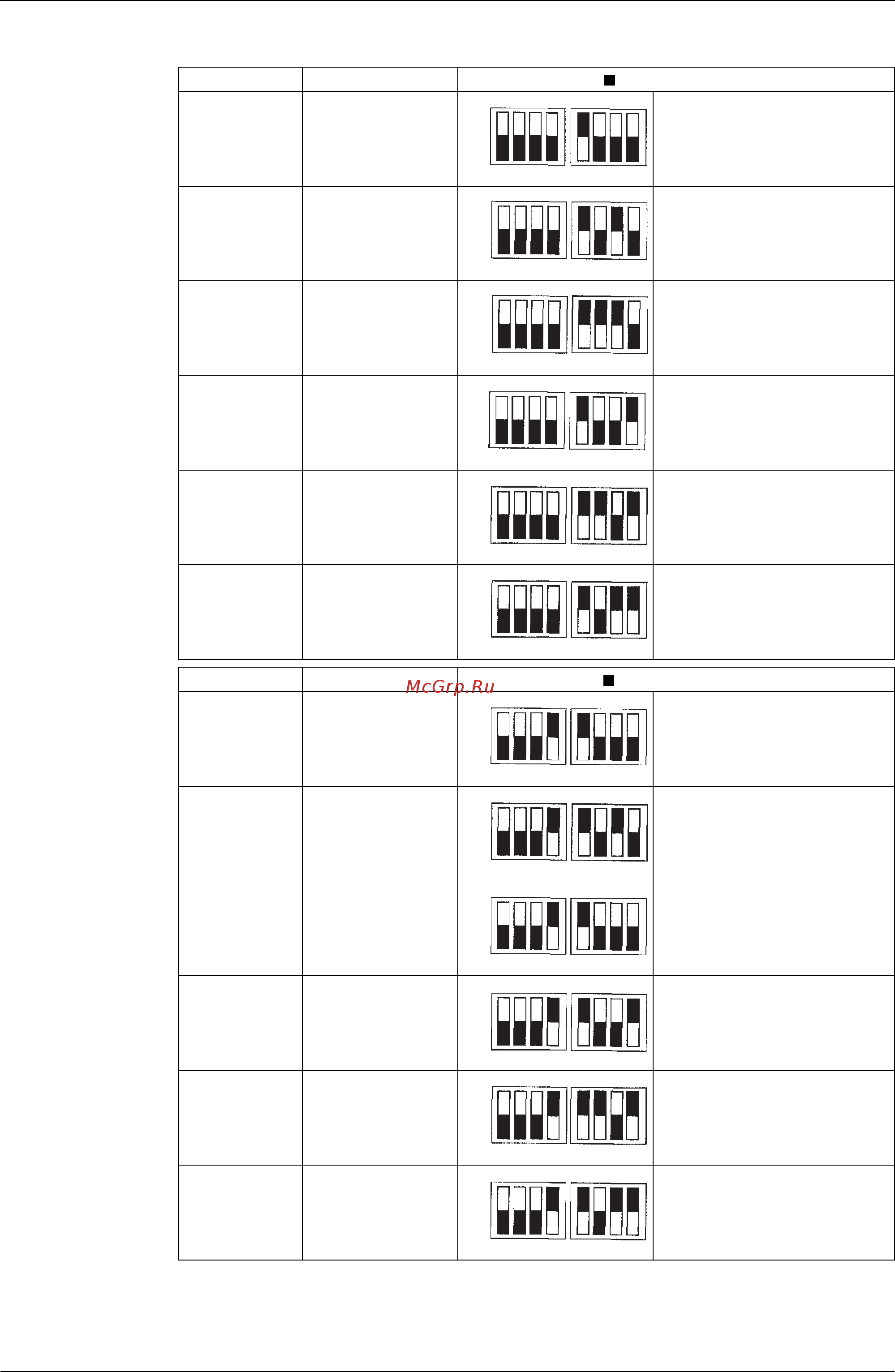

Field Setting SiE39-407
138 Test Operation
“Detail of DS1-4, DS2-1~4 setting”
Previous unit Mfg. No. Setting method ( represents the position of switches)
HEAT
PUMP(5HP)
RXYQ5MAY1
6300001~6300272 Set DS2-1 to ON.
HEAT
PUMP(8HP)
RXYQ8MAY1
6300001~6300491 Set DS2-1 and DS2-3 to ON.
HEAT
PUMP(10HP)
RXYQ10MAY1
6300001~6301014
Set DS2-1, DS2-2 and DS2-3
to ON.
HEAT
PUMP(12HP)
RXYQ12MAY1
6300001~6300276 Set DS2-1 and DS2-4 to ON.
HEAT
PUMP(14HP)
RXYQ14MAY1
6300001~6300314
Set DS2-1, DS2-2 and DS2-4
to ON.
HEAT
PUMP(16HP)
RXYQ16MAY1
6300001~6300500
Set DS2-1, DS2-3 and DS2-4
to ON.
New unit Mfg. No. Setting method ( represents the position of switches)
HEAT
PUMP(5HP)
RXYQ5MAY1
6300273~ Set DS1-4 and DS2-1 to ON.
HEAT
PUMP(8HP)
RXYQ8MAY1
6300492~
Set DS1-4, DS2-1 and DS2-3
to ON.
HEAT
PUMP(10HP)
RXYQ10MAY1
6301015~
Set DS1-4, DS2-1, DS2-2 and
DS2-3 to ON.
HEAT
PUMP(12HP)
RXYQ12MAY1
6300277~
Set DS1-4, DS2-1 and DS2-4
to ON.
HEAT
PUMP(14HP)
RXYQ14MAY1
6300315~
Set DS1-4, DS2-1, DS2-2 and
DS2-4 to ON.
HEAT
PUMP(16HP)
RXYQ16MAY1
6300501~
Set DS1-4, DS2-1, DS2-3 and
DS2-4 to ON.
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
ON
OFF
123 4123 4
