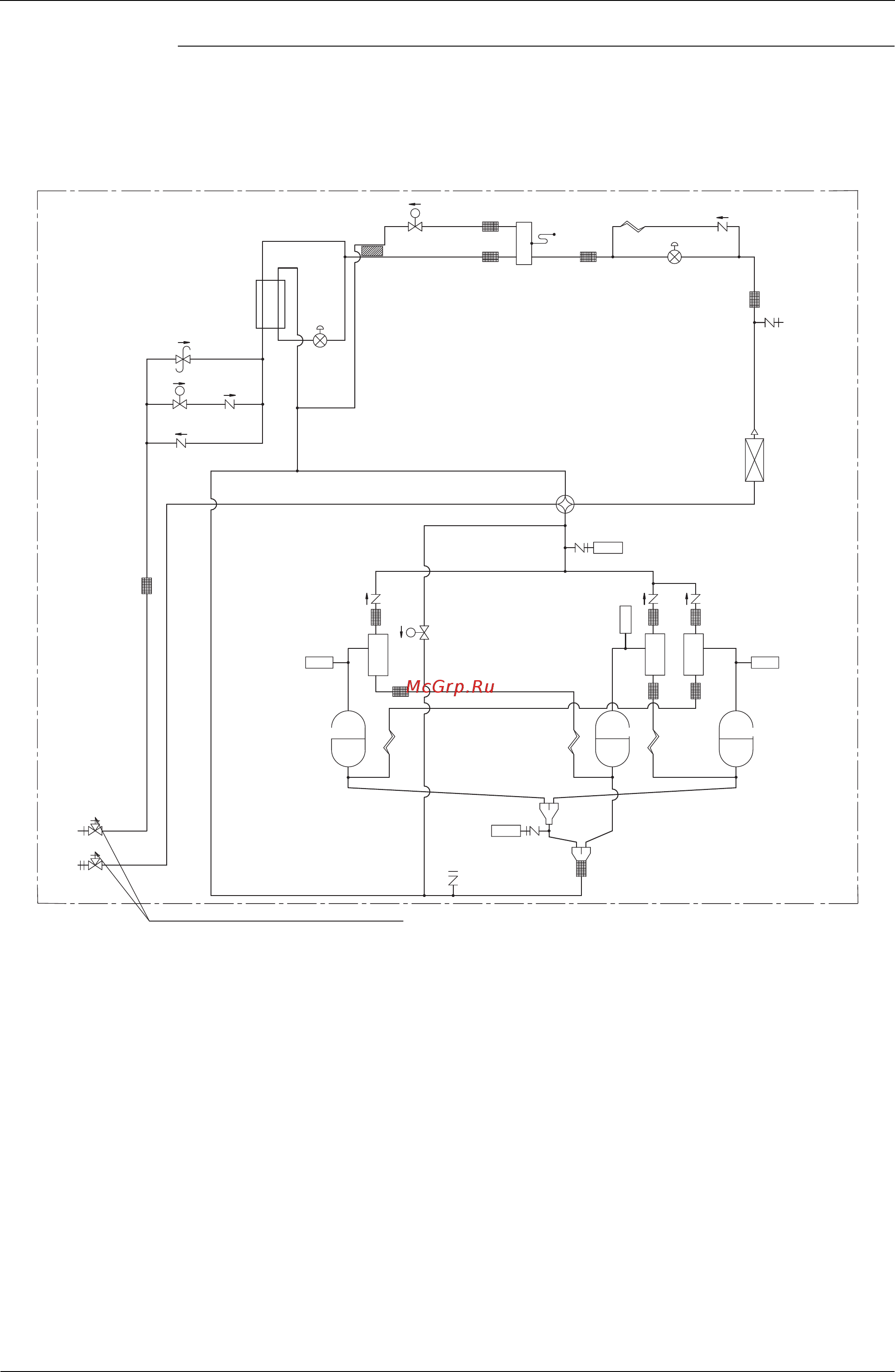

Piping Diagrams SiE39-407
270 Appendix
RXYQ14MAY1
RXYQ16MAY1
Pressure regulating valve
(check valve type)
Electronic
expansion
valve
Check
valve
Solenoid
valve
Check
valve
Heat
exchanger
pipe
Solenoid
valve
Filter
Filter
Receiver
Fusible plug
Filter
Capillary
tube
Four way
valve
Check
valve
Electronic
expansion valve
Filter
Filter
High pressure
switch
Filter
Check
valve
Solenoid
valve
Filter
Oil
separator
Capillary tube
Compressor
INV
HPS
SV
High pressure
sensor
High pressure
switch
Check
valve
Check
valve
High pressure
switch
Oil
separator
Oil
separator
Filter
Filter
HPS
HPS
Compressor
STD2
Compressor
STD1
Capillary tube
Capillary tube
Low pressure
sensor
Gauge port
Stop valve (with service port ø 7.9 mm flare connection)
3D048034A
SV
SENPH
Filter
Filter
SENPL
SV
