Daikin RXYQ14MAY1 [284/352] Fxmq125mfv1 200mfv1 250mfv1
![Daikin RXYQ42MAY1 [284/352] Fxmq125mfv1 200mfv1 250mfv1](/views2/1712502/page284/bg11c.png)

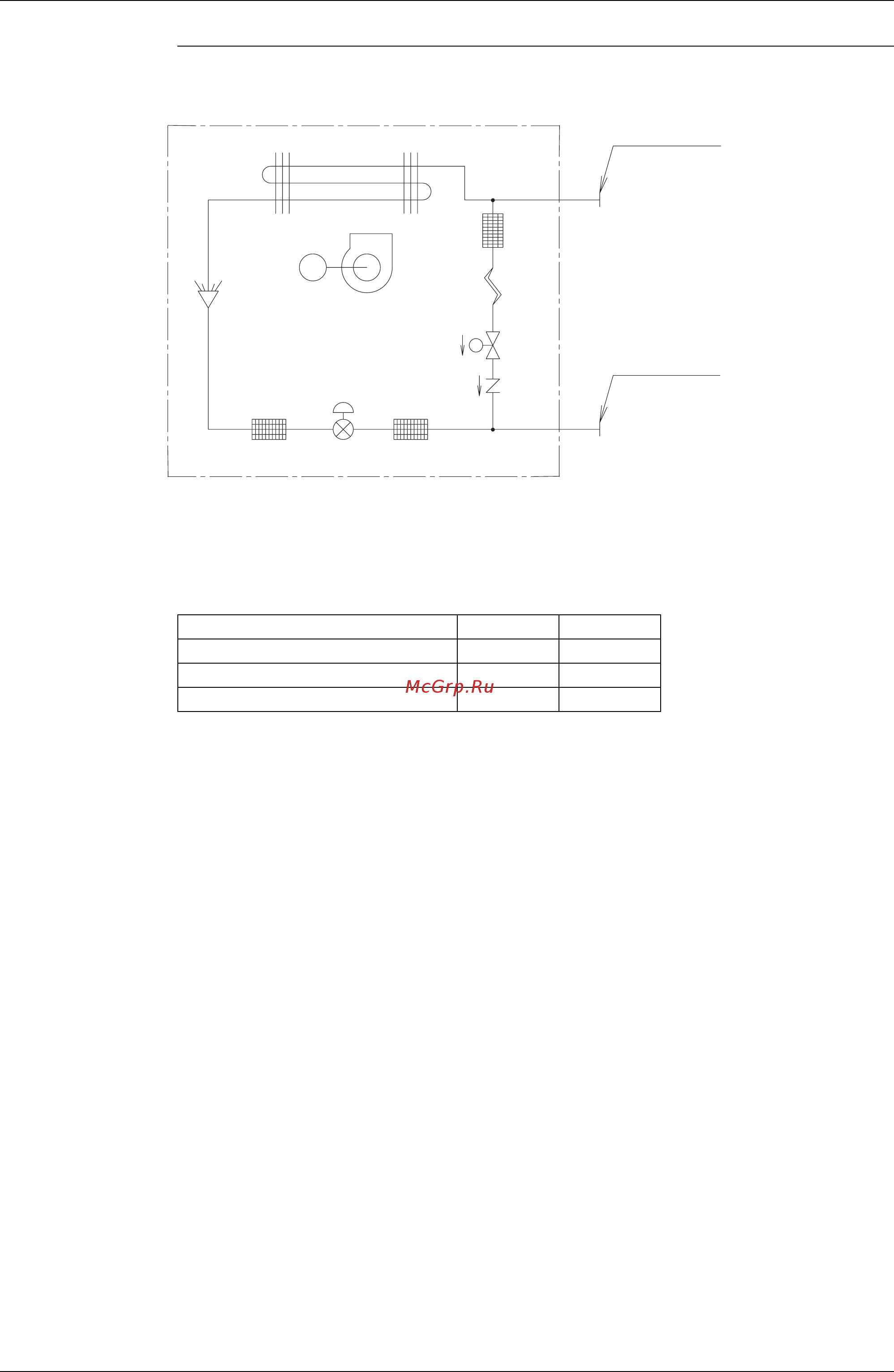

SiE39-407 Piping Diagrams
Appendix 273
FXMQ125MFV1/200MFV1/250MFV1
Refrigerant pipe connection port diameters
4D018650B
Heat exchanger
Distributor
Fan
Filter Filter
Electronic
expansion valve
M
Filter
Capillary
tube
Check
valve
Solenoid
valve
Gas pipe
connection port
Liquid pipe
connection port
SV
(mm)
Model Gas Liquid
FXMQ125MFV1 φ15.9 φ9.5
FXMQ200MFV1 φ19.1 φ9.5
FXMQ250MFV1 φ22.2 φ9.5
