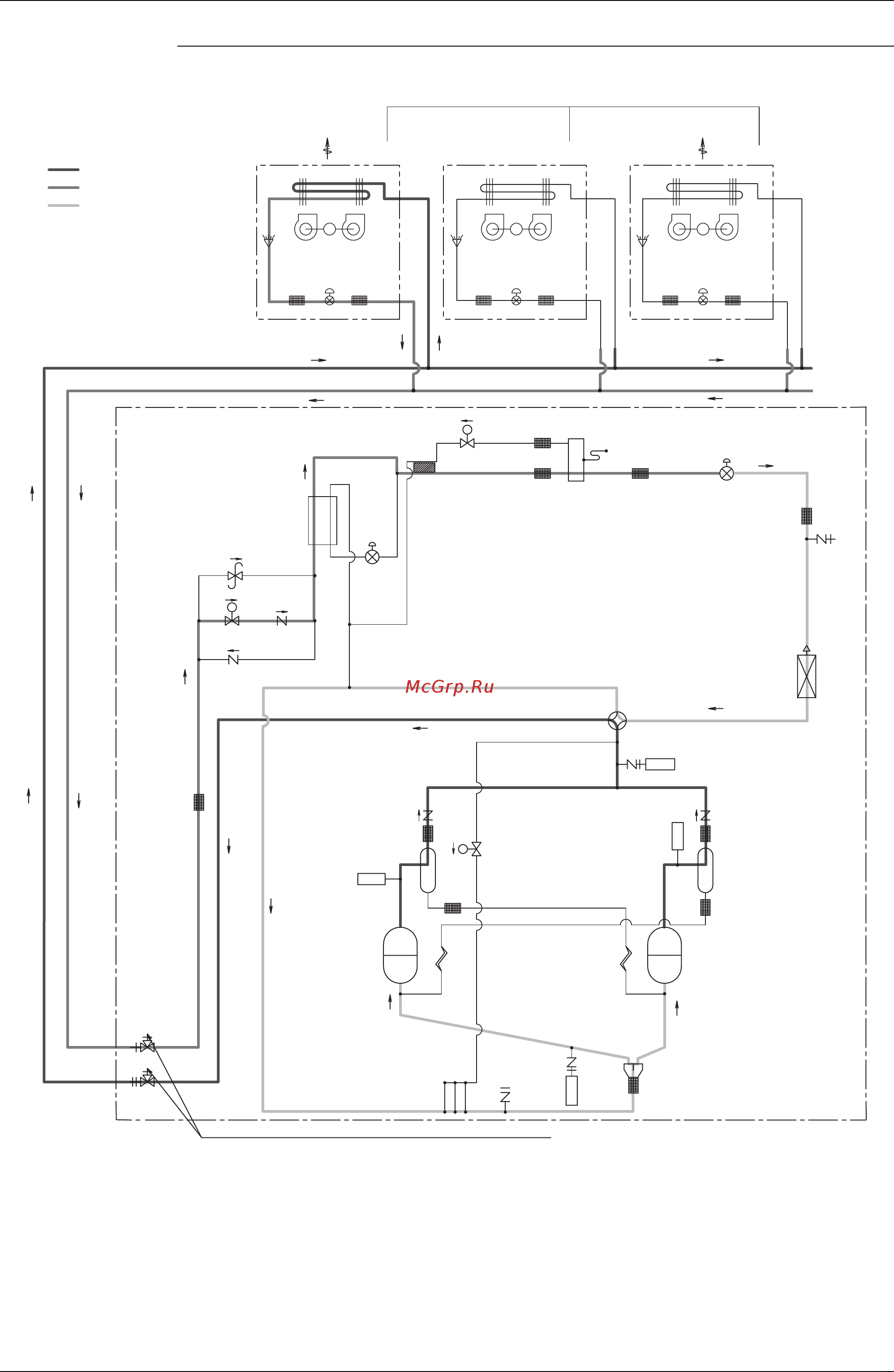

SiE39-407 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 67
Heating Operation
" OFF " " ON "" ON "
MM
Electronic
expansion
valve
Filter
EV:224pls EV:224pls
FanFan
Indoor unit operation
Thermostat "OFF"
Indoor unit
FilterFilter
Heat exchanger
Fan OFF
Indoor unit
FilterFilter
Heat exchanger
Fan ON
Thermostat "ON"
Indoor unit
Heat exchanger
Electronic expansion valve
FilterFilter
Fan
Heat exchanger
pipe
Receiver
Solenoid
valve
Solenoid
valve
Check
valve
Check
valve
Check
valve
Solenoid
valve
Check
valve
Filter
Filter
Filter
Filter
Filter
Filter
FilterFilter
Electronic
expansion valve
Fusible plug
Electronic expansion valve Electronic expansion valve
Pressure regulating
valve
(check valve type)
High pressure
switch
High
pressure
switch
Compressor Compressor
Gauge port
Oil separator
Oil separator
Capillary tube
Capillary tube
4-way valve
High pressure
sensor
Low pressure
sensor
Stop valve (with service port on on-site piping side ø7.9 flare connection)
Fan LL
SV
SENPH
SENPL
HPS
HPS
STD1
INV
SV
EV:Nomal
control
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
M
SV
