Wiring Diagrams for Reference SiE39-407
288 Appendix

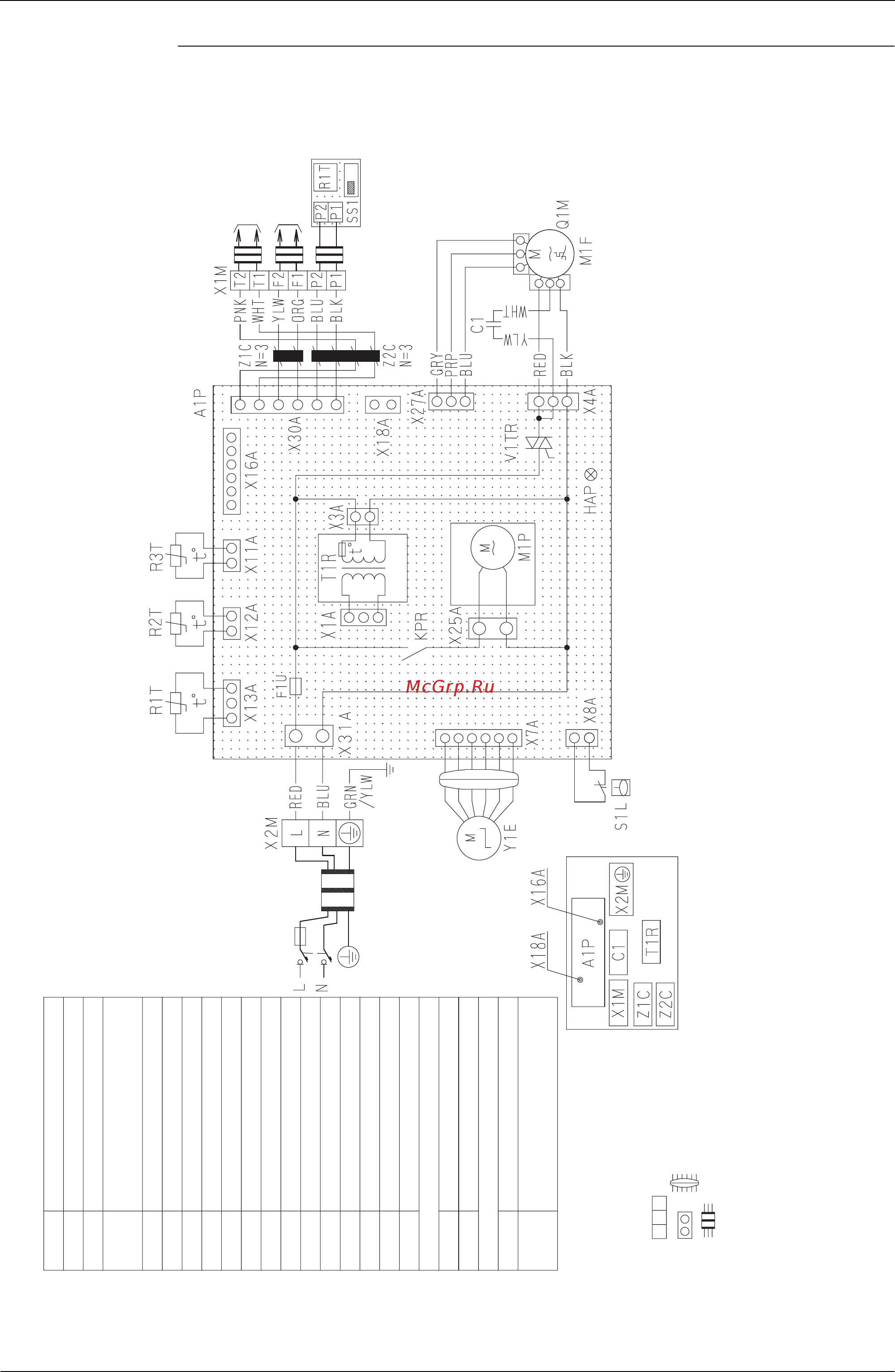

FXDQ20N / 25N / 32N / 40N / 50N / 63NVE
3D045500A
A1P
C1
F1U
HAP
KPR
M1F
M1P
Q1M
R1T
R2T
R3T
S1L
T1R
V1TR
X1M
X2M
Y1E
Z1C•Z2C
R1T
SS1
X16A
X18A
Printed circuit board
Capacitor (M1F)
Fuse (F5A, 250V)
Light emitting diode
(Service monitor-green)
Magnetic relay (M1F)
Motor (Indoor fan)
Motor (Drain pump)
Thermal protector (M1F embedded)
Thermistor (Air)
Thermistor (Coil-1)
Thermistor (Coil-2)
Float switch
Transformer (220V/22V)
Phase control circuit
Terminal block
Terminal block
Electronic expansion valve
Noise filter (Ferrite core)
Thermistor (Air)
Selector switch (Main/sub)
Connector (Adaptor for wiring)
Connector (Wiring adaptor for
electrical appendices)
Wired remote control
Connector for optional parts
POWER SUPPLY
220-240V
~
50Hz
220V
~
60Hz
Notes:
1. : Terminal
, : Connector
2. : Field wiring.
3. In case using central remote control, connect it to the unit in accordance with the attached installation manual.
4. Remote control model varies according to the combination system, confirm engineering materials and catalogs, etc. before connecting.
5. When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation man
ual attached the unit.
5. In case high E.S.P. operation, change over the wiring connection from X2A tot X3A.
6. Symbols shows as follows: RED: red, BLK: black, WHT: white, YLW: yellow, PRP: purple, GRY: gray, BLU: blue, PNK: pink, ORG: orange, GRN: green.
Note 5
Input from
outside
Transmission
wiring central
remote control
Note 3
Wired remote
control
Control box
