Basic Control SiE39-407
78 Function

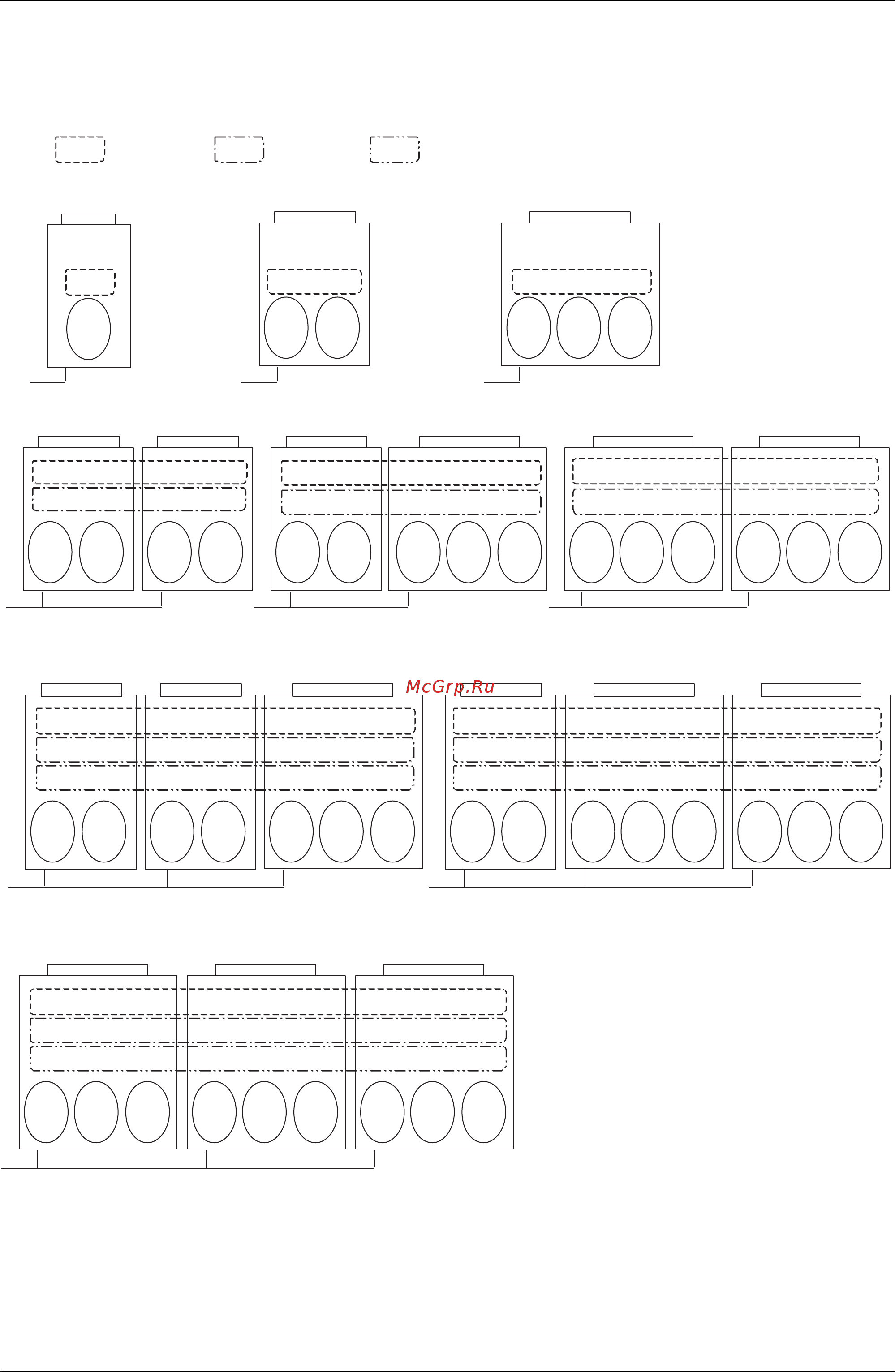

Operating Priority and Rotation of Compressors
*
• In the case of combination of 3 outdoor units, the above diagram shows master unit, slave unit 1, and slave unit 2
from left to right.
• Compressors may operate in any pattern other than those mentioned above according to the operating status.
RXYQ5MA
RXYQ18MA,20MA,22MA
RXYQ34MA,36MA,38MA
RXYQ46MA,48MA
RXYQ40MA,42MA,44MA
RXYQ24MA,26MA,28MA RXYQ30MA,32MA
RXYQ8MA,10MA,12MA RXYQ14MA,16MA
INV
No. 1
INV STD1
No. 1 No. 2
INV STD1 STD2
INV STD1
No. 1 No. 3
INV STD1
No. 2 No. 4
INV STD1
No. 1 No. 3
INV STD1 STD2
No. 2 No. 4 No. 5
No. 1 No. 2 No. 3
Pattern 1 Pattern 2 Pattern 3
No. 2 No. 4 No. 1 No. 3
No. 2 No. 4 No. 1 No. 3 No. 5
INV STD1
No. 1 No. 4
INV STD1 STD2
No. 3 No. 6 No. 7
No. 3 No. 6 No. 2 No. 5 No. 7
INV STD1
No. 2 No. 5
No. 1 No. 4
No. 2 No. 5 No. 1 No. 4 No. 7No. 3 No. 6
INV STD1
No. 1 No. 4
INV STD1 STD2
No. 3 No. 6
No. 2 No. 5
No. 3 No. 6 No. 8
No. 2 No. 5 No. 8
No. 1 No. 4 No. 7
INV STD1 STD2
No. 2 No. 5 No. 7
No. 1 No. 4 No. 7
No. 3 No. 6 No. 8
INV STD1 STD2
No. 2 No. 4 No. 6
No. 1 No. 3 No. 5
INV STD1 STD2
No. 1 No. 3 No. 5
No. 2 No. 4 No. 6
INV STD1 STD2
No. 3 No. 6 No. 9
No. 2 No. 5 No. 8
No. 1 No. 4 No. 7
INV STD1 STD2
No. 1 No. 4 No. 7
No. 3 No. 6 No. 9
No. 2 No. 5 No. 8
INV STD1 STD2
No. 2 No. 5 No. 8
No. 1 No. 4 No. 7
No. 3 No. 6 No. 9
Each compressor operates in the following order of priority.
In the case of multi-outdoor-unit system, each compressor operates in any of Pattern 1
through Pattern 3 according to the rotation of outdoor units.
INV: Inverter compressor
STD1: Standard compressor 1
STD2: Standard compressor 2
