SiE39-407 Wiring Diagrams for Reference
Appendix 297

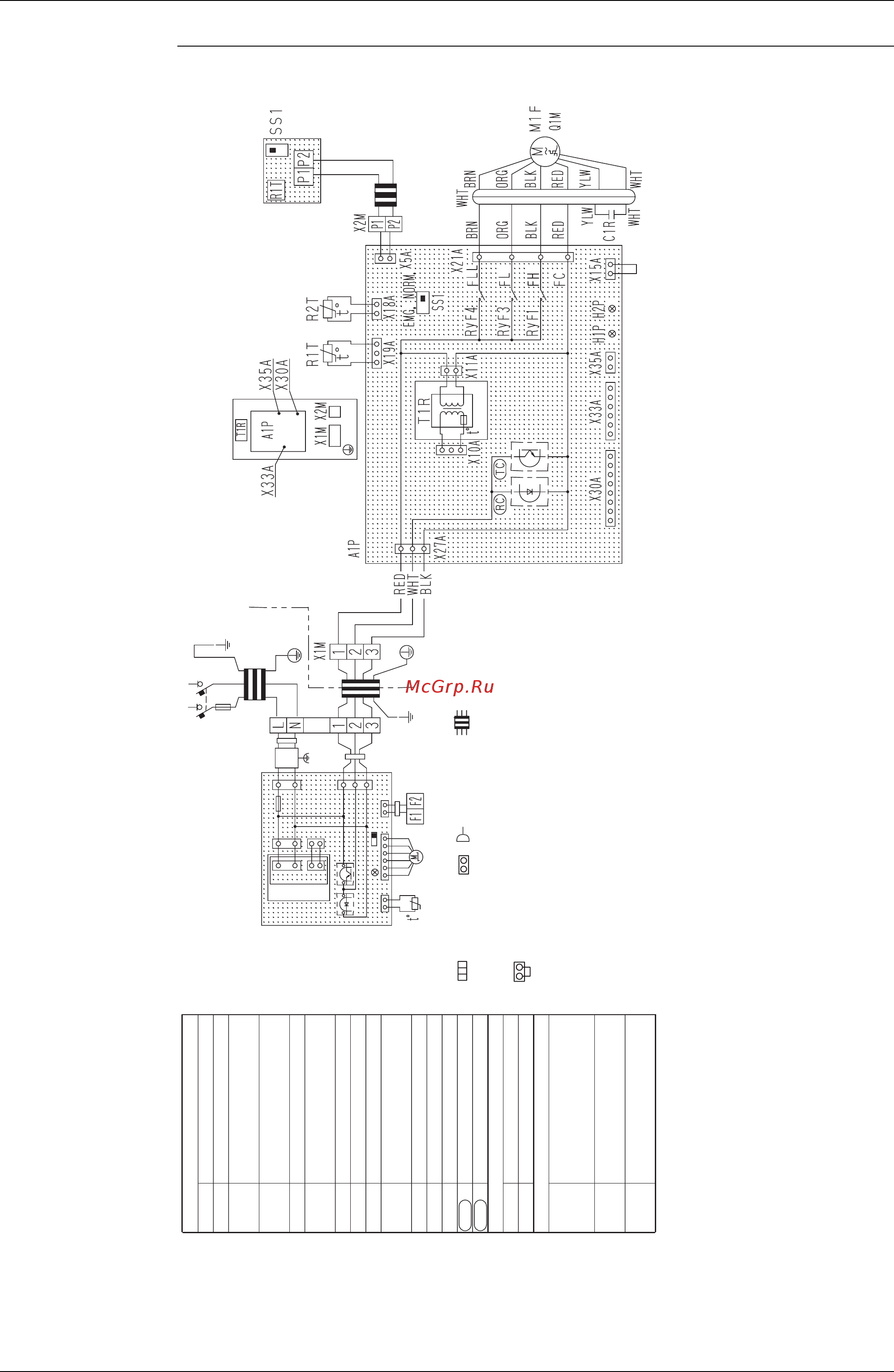

FXLQ20MH / 25MH / 32MH / 40MH / 50MHV1
3D046787A
A1P
C1R
H1R
H2P
M1T
Q1M
R1T
R2T
RyF1,3,4
SS1
T1R
X1M
X2M
RC
TC
R1T
SS1
X30A
X33A
X35A
Printed circuit board
Capacitor (M1F)
Light emitting diode
(Service monitor green)
Light emitting diode
(Service monitor green)
Motor (Indoor fan)
Thermo switch (135°)
(M1F embedded)
Thermistor (Air)
Thermistor (Coil)
Magnetic relay (M1F)
Selector switch
(Emergency)
Transformer (220-240V/22V)
Terminal block (Power)
Terminal block (Control)
Signal receiver circuit
Signal transmission circuit
Thermistor (Air)
Selector switch (Ma
in/sub)
Connector
(interface adaptor for sky air
series)
Connector
(Adaptor for wiring)
Connector
(Group control adaptor)
Indoor unit
Wired remote control
Connector for optional parts
POWER SUPPLY
220-240V
~
50
Notes:
1. : Terminal, , : Connector, : Field wiring.
2. Remote control model varies according to the combination
system, confirm engineering materials and catalogs, etc. before
connecting.
3. Shows short circuit connector.
5. Symbols show as follows: RED: red, WHT: white, BLK: black,
ORG: orange, BRN: brown, BLU: blue, YLW: yellow.
6. Confirm the method of setting the selector switch (SS1, SS2) of
wired remote control and infrared remote control by installation
man
ual and engineering data, etc.
7. The BEV unit shows an outline. Please refer to a wiring diagram of
BEV unit pasting in detail.
8. In case using central remote control, connect it to the unit in accordance with the
attached installation manual.
Wired remote control
(Optional accessory)
Control box
BEV unit
Note 6
