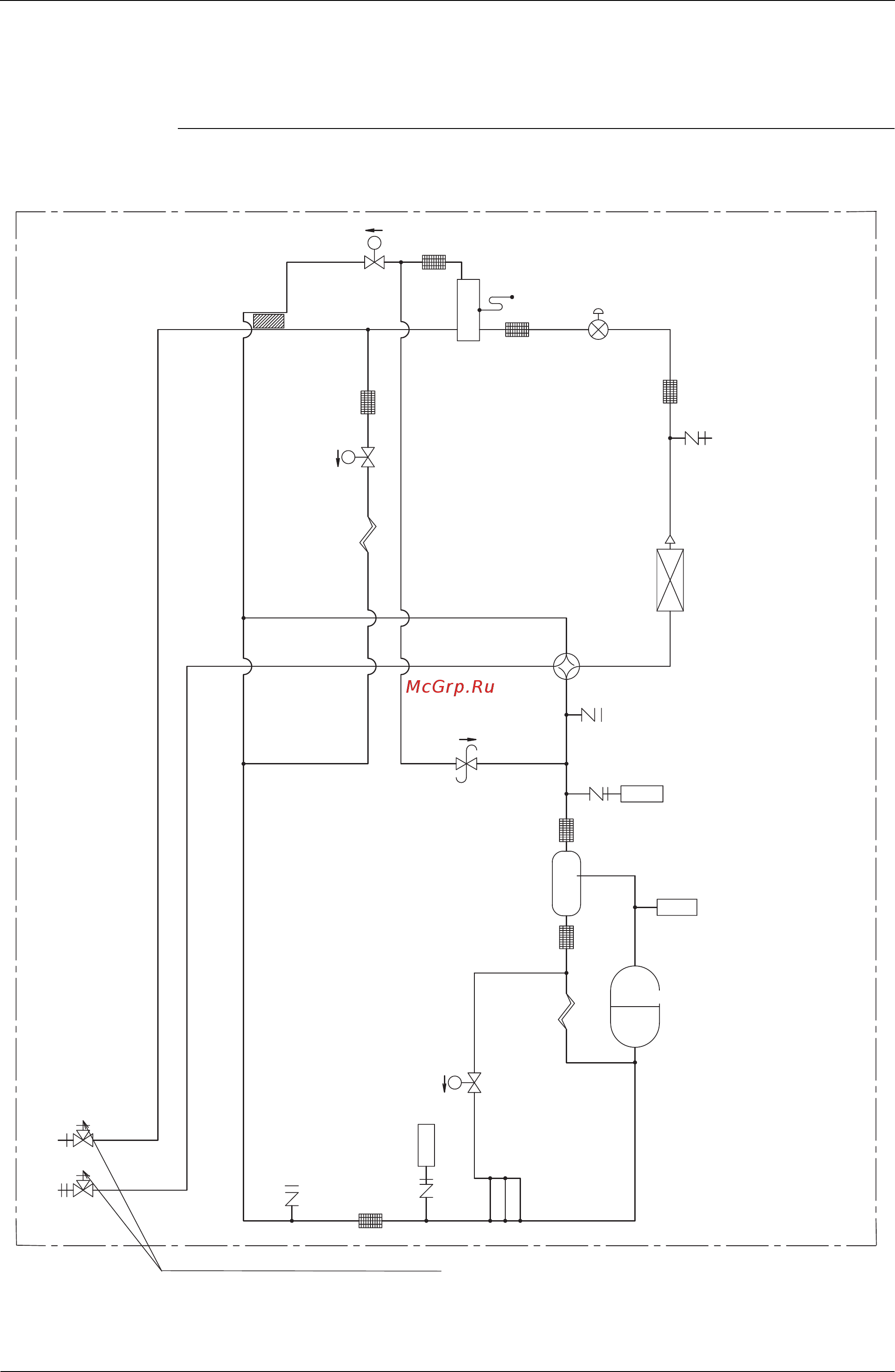

Piping Diagrams SiE39-407
268 Appendix
1. Piping Diagrams
1.1 Outdoor Unit
RXYQ5MAY1
3D048203
Heat
exchanger pipe
Solenoid
valve
Filter
Filter
Filter Filter
Filter
Filter
Filter
Fusible plug
Solenoid
valve
Electronic
expansion valve
Capillary tube
Capillary tube
Receiver
Four way
valve
Gauge port
Pressure
regulating valve
(check valve type)
High pressure
sensor
High pressure
switch
SENPH
HPS
Oil
separator
Compressor
INV
SV
SV
SV
Gauge port
SENPL
Low pressure
sensor
Stop valve (with service port ø 7.9 mm flare connection)
