![Daikin RXYQ14MAY1 [132/352] Outdoor unit pc board layout](/img/pdf.png)
Daikin RXYQ14MAY1 [132/352] Outdoor unit pc board layout
![Daikin RXYQ8MAY1 [132/352] Outdoor unit pc board layout](/views2/1712502/page132/bg84.png)
SiE39-407 Outdoor Unit PC Board Layout
Test Operation 121

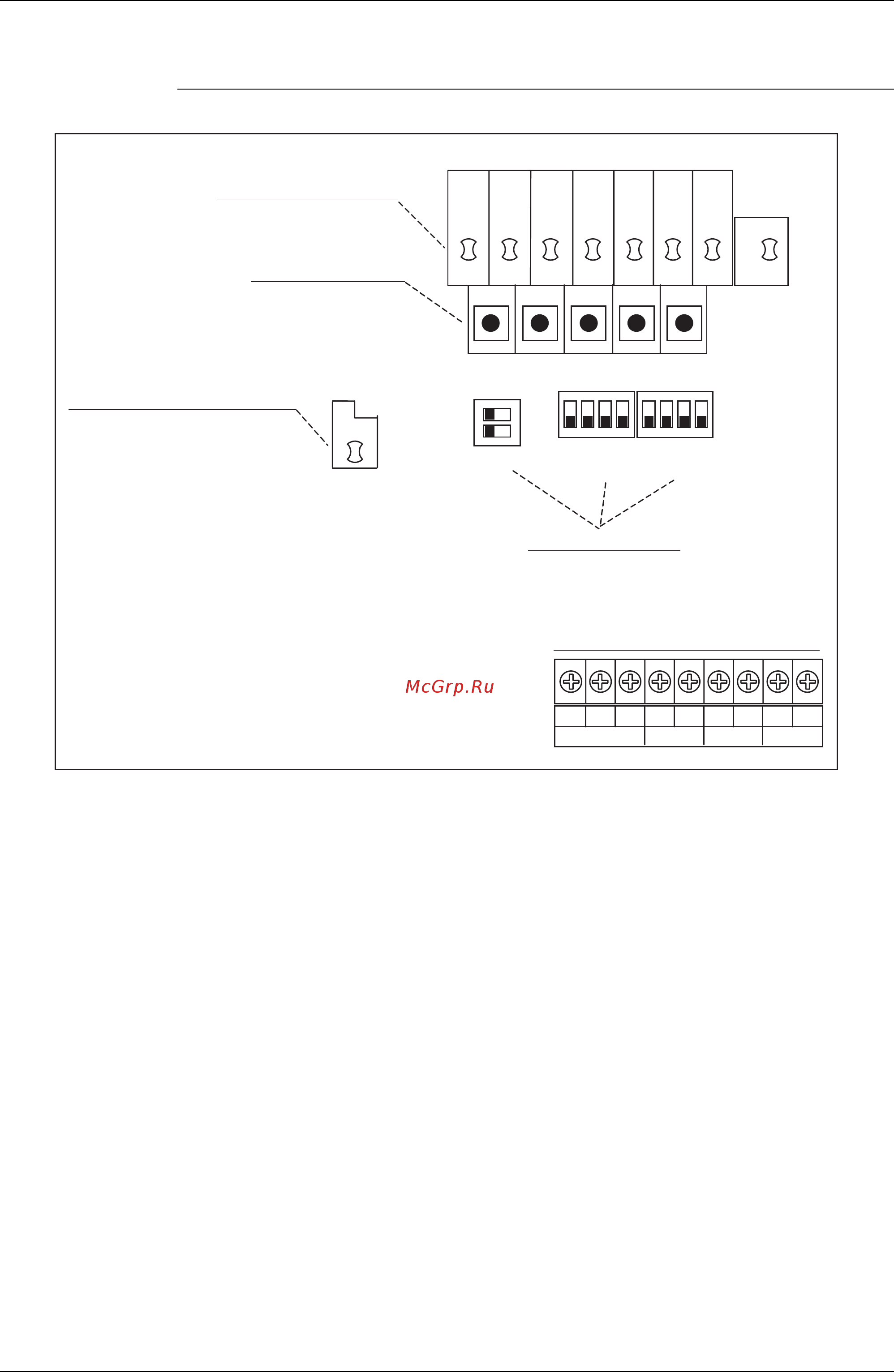

2. Outdoor Unit PC Board Layout
Outdoor unit PC board
MODE SET RETURN TESTRESET
1 2 3 4
1
2
1 2 3 4
HAP
(V3054)
(2) Set mode display (LED)
(3) Mode setting switch
(1) Microcomputer normal monitor
H1P
BS1BS2BS3 BS4BS5
H2P H3P H4P H5P H6P H7P H8P
DS3
ABCF1F2F1F2Q1Q2
DS1
DS2
(4) Local setting switch
Connection terminal for transmission use
Switch cool/heat
Indoor-
Outdoor
Outdoor-
Outdoor
Multi outdoor
(1) Microcomputer normal monitor
This monitor blinks while in normal operation, and turns on or off when a malfunction occurs.
(2) Set mode display (LED)
LEDs display mode according to the setting.
(3) Mode setting switch
Used to change mode.
(4) Local setting switch
Used to make local settings.
