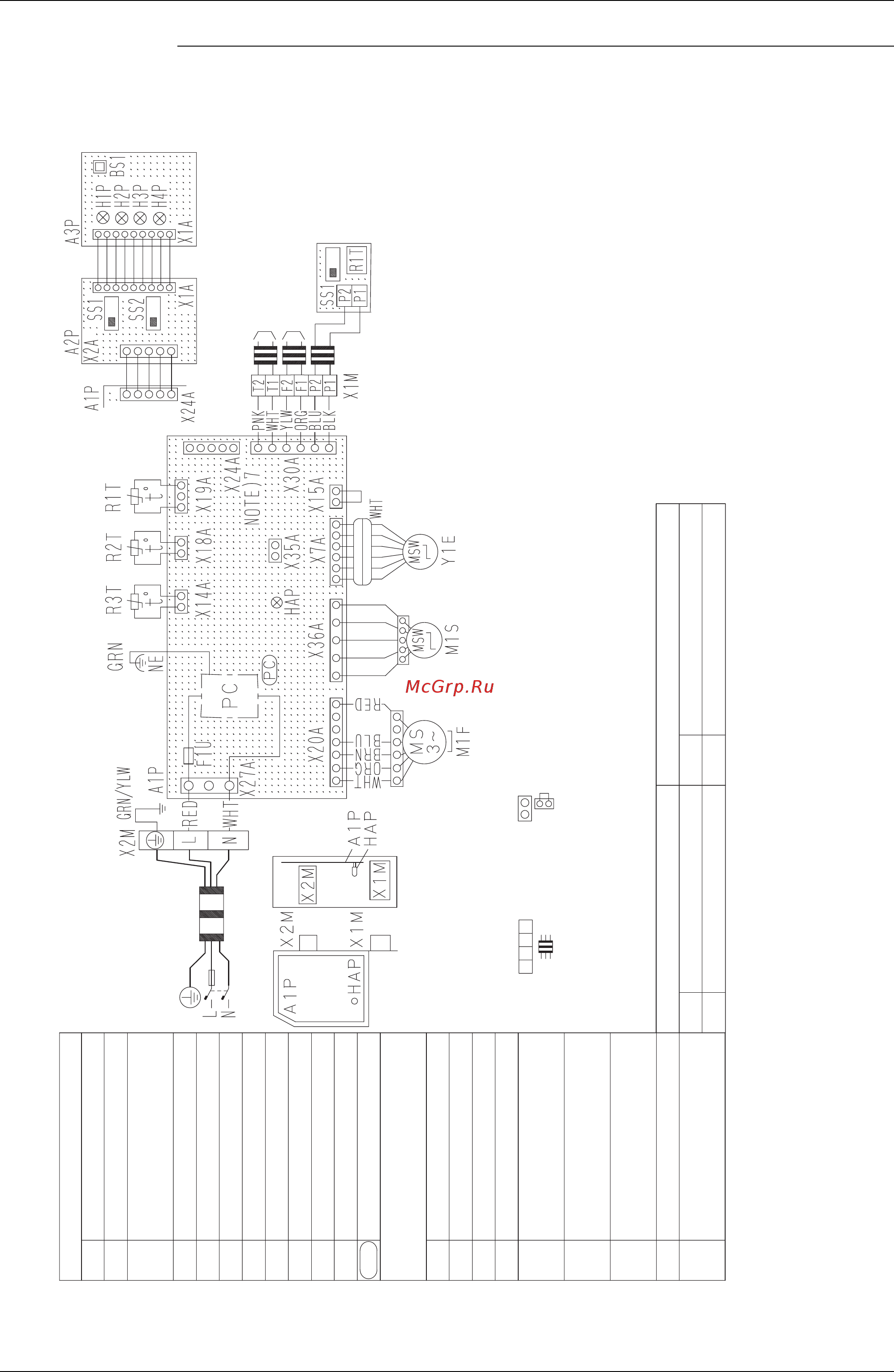

SiE39-407 Wiring Diagrams for Reference
Appendix 293
FXAQ20M / 25M / 32MVE / 40M / 50M / 63MVE
3D034206A
A1P
F1U
HAP
M1S
M1F
R1T
R2T
R3T
X1M
X2M
Y1E
PC
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
Printed circuit board
Fuse (훾, 3A, 250V)
Light emitting diode
(Service monitor green)
Motor (Swing flap)
Motor (Indoor fan)
Thermistor (Air)
Thermistor (Coil liquid pipe)
Thermistor (Coil gas pipe)
Terminal block (Control)
Terminal block (Power)
Electronic expansion valve
Power circuit
Printed circuit board
Printed circuit board
Push button (On/off)
Light emitting diode (On-red)
Light emitting diode
(Timer-green)
Light emitting diode
(Filter sign-red)
Light emitting diode
(Defrost-orange)
Selector switch (Main/sub)
Selector switch
(Wireless address set)
R1T
SS1
Thermistor (Air)
Selector switch (Main/sub)
X15A
X35A
Connector (Float switch)
Connector (Group control adaptor)
Indoor unit
Receiver/Display unit (Attached to
infrared remote control)
Wired remote control Connector for optional parts
POWER SUPPLY
220-240V
~
50Hz
220V
~
60Hz
Notes:
1. : Terminal, : Connector,
: Field wiring, : Connector.
2. In cas
e using central remote control, connect it to the unit in
accordance with the attached instruction manual.
3. Symbols shows as follows: RED: red, WHT: white, GRN: green,
PNK: pink, YLW: yellow, BLK: black, ORG: orange, BRN: brown,
BLU: blue.
4. When connecting the input wires from outside, forced
off or on/off control operation can be selected by
remote control. In details, refer to the installation
manual attached the unit.
5. Remote control model varies a
ccording to the
combination system, confirm engineering data and
catalogs, etc. before connecting.
6. Confirm the method of setting the selector switch
(SS1, SS2) of wired remote control and infrared
remote control by installation manual and engineer-
ing data, etc.
7. X24A is connected when the wiress remote control
kit is being used.
Note 4
Input from outside
Transmission wiring central
remote control
Note 2
Wired remote
control
Note 7
Side
Front
Control box
(Indoor unit)
Receiver/display unit
(Infrared remote control)
