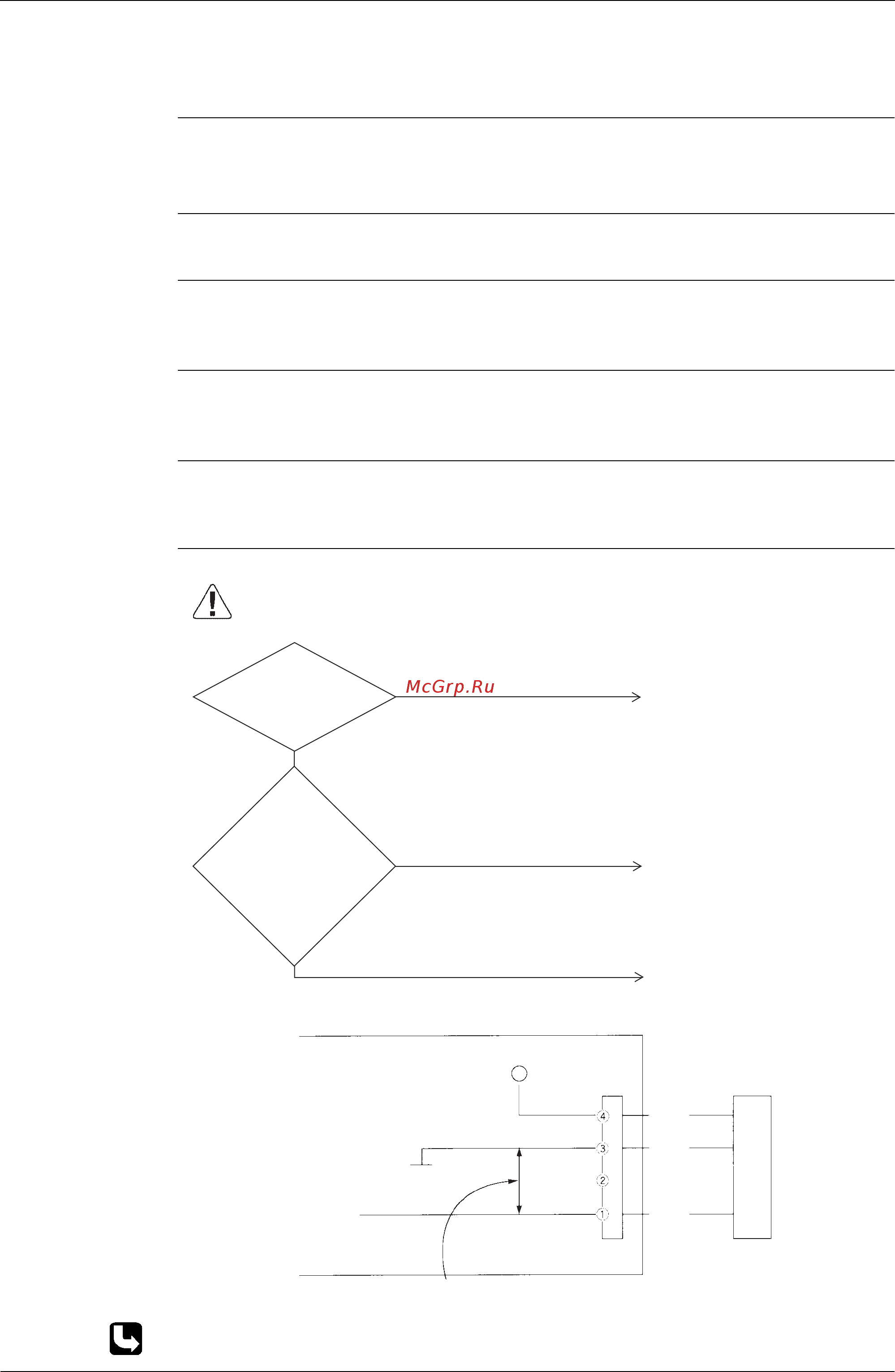

Troubleshooting by Indication on the Remote Controller SiE39-407
216 Troubleshooting
3.30 “JA” Outdoor Unit: Malfunction of Discharge Pipe Pressure
Sensor
Remote
Controller
Display
JA
Applicable
Models
RXYQ5MA~48MA
Method of
Malfunction
Detection
Malfunction is detected from the pressure detected by the high pressure sensor.
Malfunction
Decision
Conditions
When the discharge pipe pressure sensor is short circuit or open circuit.
Supposed
Causes
Defect of high pressure sensor system
Connection of low pressure sensor with wrong connection.
Defect of outdoor unit PC board.
Troubleshooting
∗1: Voltage measurement point
∗2: Refer to pressure sensor, pressure / voltage characteristics table on P321.
(V2806)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
The
relationship
between the ∗1
VH and high pressure
is normal (see ∗2) when
voltage is measured between
X46A pins (1) and (3) of
outdoor unit PC
board (A1P)
(see ∗1).
Replace the high pressure sensor.
Connect the high pressure sensor
and turn on again.
NO
NO
Replace outdoor unit PC board
A1P.
YES
YES
The high
pressure s
ensor is
connected to X46A of
outdoor unit PC
board (A1P).
Outdoor unit PC board A2P
*2 Measure DC voltage here.
Microcomputer
A/D input
GND
+5V
High pressure sensor
Red
(V2807)
Black
White
X46A
