Field Setting SiE39-407
154 Test Operation

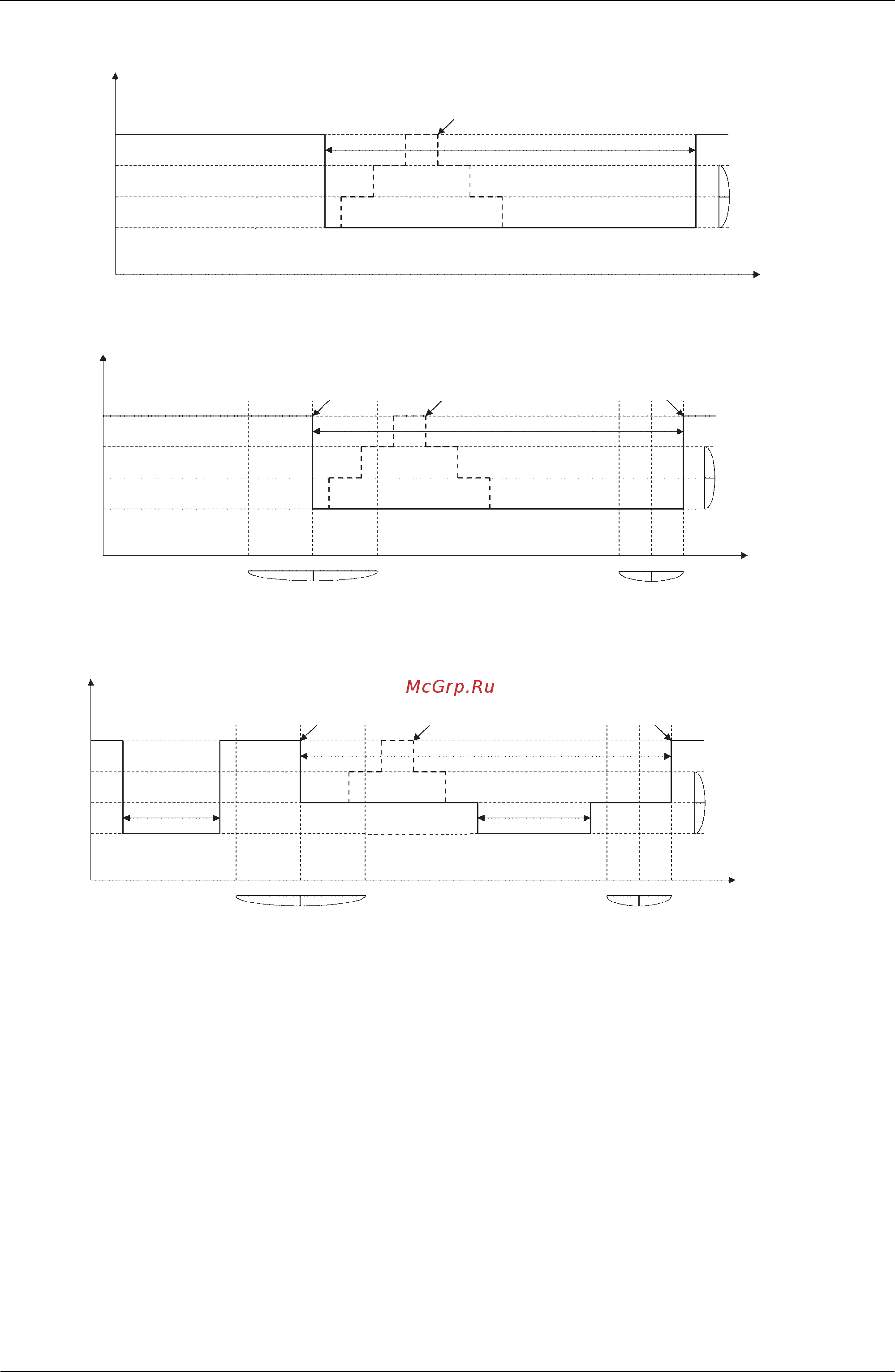

Image of operation in the case of A
Image of operation in the case of B
Image of operation in the case of A, B
Operation sound
Rated operation
sound
Operation sound of
mode 1
Operation sound of
mode 2
Operation sound of
mode 3
Low noise of approx. 2 to 3 dB
(The power consumption may
be increased by about 10%.)
Low noise of approx. 3 to 5 dB
(The power consumption may
be increased by about 20%.)
Low noise of approx. 5 to 8 dB
(The power consumption may
be increased by about 30%.)
Low noise mode instructing
(V3078)
If capacity precedence is set in
“Capacity precedence setting”,
the fan speed will be increased
according to the load of air
conditioning when load is heavier.
Operation sound during low
noise mode is instructed can
be set with “External low
noise level setting”
(Factory setting is “Mode 2”.)
Operation sound level set with “External low noise setting”
Operation sound
Time set with “Night-time low noise start setting”
PM 8:00
Set with “Night-time low noise start setting”.
(Factory setting is “PM 10:00”.)
PM 10:00 PM 0:00
AM 6:00
Set with “Night-time low noise end setting”.
(Factory setting is “AM 8:00”.)
AM 7:00 AM 8:00
Rated operation
sound
Operation sound
of mode 1
Operation sound
of mode 2
Operation sound
of mode 3
(V3079)
If capacity precedence is set in “Capacity
precedence setting”, the fan speed will be
increased according to the load of air
conditioning when load is heavier.
Operation sound during
night-time low noise mode
is instructed can be set with
“Night-time low noise level
setting”.
(Factory setting is “OFF”.)
Time s
et with “Night-time low noise end setting”
Operation sound level set with
“Night-time low noise setting”
Night-time
Oper
ation sound
Time set with “Night-time low noise start setting”
PM 8:00
Set with “Night-time low noise start setting”.
(Factory setting is “PM 10:00”.)
PM 10:00 PM 0:00
AM 6:00
Set with “Night-time low noise end setting”.
(Factory setting is “AM 8:00”.)
AM 7:00 AM 8:00
Rated operation
sound
Operation sound
of mode 1
Operation sound
of mode 2
Operation sound
of mode 3
(V3080)
If capacity precedence is set in “Capacity
precedence setting”, the fan speed will be
increased according to the load of air
conditioning when load is heavier.
Operation sound during low noise
mode is instructed can be set with
“External low noise level setting”.
(Factory setting is “Mode 2”
.)
Operation sound during night-time
low noise mode is instructed can
be set with “Night-time low noise
level setting”.
(Factory setting is “OFF”.)
When external low noise
instruction is received during
the operation with night-time
low noise mode,
Mode 2 precedes Mode 1 and
Mode 3 precedes Mode 2.
Time set with “Night-time low noise end setting”
* Operation sound set with
“External low noise s
etting”
* Operation sound
level set with
“Night-time low noise
setting”
* Night-time
* Low noise mode
instructing
Low noise mode instructing
Operation sound set with
“External low noise setting”
