SiE39-407 Field Setting
Test Operation 139
Setting by pushbutton switches
The following settings are made by pushbutton switches on PC board.
In case of multi-outdoor unit system, various items should be set with the master unit.
(Setting with the slave unit is disabled.)
The master unit and slave unit can be discriminated with the LED indication as shown below.
(Factory setting)
There are the following three setting modes.
c Setting mode 1 (H1P off)
Initial status (when normal) : Used to select the cool/heat setting. Also indicates during
“abnormal”, “low noise control” and “demand control”.
d Setting mode 2 (H1P on)
Used to modify the operating status and to set program addresses, etc. Usually used in
servicing the system.
e Monitor mode (H1P blinks)
Used to check the program made in Setting mode 2.

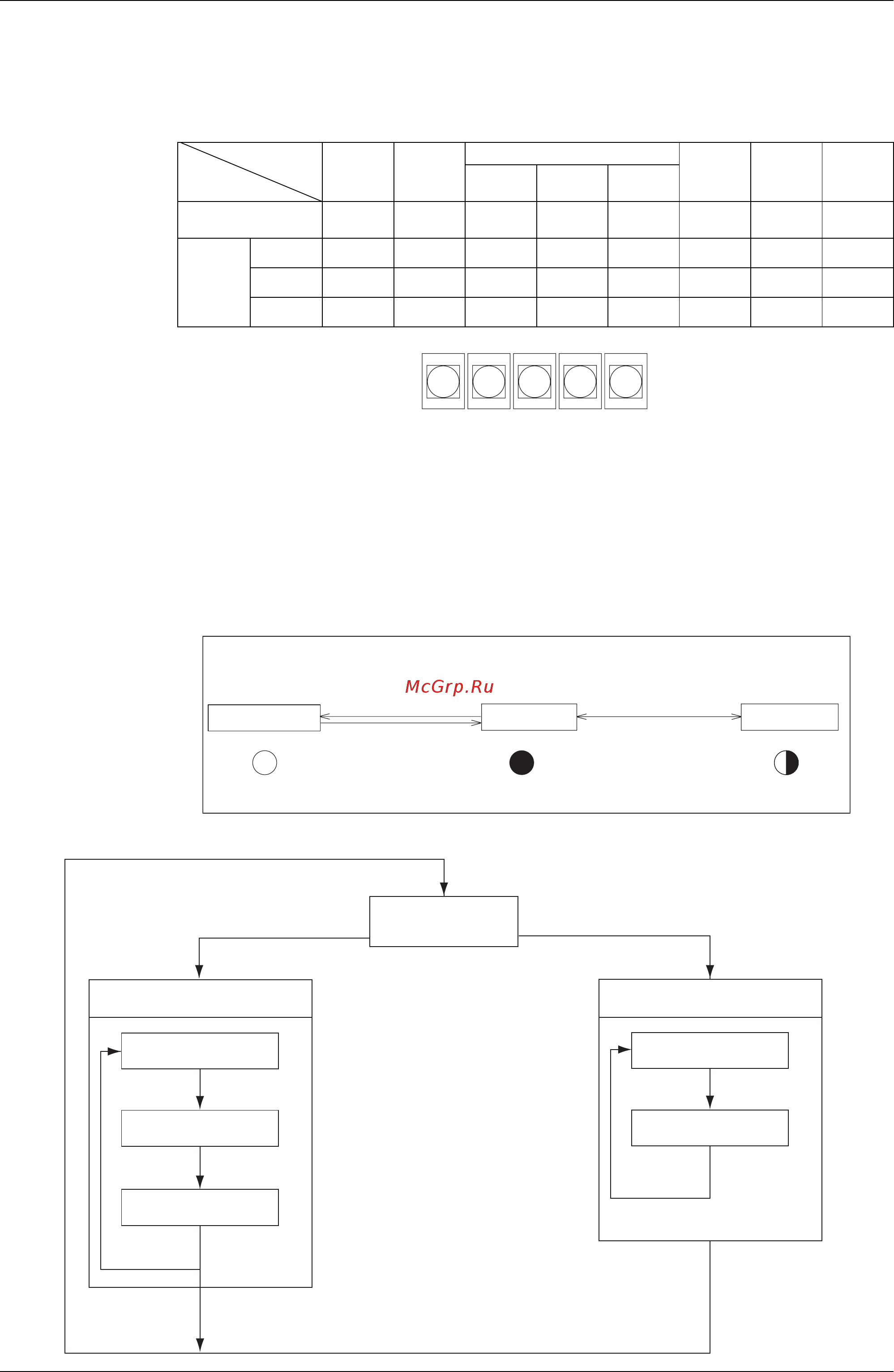

Mode changing procedure
Mode changing procedure
LED INDICATION
Page
H1P
Preparation
alarm
H2P
COOL/HEAT select
Low
noise
H6P
Demand
H7P
Mult
H8P
Individual
H3P
Batch master
H4P
Batch slave
H5P
Single-outdoor-unit
system
77877777
Outdoor-
multi
system
Master
77877778
Slave 1
77777779
Slave 2
77777777
BS1
MODE
BS2
SET
BS3
RETURN
BS4
TEST
BS5
RESET
(V2760)
Setting mode 1
Monitor mode
H1P
Blinking
MODE MODE
Off
H1P
Setting mode 2
MODE
On
H1P
Push and hold the BS1
(MODE button) for 5 seconds.
Push the BS1(MODE button) one time.
(Normal)
(V2761)
Push the BS1 (MODE button)
one time.
Using the MODE button, the modes can be changed as follows.
Check item selection (Set)
Contents display
Monitor mode
Setting item selection (Set)
Setting mode 2
(Set): Select mode with BS2 (SET button) in each selection step.
Press BS1(MODE button).
Press BS1 (MODE button) for more than 5 sec.
(V2762)
Press BS3
(RETURN button).
Press BS3
(RETURN button).
Press BS3
(RETURN button).
Press BS1
(MODE button).
Setting condition
selection (Set)
Setting condition
(Contents) display
Setting mode 1
(Initial condition)
Press BS3
(RETURN button).
Press BS3
(RETURN button).
Press BS1
(MODE button).
