Planet SG-500 [101/319] Script

SG-500 VPN Security Gateway User’s Manual

- 96 -

4.13 Script

Restrict the Internal Users to access to Script file of Website

STEP 1﹒Select the following data in Script of Content Blocking function:

 Select Popup Blocking

 Select ActiveX Blocking

 Select Java Blocking

 Select Cookies Blocking

 Click OK

 Complete the setting of Script Blocking

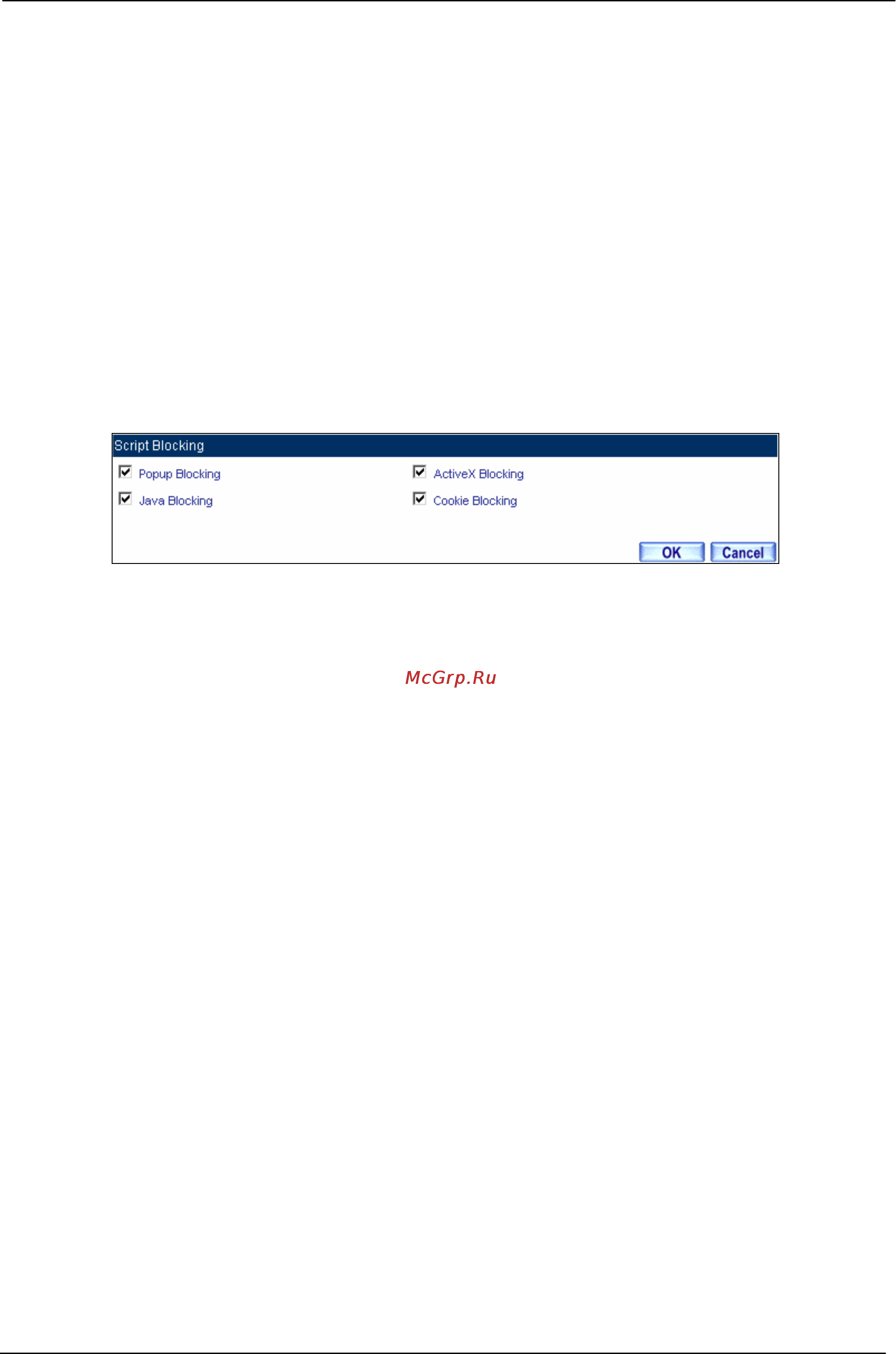

Script Blocking Web UI
