Planet SG-500 [82/319] Example

SG-500 VPN Security Gateway User’s Manual

- 77 -

4.8 Example

Setting a policy that can restrict the user’s downstream and upstream

bandwidth

STEP 1﹒Enter the following settings in QoS:

 Click New Entry

 Name: The name of the QoS you want to configure.

 Enter the bandwidth in G. Bandwidth, M. Bandwidth

 Select QoS Priority

 Click OK

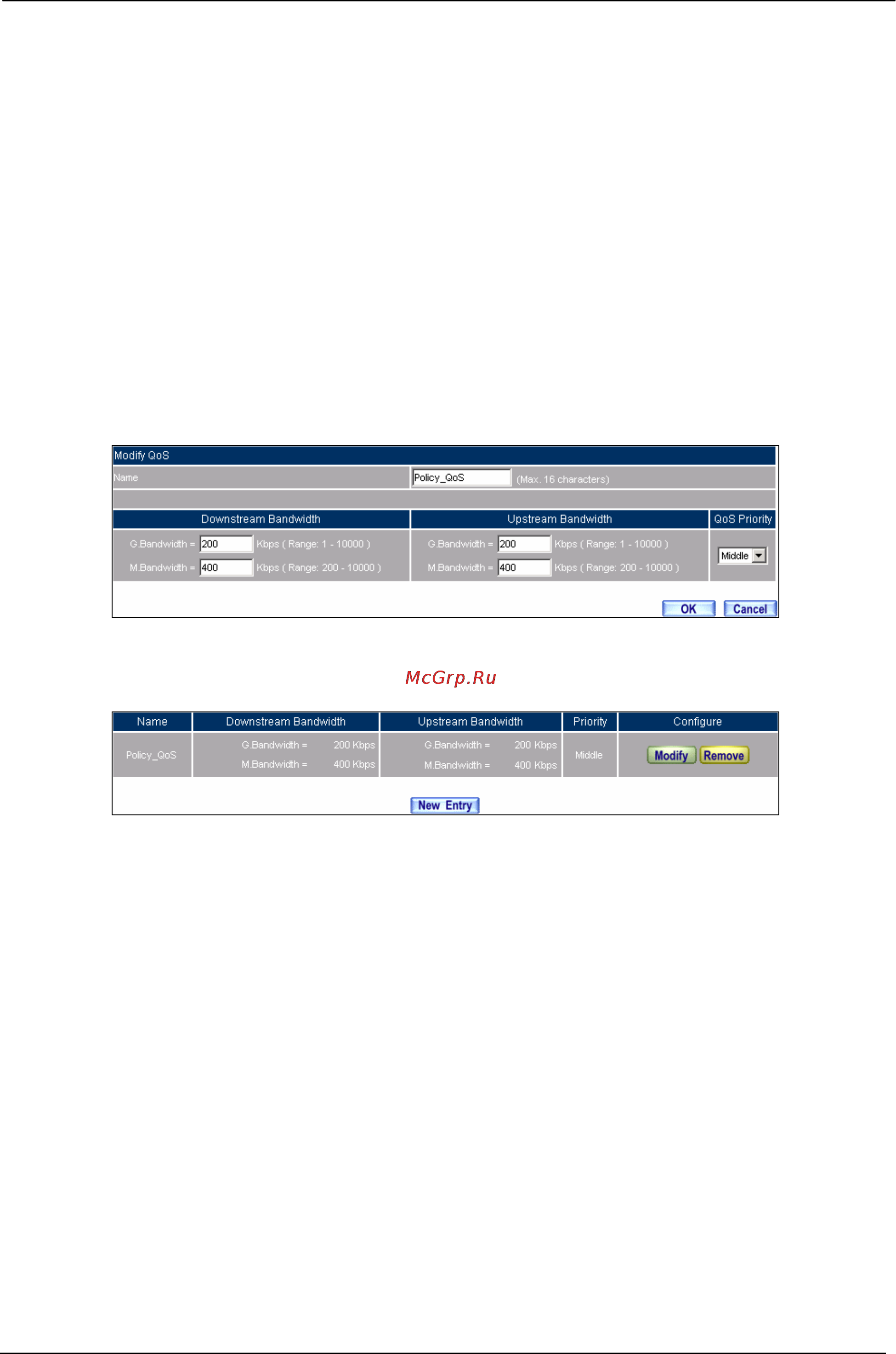

QoS Web UI Setting

Complete the QoS Setting
