SG-500 VPN Security Gateway User’s Manual

- 63 -

4.4 Custom

Allow external user to communicate with internal user by VoIP through policy.

(VoIP Port: TCP 1720, TCP 15328-15333, UDP 15328-15333)

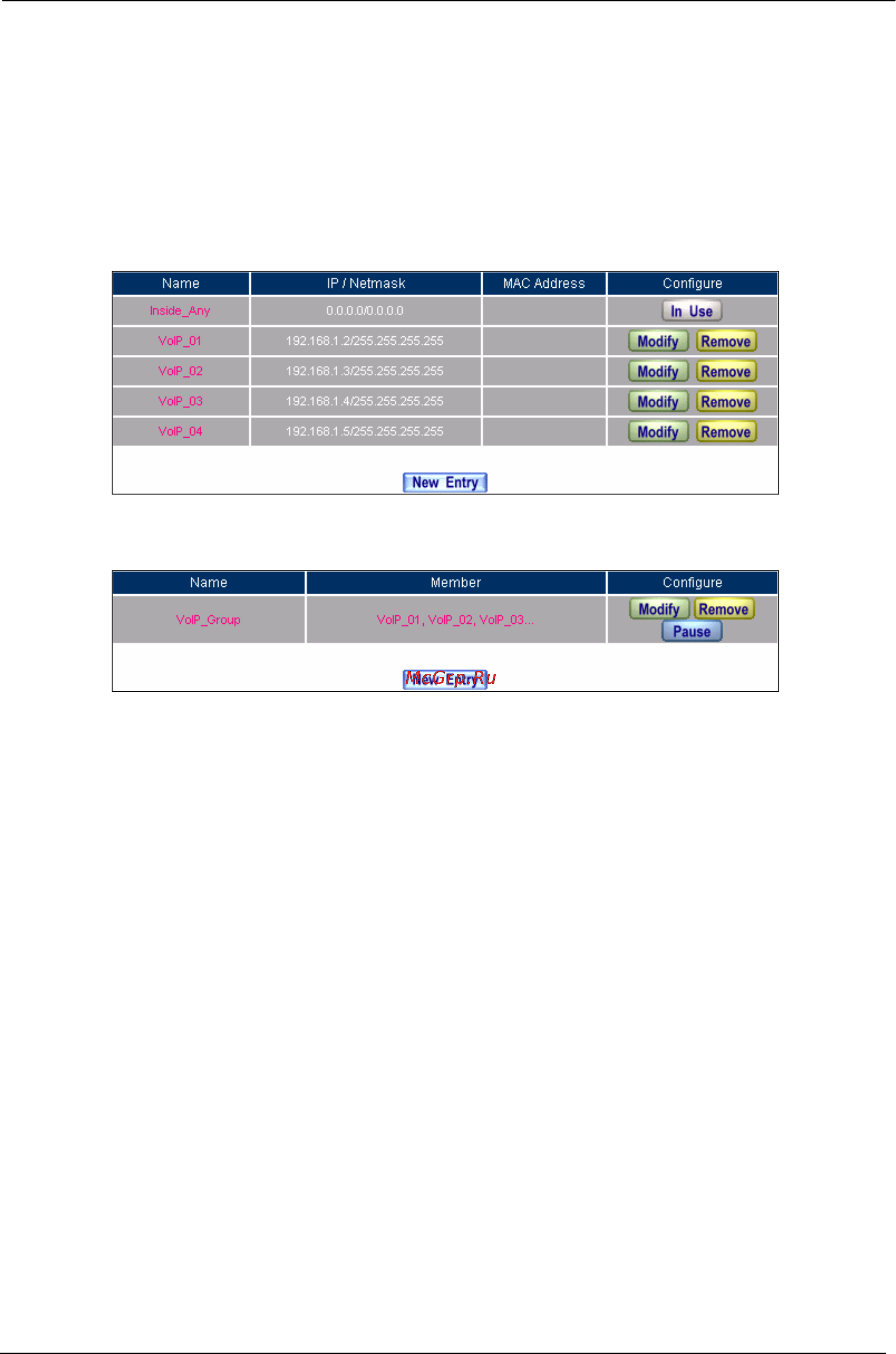

STEP 1﹒Set LAN and LAN Group in Address function as follows:

Setting LAN Address Book Web UI

Setting LAN Group Address Book Web UI
