SG-500 VPN Security Gateway User’s Manual
- 64 -

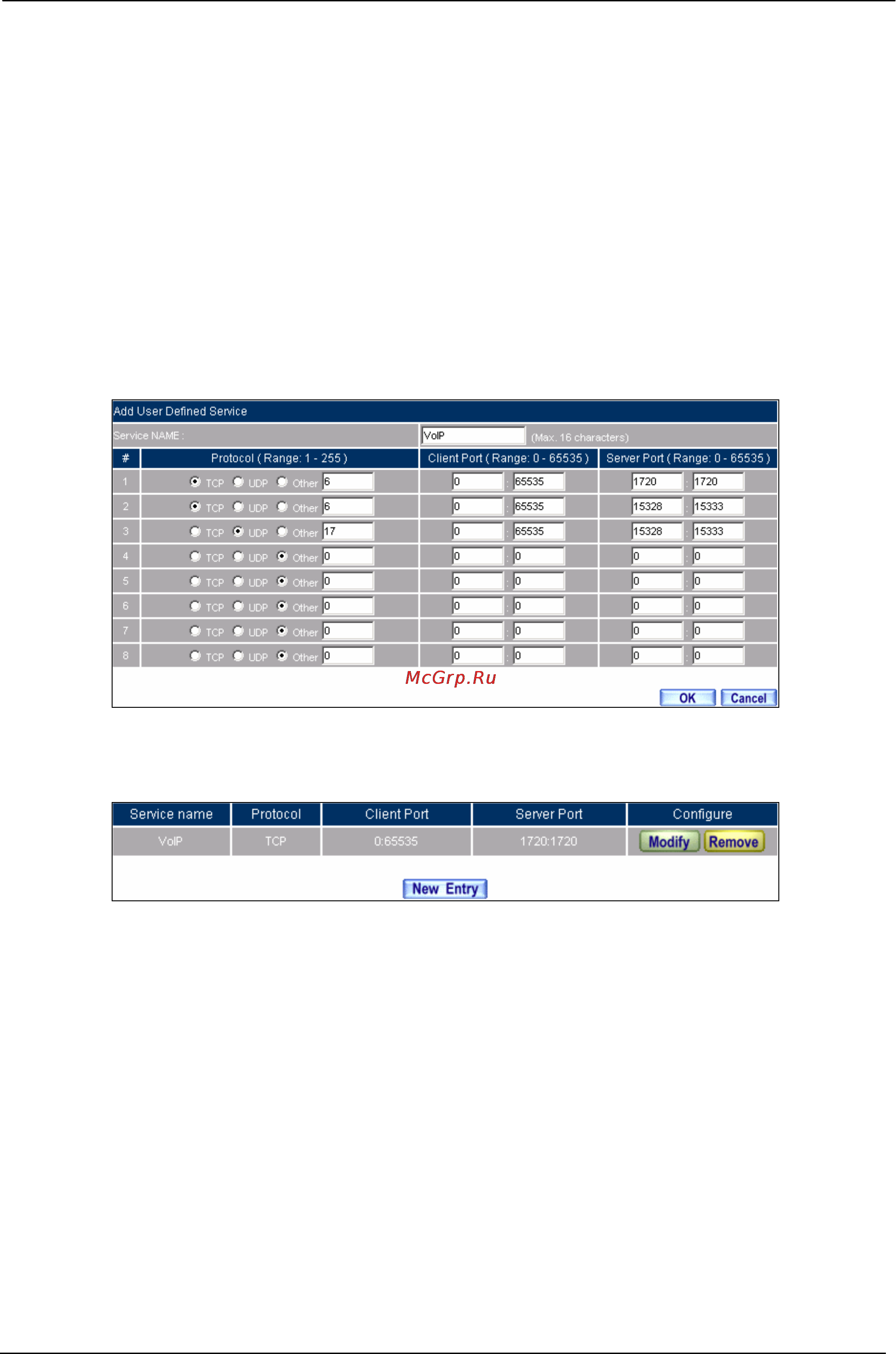

STEP 2﹒Enter the following setting in Custom of Service function:
Click New Entry
Service Name: Enter the preset name VoIP
Protocol#1 select TCP, need not to change the Client Port, and set the Server Port
as: 1720:1720
Protocol#2 select TCP, need not to change the Client Port, and set the Server Port
as: 15328:15333
Protocol#3 select UDP, need not to change the Client Port, and set the Server Port
as: 15328:15333
Click OK
Add User Define Service
Complete the Setting of User Define Service of VoIP
